D-Link DSL-2600U User Guide

Web Configuration
D-Link DSL-2600U User Manual
51
Routing

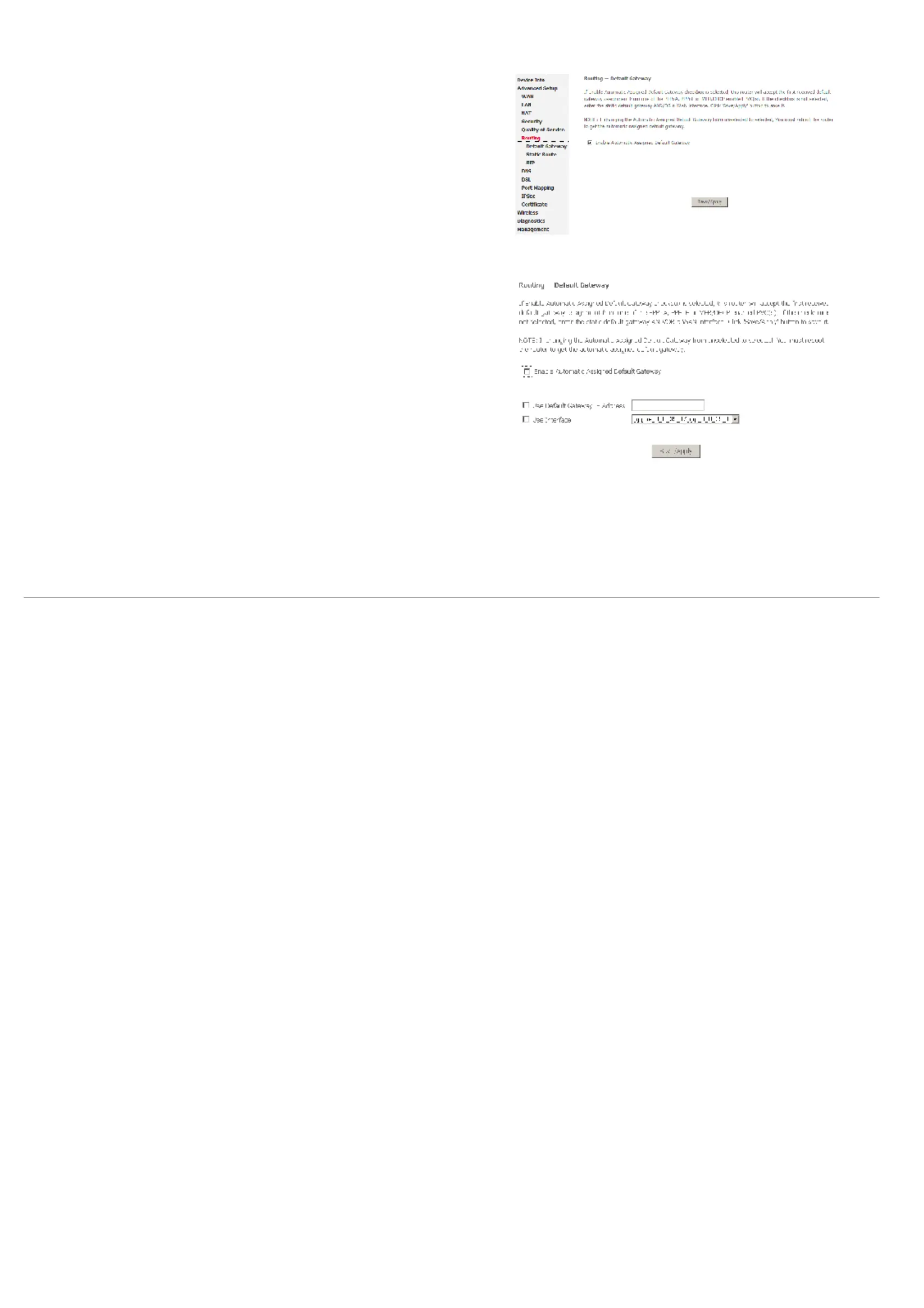

Click Routing and the following page appears.
Routing - Default Gateway
In this page, you can modify the default gateway settings.
If you select Enable Automatic Assigned Default Gateway, this router can accept the first
received default gateway assignment from one of the PPPoA, PPPoE or MER/DHCP
enabled PVC(s). If the check box is not selected, you need to enter the static default
gateway and/or a WAN interface. Then, click Save/Apply.
Note: If the Automatic Assigned Default Gateway check box is changed from deselected to
selected, you need to reboot the router to obtain the automatic assigned default
gateway.

D-Link DSL-2600U Specifications

Power

input voltage	100V-240V
input current	0.6A
input frequency	50 Hz - 60 Hz
output voltage	12V
output current	1A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps
IEEE 802.11b wireless transfer rates	11, 5.5, 2, and 1Mbps
IEEE 802.11g wireless transfer rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Interfaces

ADSL interface connector	RJ-11
LAN interface port	RJ-45
LAN interface standard	10/100BASE-T Ethernet
