D-Link DSL-2600U User Guide

Product Overview
D-Link DSL-2600U User Manual
4

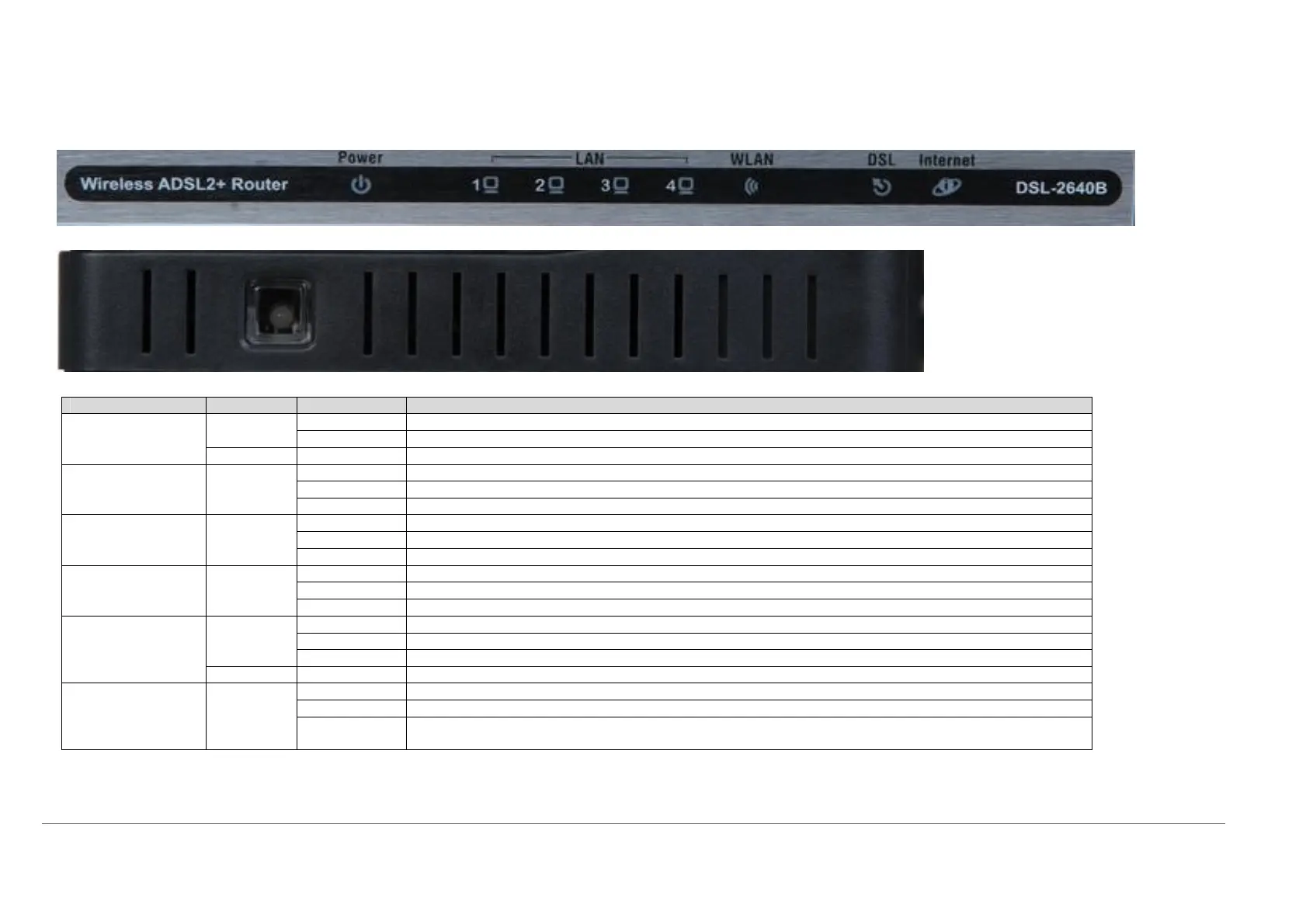

LED Indicators
Front Panel
Side Panel
LED Color Status Description
Off Power not supplied.
Green
On Power supplied.
Power
Red On Not bootable or device is malfunction.
Off No LAN link.
Blink Data is being transmitted through the LAN interface.
LAN 1 Green
On LAN link is established and active.
Off WLAN is disabled.
Blink WLAN traffic is flowing.
WLAN Green
On WLAN link is established.
Off DSL line is disconnected.
Blink DSL line is training.
DSL Green
On DSL line is connected.
Off The device is under the Bridge mode, DSL connection is not present, or the power is off.
Blink DSL traffic is flowing.
Green
On IP is connected.
Internet
Red On The device is attempted to become IP connected, but failed.
Off Device is ready for new WPS to setup.
Blink WPS is successfully triggered
WPS (on the side
panel)
Blue
On
Connection is successfully established between the router and the client, the LED would remain in solid light
for 5s.

D-Link DSL-2600U Specifications

Power

input voltage	100V-240V
input current	0.6A
input frequency	50 Hz - 60 Hz
output voltage	12V
output current	1A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps
IEEE 802.11b wireless transfer rates	11, 5.5, 2, and 1Mbps
IEEE 802.11g wireless transfer rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Interfaces

ADSL interface connector	RJ-11
LAN interface port	RJ-45
LAN interface standard	10/100BASE-T Ethernet
