D-Link DSL-2600U User Guide

Web Configuration
D-Link DSL-2600U User Manual
75

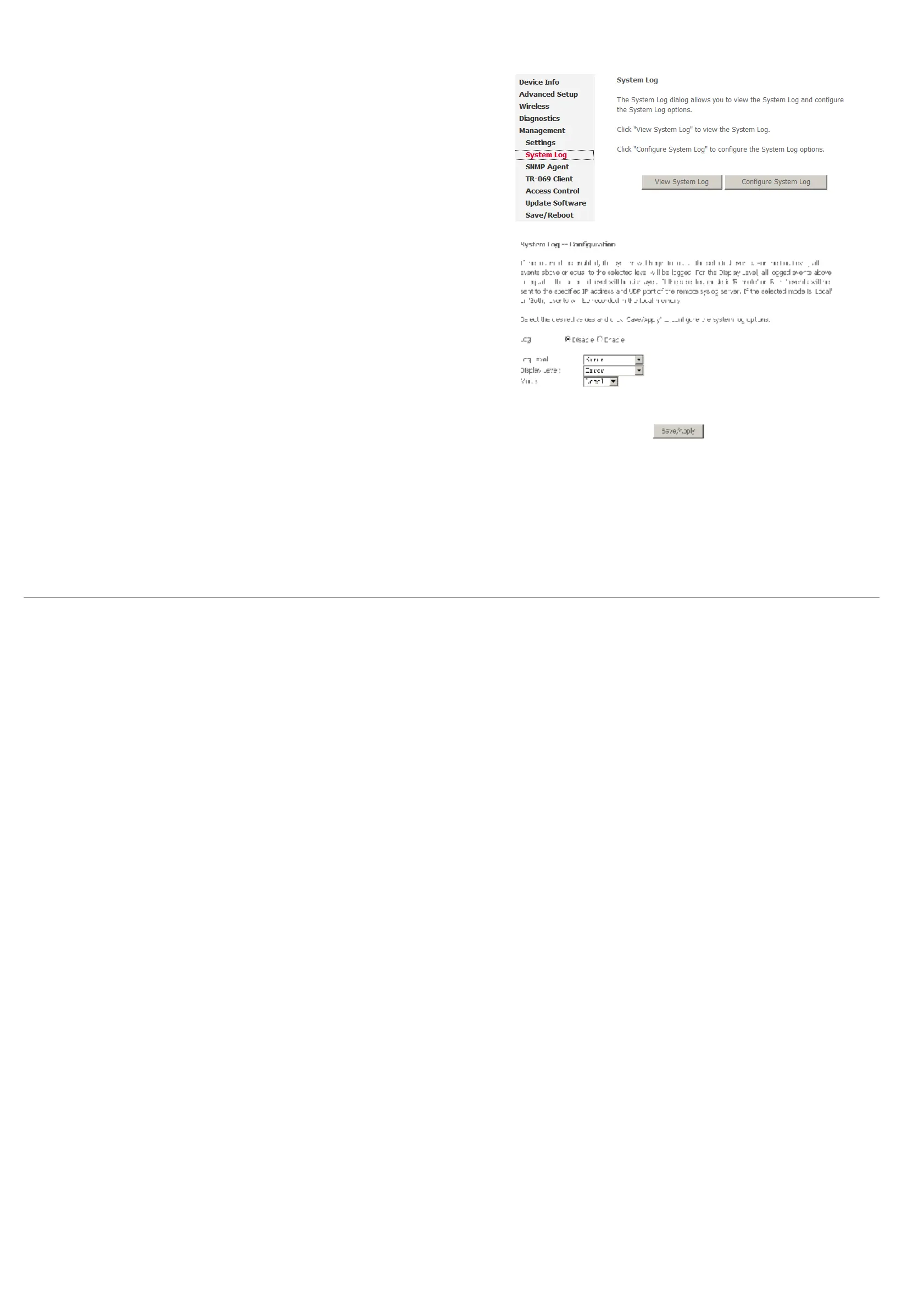

System Log
Click System Log to show the following interface. The system log dialog allows you to
view the system log and configure the system log options.
Click Configure System Log to show the following interface. You can enable or disable
the system log and then select the log level, display level and mode, and click Apply to
end your configurations.

D-Link DSL-2600U Specifications

Power

input voltage	100V-240V
input current	0.6A
input frequency	50 Hz - 60 Hz
output voltage	12V
output current	1A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps
IEEE 802.11b wireless transfer rates	11, 5.5, 2, and 1Mbps
IEEE 802.11g wireless transfer rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Interfaces

ADSL interface connector	RJ-11
LAN interface port	RJ-45
LAN interface standard	10/100BASE-T Ethernet
