D-Link DSL-520B User Guide

Section 3 – Configuration

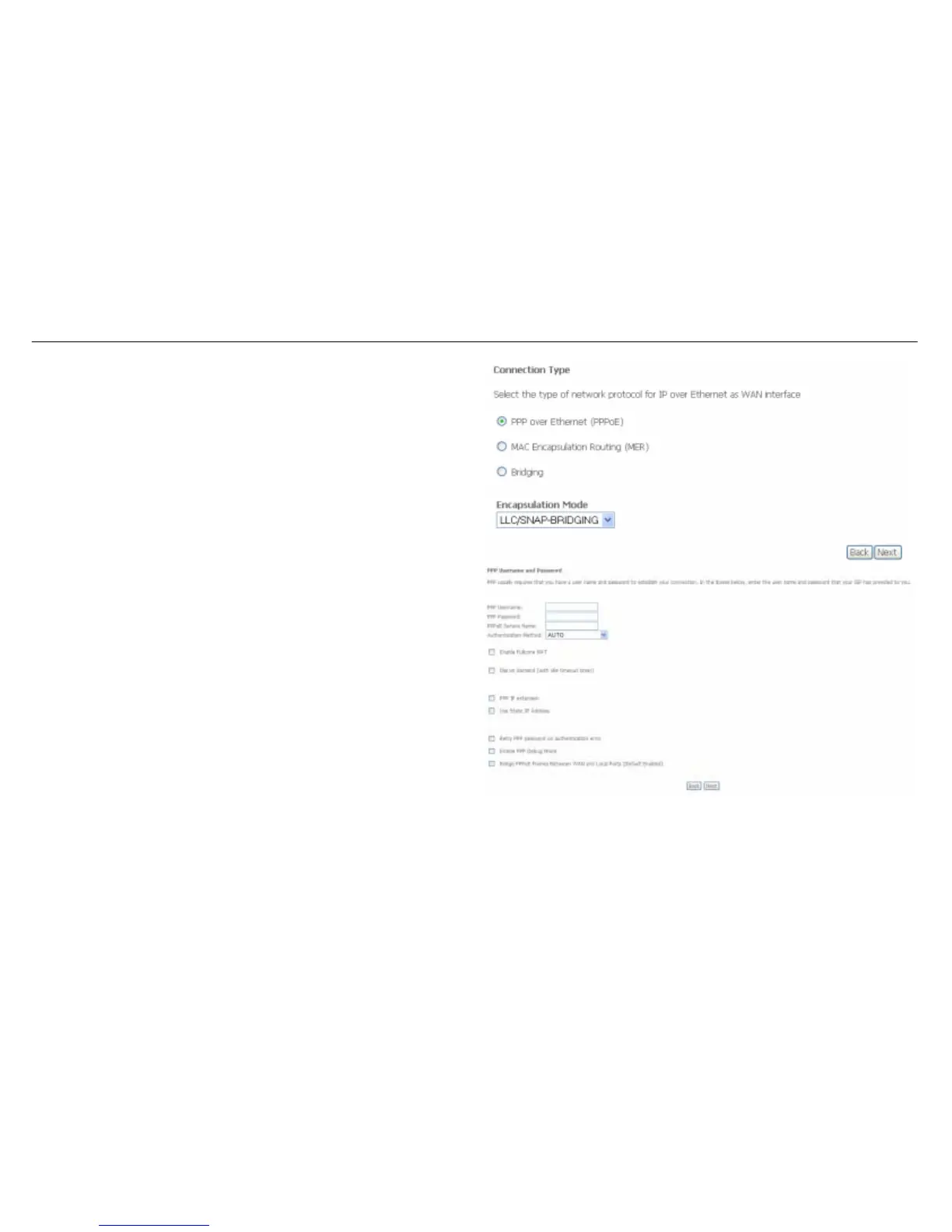

QUICK SETUP – PPPoE
Click the PPP over Ethernet (PPPoE) radio button on this window. This
window also allows you to use the drop-down menu to select the desired
Encapsulation Mode. Click the Next button to continue.
QUICK SETUP – PPPoE
This window allows you to set the username and the password for your
PPP connection. This information is obtained from your ISP. Additional
settings on this window will also depend on your ISP. Click the Next
button to continue.
D-Link DSL-520B User Manual
26

D-Link DSL-520B Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Interfaces

ADSL interface	RJ-11 connector
LAN interface	RJ-45 port
Ethernet	10/100BASE-T
