D-Link DSL-G225 User Manual

116D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 5 - Connect and Share a USB Device

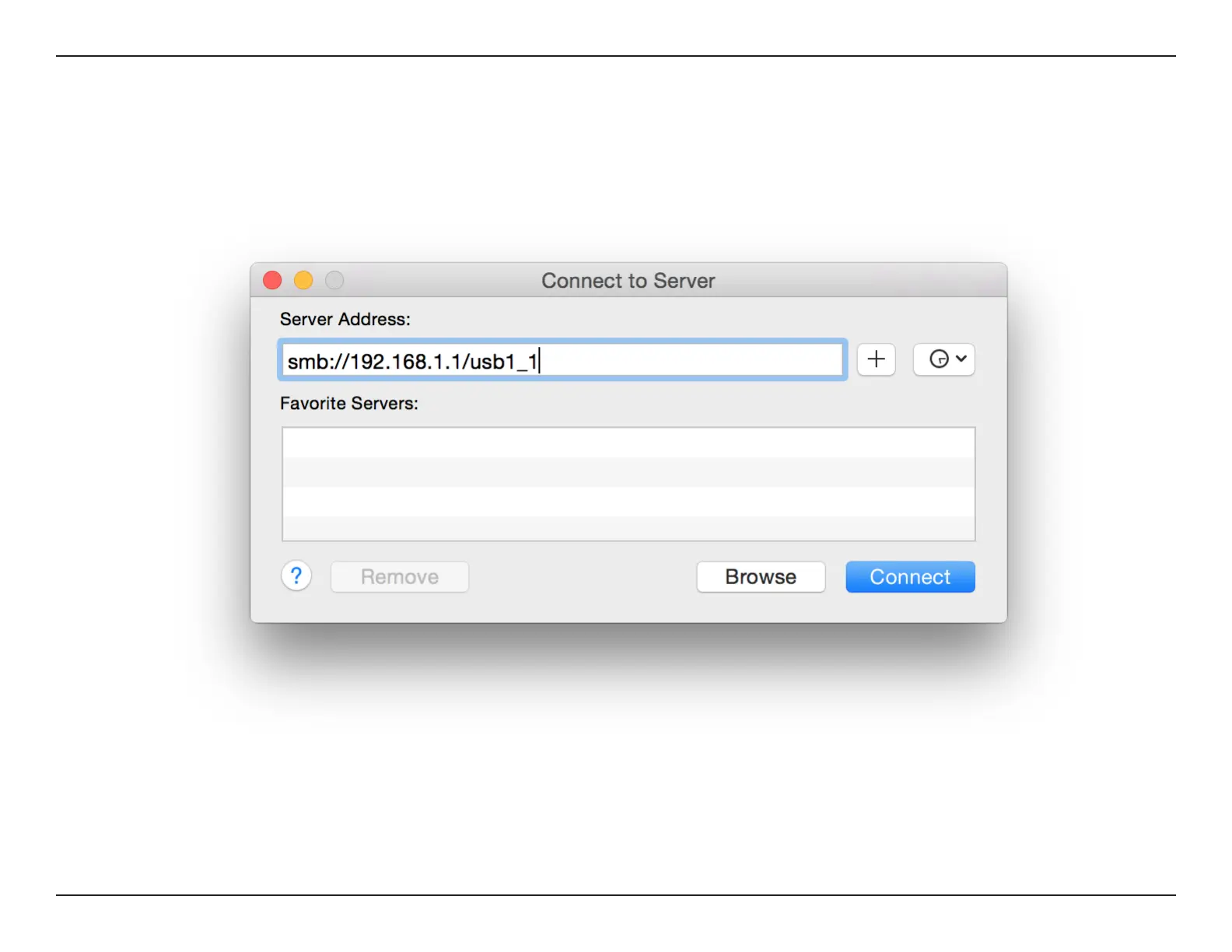

Step 2 - Enter the DSL-G225’s IP address and the name of the USB volume you wish to share.
For example smb//192.168.1.1/usb1_1.
Click Connect.
If you have multiple USB storage devices attached via a USB Hub, consult the Advanced > Storage Service > Storage Device
Information section of the DSL-G225’s Web Conguration utility for a list of available volume names. Refer to Storage Device
Information on page 116 for more information.

D-Link DSL-G225 Specifications

Power

input voltage	100~240 V
input frequency	50~60 Hz
output voltage	DC 12 V

Operating Environment

operating temperature	0 to 40 °C
non-operating temperature	-20 to 65 °C
operating humidity	0% - 90% non-condensing

Weight and Dimensions

dimensions	131.5 x 74.3 x 185.4 mm
weight	285 grams
