D-Link DSL-G225 User Manual

125D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 6 - Connecting To Your Wireless Network

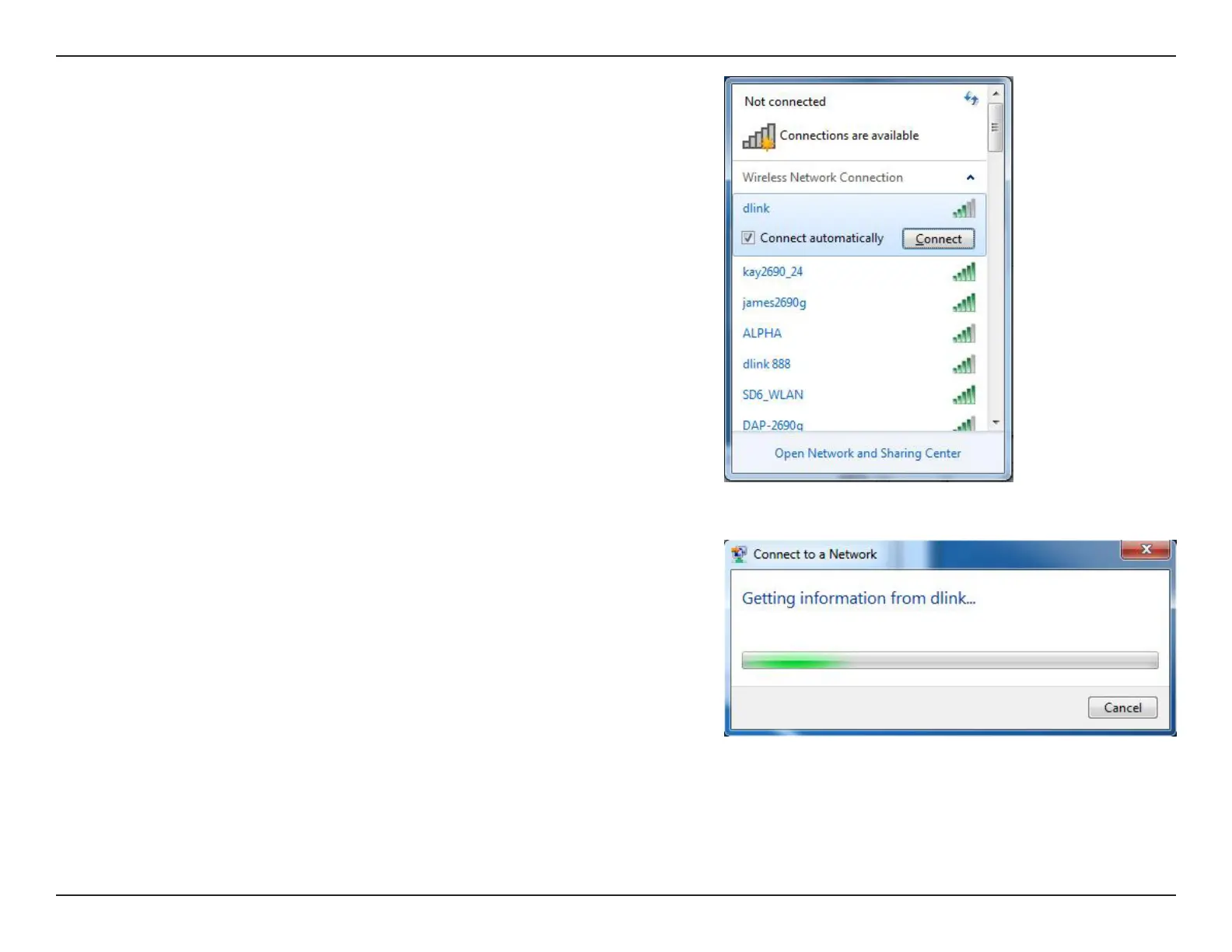

3. Highlight the wireless connection with Wi-Fi name (SSID) you would
like to connect to and click the Connect button.
If you get a good signal but cannot access the Internet, check your
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
4. The following window appears while your computer tries to connect
to the router.

D-Link DSL-G225 Specifications

Power

input voltage	100~240 V
input frequency	50~60 Hz
output voltage	DC 12 V

Operating Environment

operating temperature	0 to 40 °C
non-operating temperature	-20 to 65 °C
operating humidity	0% - 90% non-condensing

Weight and Dimensions

dimensions	131.5 x 74.3 x 185.4 mm
weight	285 grams
