D-Link DSL-G225 User Manual

126D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 6 - Connecting To Your Wireless Network

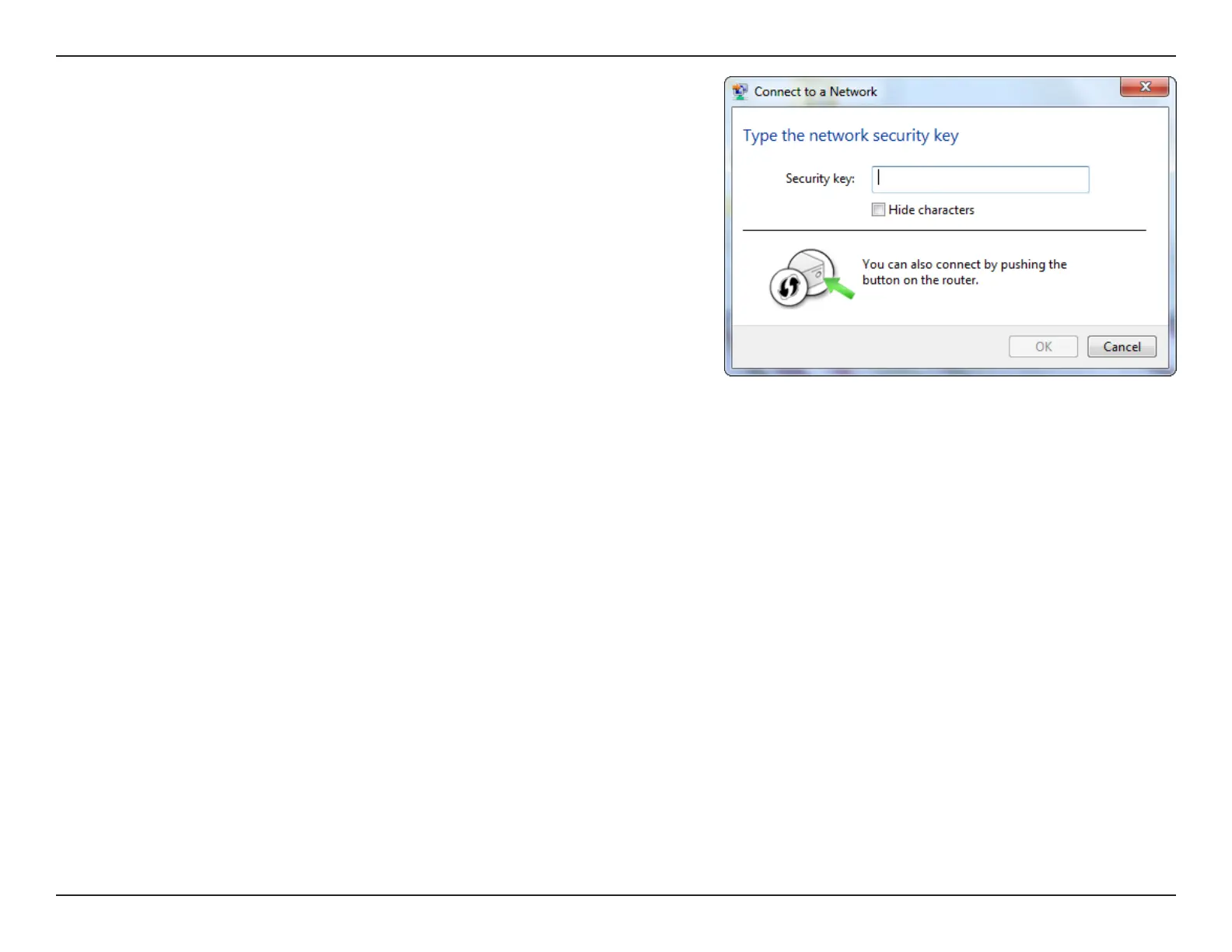

5. Enter the same security key or passphrase (Wi-Fi password) that is
on your router and click Connect. You can also connect by pushing
the WPS button on the router.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.

D-Link DSL-G225 Specifications

Power

input voltage	100~240 V
input frequency	50~60 Hz
output voltage	DC 12 V

Operating Environment

operating temperature	0 to 40 °C
non-operating temperature	-20 to 65 °C
operating humidity	0% - 90% non-condensing

Weight and Dimensions

dimensions	131.5 x 74.3 x 185.4 mm
weight	285 grams
