D-Link DSL-G225 User Manual

10D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 2 - Installation
Ethernet
Cable
DSL-G225
DSL-G225
Computer
Power Adapter
Computer
4
5

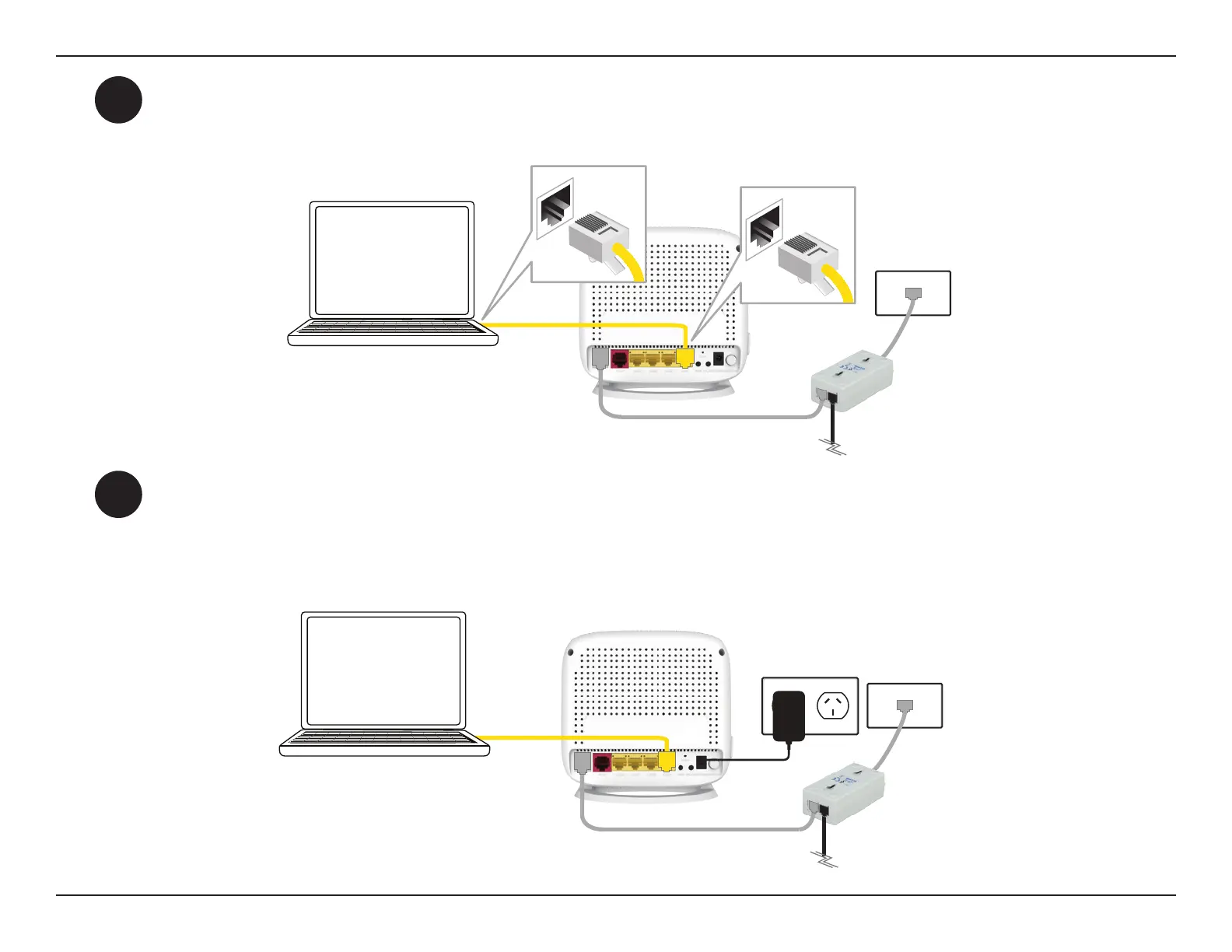

If you wish to use a wired connection, connect the Ethernet cable from a LAN port of the DSL-G225 to the
Ethernet port on your computer.
Plug the power adapter into your modem router and connect to an available power outlet or surge protector.
Caution: - Use only the included power adapter with this product.

D-Link DSL-G225 Specifications

Power

input voltage	100~240 V
input frequency	50~60 Hz
output voltage	DC 12 V

Operating Environment

operating temperature	0 to 40 °C
non-operating temperature	-20 to 65 °C
operating humidity	0% - 90% non-condensing

Weight and Dimensions

dimensions	131.5 x 74.3 x 185.4 mm
weight	285 grams
