DESCRIPTION OF OPERATION GENERATORS SECTION

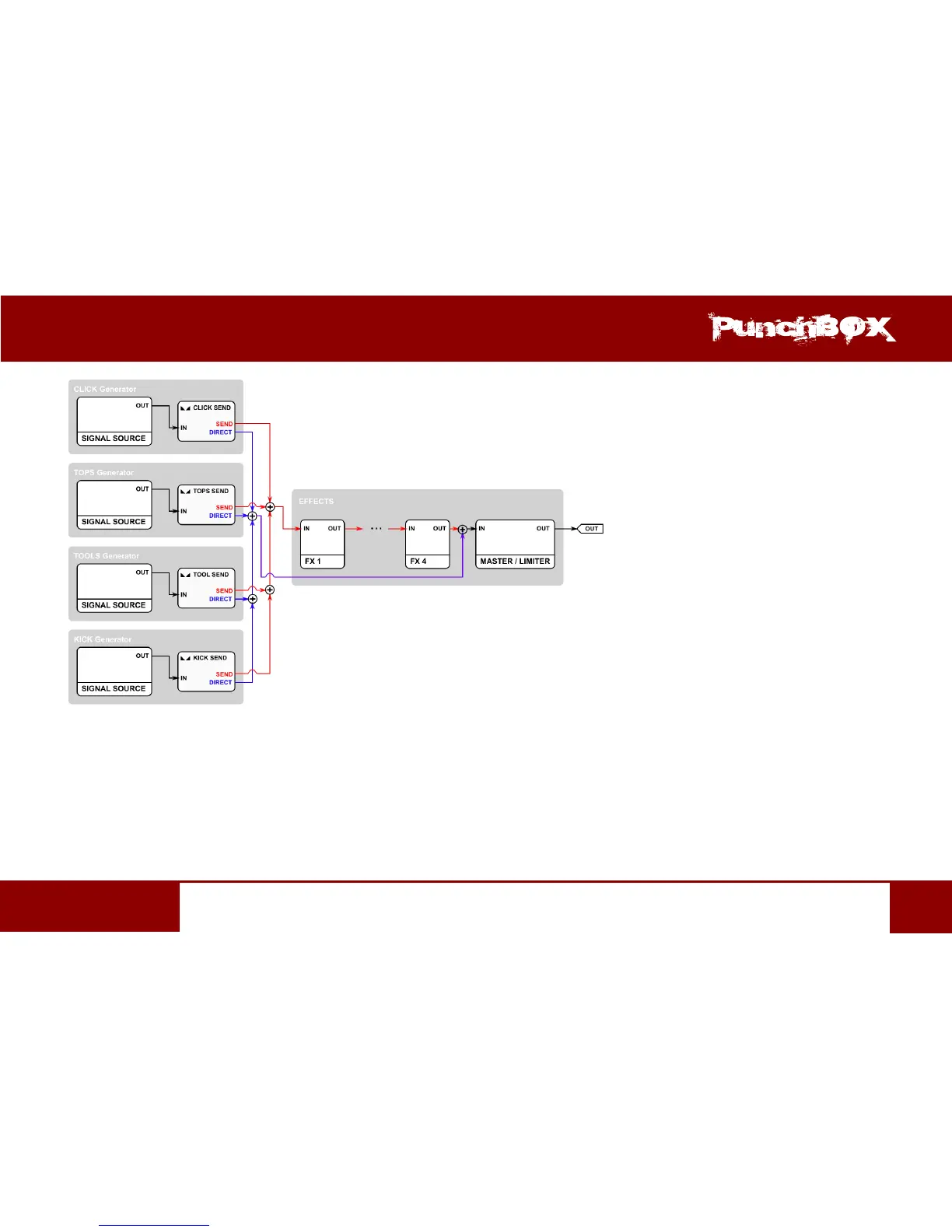

Signal ow from Generators through the FX chain
The red line refers to the sent signal ow to the eect cascade. The blue line refers to the unprocessed signal ow (with the cascade
bypassed) directly to the Limiter.
The cascade point where the direct signal (blue ow) is joined may be changed to obtain more complex topologies but it is not the subject
maer of this chapter. For more informaon please refer to the eect block descripon secon.
