DAELIM a.four

10-8
FRONT WHEEL/FRONT FORK/STEERING

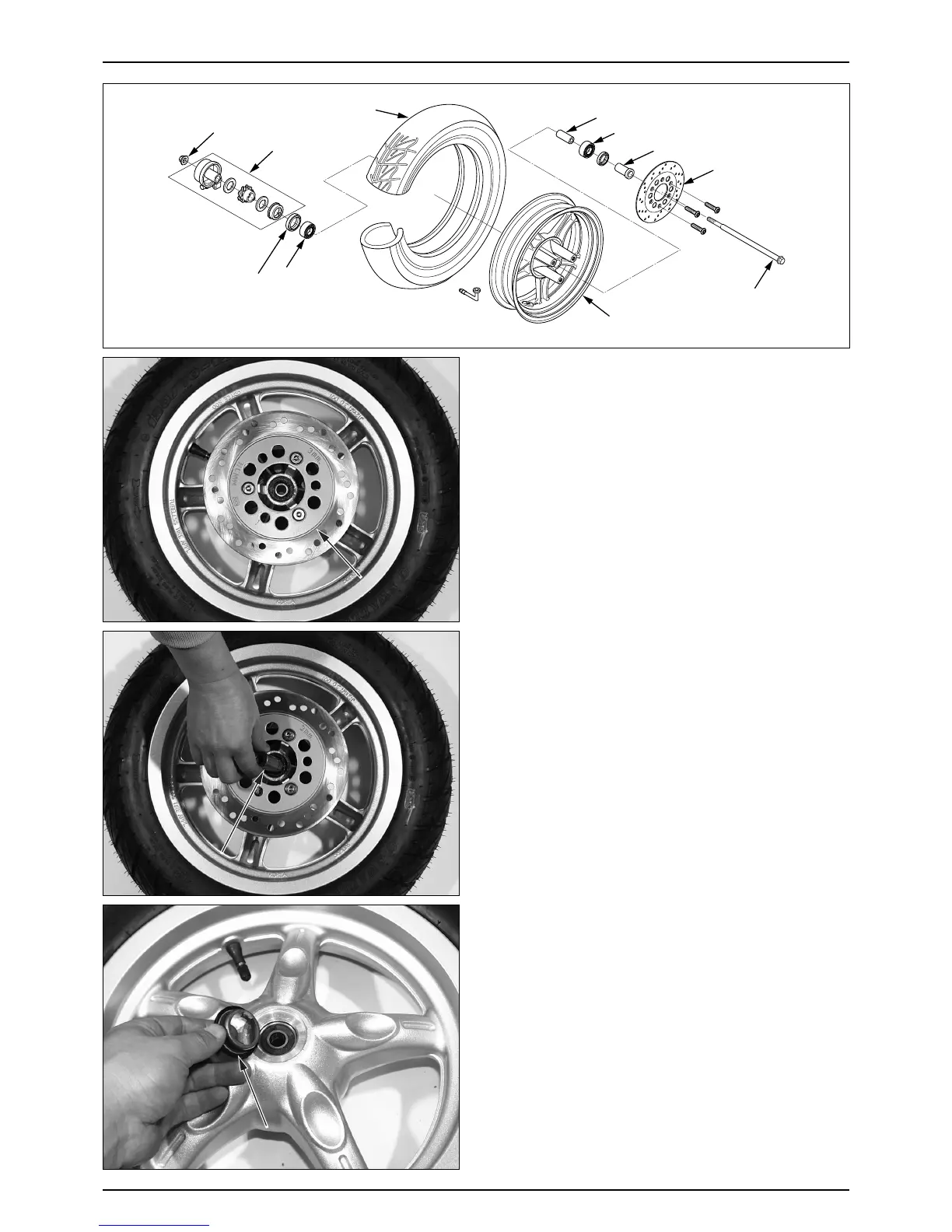

FRONT WHEEL ASSEMBLY
● Apply grease to the right side dust seal rim.
● Install the right side dust seal.
● Install the brake disk.
● Install disk bolts.
TORUE VALUE : 3.9kgf
·
m
● Install the front brake collar A.
● Align the wheel hub tangs with the slots of the
speedometer gear retainer, and assemble the
speedometer gear box seal.
BRAKE DISK
FRONT BRAKE COLLAR A
SPEEDOMETER GEAR BOX
SPEEDOMETERGEARBOX
RADIALBEARING
DISTANCECOLLAR
RADIALBEARING
AXLE
BRAKEDISK
RIM
TIRE
R.SIDECOLLAR
OILSEAL
NUT
