EXTERNAL PARTS
10
11
12
5
6
9
7
13
8
1
4
3
2
MAINTENANCE PROCEDURE
NAMES OF FRAME COVERS

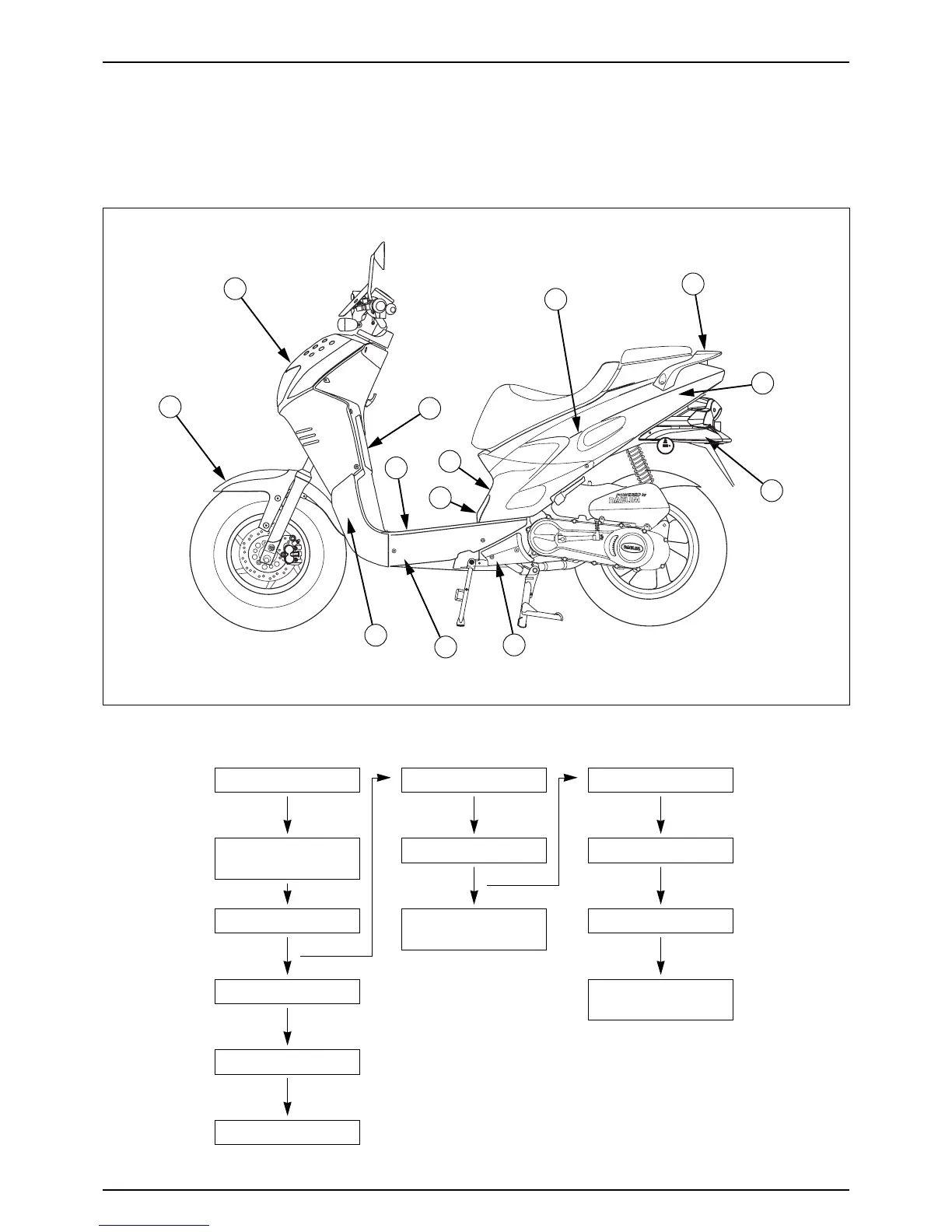

● This chart shows arrows connected in the order of disassembling covers.
① LUGGAGE BOX
② PLUG MAINTENANCE
COVER
③ CENTER COVER
④ REAR CARRIER
⑤ BODY COVER
⑥ TAILLIGHT BASE
⑦ FLOOR SIDE COVER
⑧ FLOOR PANEL
⑨ ENGINE HANGER
SIDE COVER
⑩ FRONT COVER
⑪ FRONT FENDER
⑫ INNER BOX
⑬ FRONT UNDER
COVER
