10-5

FRONT WHEEL/FRONT FORK/STEERING

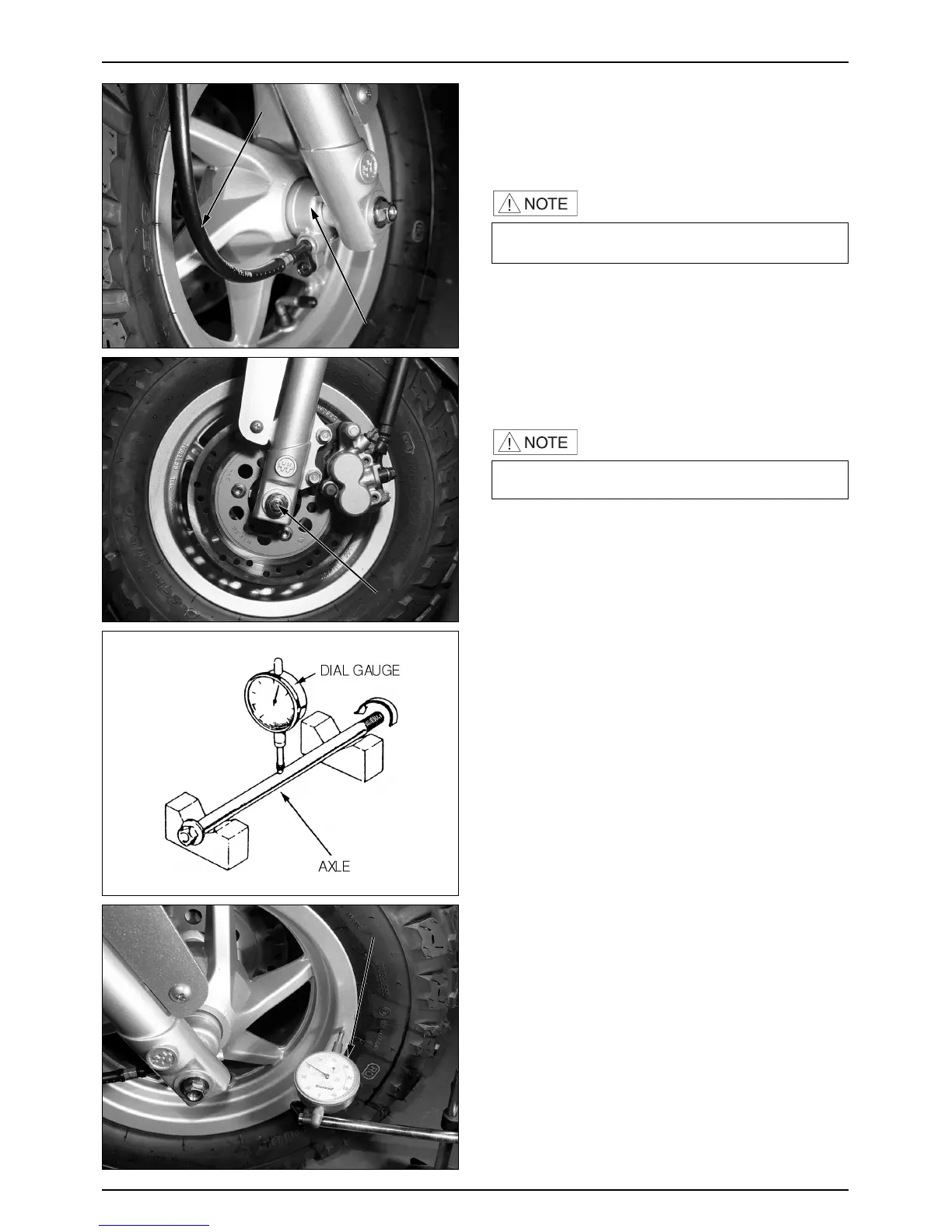

FRONT WHEEL

REMOVAL

● Remove screws from the speedometer gear box, and

separate the speedometer cable.

·Loosen axle nuts. Support bottom of engine with a

jack until the front wheel is lifted.

● Loosen the axle nut.

● Remove the front axle.

● Remove the front wheel.

·Do not operate brake lever after the front wheel is

removed.

● Remove the speedometer gear box.

INSPECTION

● Check the front axle for deflection. Place the front axle

on a V-block, and measure deflection with a dial gauge.

SERVICE LIMIT : 0.2mm

● Place the front wheel on an inspection stand. Slowly

turn the wheel, and check the rim runout with a dial

gauge.

SERVICE LIMIT : Radial 2.0mm

Axial 2.0mm

SPEEDOMETTER GEAR BOX

FRONT AXLE

DIAL GAUGE

SPEEDOMETTER CABLE
