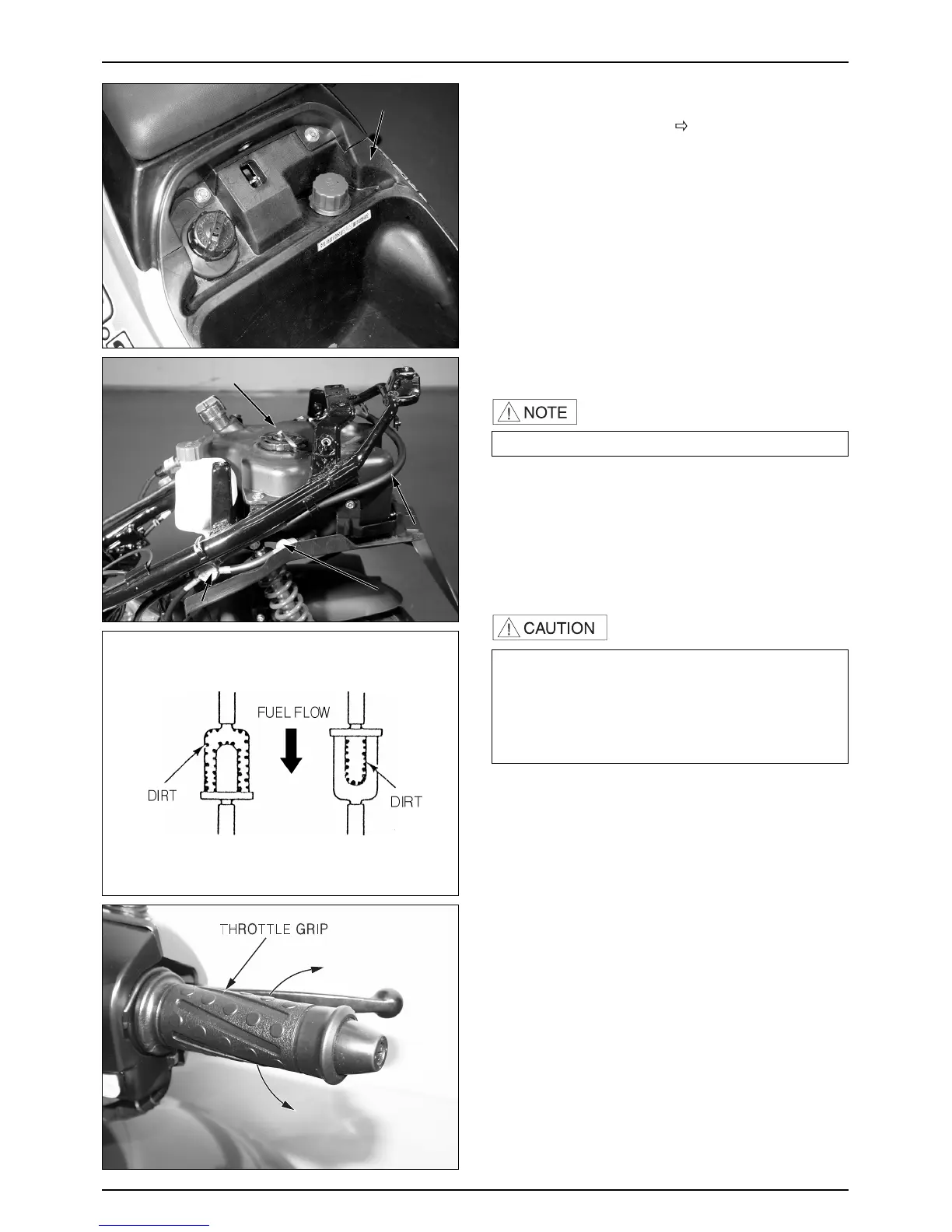

FUEL LINE(FUEL TUBE)

● Remove the luggage box.( 3-3)

● Check the fuel tube of the fuel auto cock connected to

the fuel tank and carburetor. If the fuel tube is cranked,

damaged or leaks, replace it.

FUEL LINE FOR CLOGGING

•Refer to section 2 for fuel filter inspection.

● Check the fuel tank cap and/or fuel tank breather tube

for clogging.

● Visually inspect the fuel strainer for contamination.

Check the fuel flow with the fuel strainer installed and

with the strainer removed.

Replace the fuel strainer if it is excessively contaminated

or if the fuel flow is not smooth.

•Note the installation direction of the fuel strainer. Be

sure to install it as shown in the drawing, i.e., with

the cup facing down. Fuel flows even though the

strainer is installed upside down, but it contaminates

the inner wall of the strainer and prevents visual

inspection of the strainer.

● Remove the fuel valve lock nut and check the fuel

strainer screen for contamination. Tighten the lock nut

to the specified torque.

THROTTLE GRIP OPERATION

● Check if the throttle grip operates smoothly in any

steering position

● If the throttle grip does not operate properly, lubricate

the throttle cable.

● If the throttle grip does not operate properly, check the

throttle cable for aging, damage or kinking.

● Check the throttle grip free play.

FREE PLAY : 2~6mm

2-3

INSPECTIONS/ADJUSTMENTS

(Inner walls get

contaiminated,

making visual

inspection

difficult.)

FUEL AUTO COCK

FUELTUBE

LUGGAGE BOX

FUEL TANK

FUEL STRAINER
