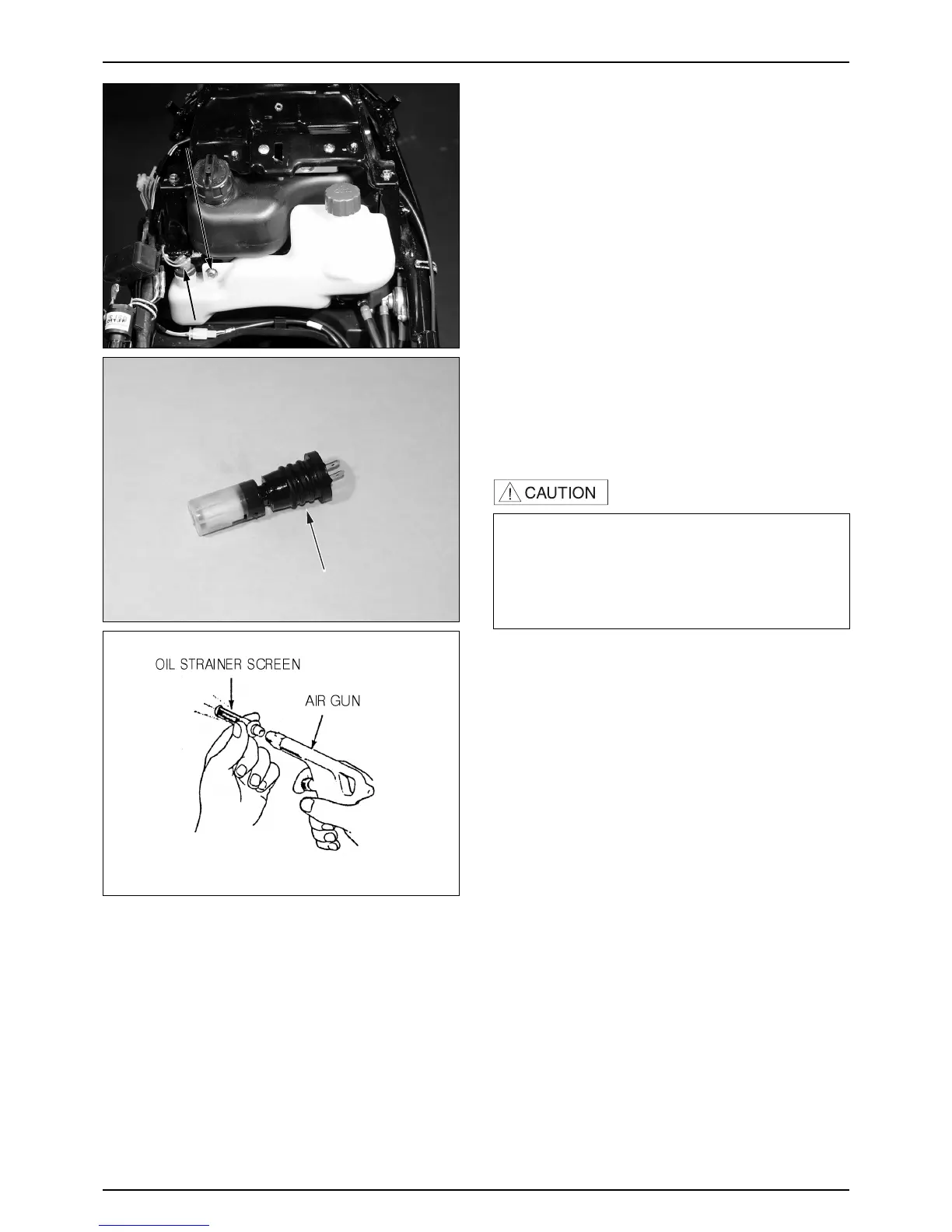

OIL TANK DISASSEMBLY

● Remove the luggage box.

● Remove the oil level switch connector.

● Remove the tube in the oil pump.

● Install the tube clip or the valve in the oil tube to avoid

the oil from leaking.

● Remove the flange bolt securing the oil tank and press

the left and lower rear fender to remove the oil tank.

● Drain the oil from the oil tank.

● Remove the oil level switch.

● Remove the oil tube.

● Remove the oil strainer.

INSPECTION

● Check the oil level switch and the oil tube for proper

installation.

● Install in the reverse order of removal.

•If the oil enters into the oil pass, it may cause

abnormal lubrication or engine sticking. Always

remove the air in the oil pass after maintenance.

•Make sure that the oil tube is connected properly.

•Drain the oil in the clean container.

•Install the oil strainer after cleaning it.

4-8

LUBRICATION SYSTEM

OIL LEVEL SWITCH

FLANGE BOLT

OIL LEVEL SWITCH CONNECTOR
