DAELIM a.four

10-20
FRONT WHEEL/FRONT FORK/STEERING
STEERING STEM
REMOVAL
● Front cover.
● Front fender.
● Front handle cover/rear handle cover.
● Steering handle.
● Front wheel.
● Front brake caliper.
● Front fork.

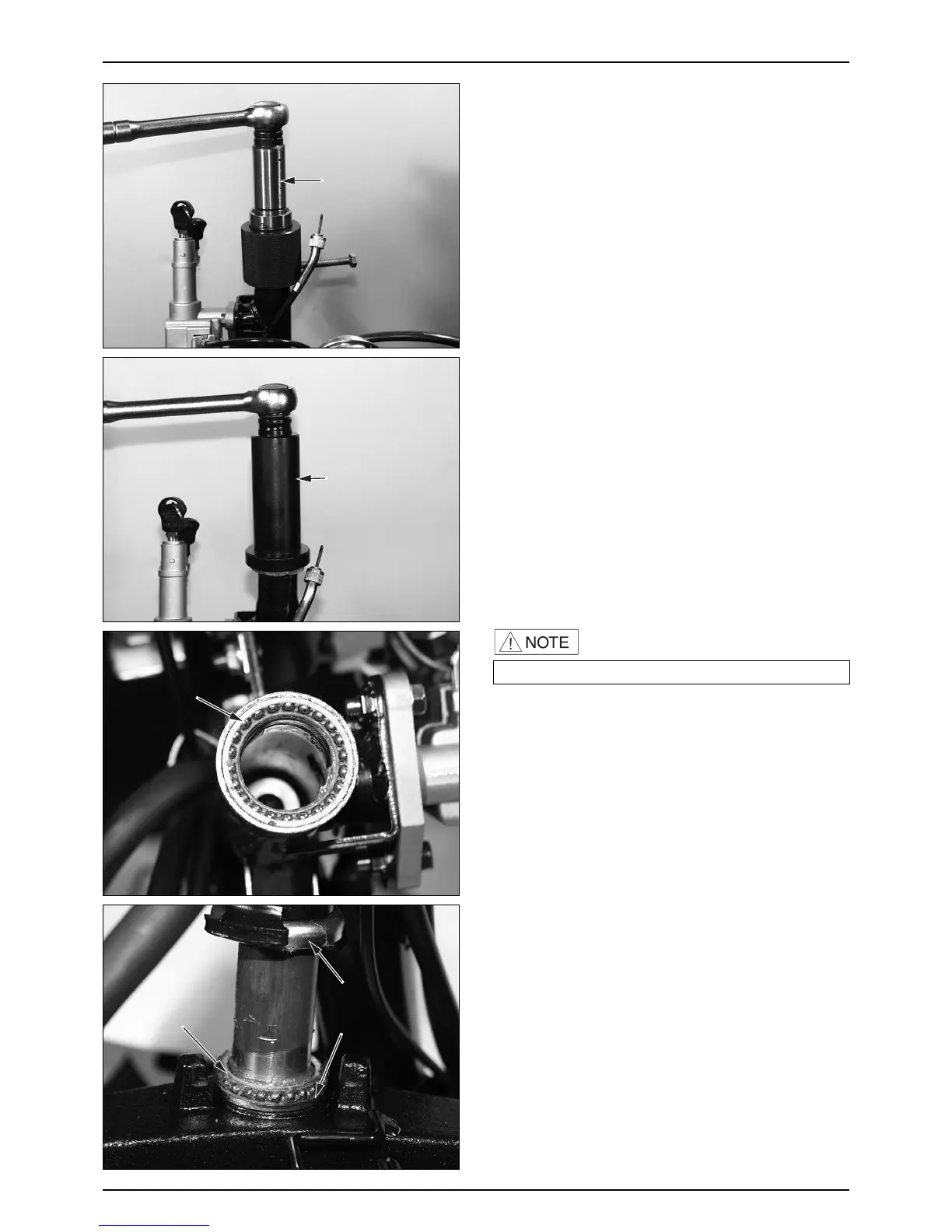

● Loosen the steering stem lock nut.
● Remove the speedometer cable and front brake hose
from the steering stem bracket.
● Loosen the steering top cone race.
● Remove the steering stem.
·Place steel ball in a pan to prevent from being lost.
● Check the steel ball, cone race, and ball race for wear
or damage. Replace worn or damaged ones.
● Remove the steering steel ball/ upper steering ball race/
steering bottom cone race.
STEERING LOCK
NUT SOCKET
STEERING
TOP CONE RACE
SOCKET
STEEL BALL
UNDER
BALL RACE
BOTTOM
CONE RACE
STEEL BALL
