DAELIM a.four

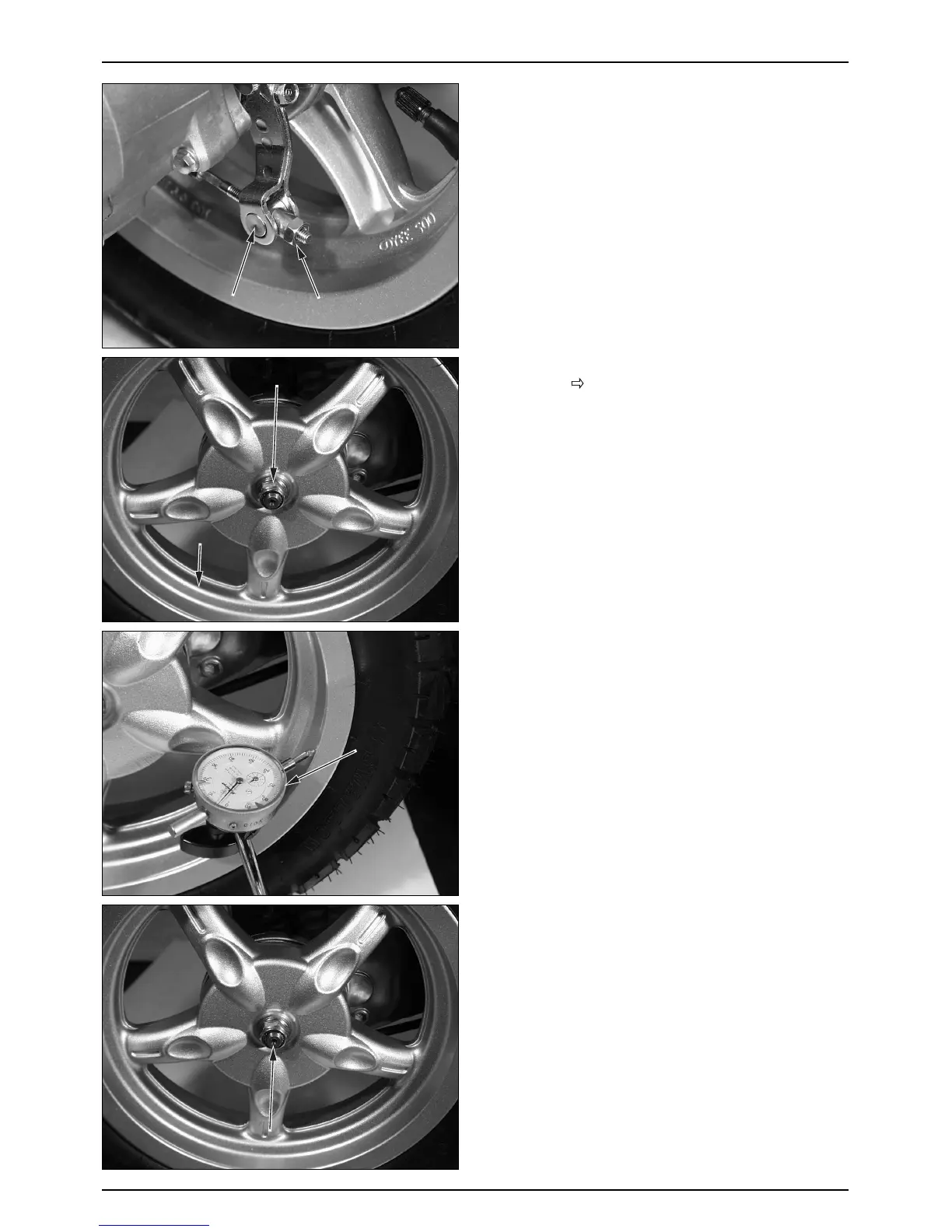

REAR WHEEL
REMOVAL
● Support the motor cycle on the main stand.
● Loosen the rear brake adjuster, and remove the brake
cable.
● Remove the brake arm joint B.
● Remove
- Muffler. (
3-7 )
- Rear wheel mud guard.
● Loosen the rear wheel U nut.
● Remove
- Washer.
- Rear wheel.
INSPECTION
● Turn the wheel, and check the rim for wobbles.
SERVICE LIMIT : Radical 2.0mm
Axial 2.0mm
INSTALLATION
● Insert the rear wheel over the final shaft.
11-3
REAR WHEEL/BRAKE/SUSPENSION
ADJUST NUT
BRAKE ARM JOINT B
REAR WHEEL
U NUT
DIAL GUAGE
FINAL SHAFT
