EXTERNAL PARTS

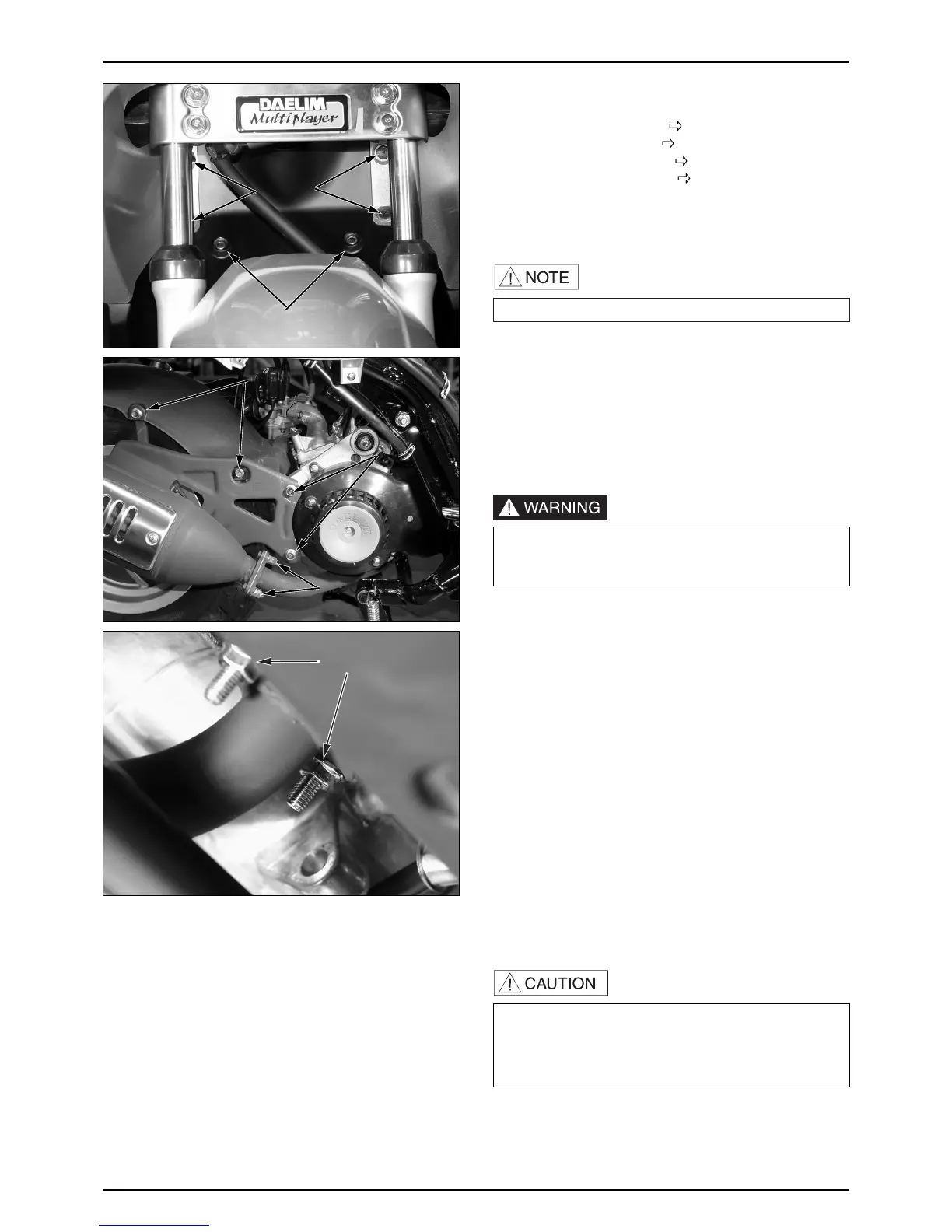

FRONT UNDER COVER
● Remove the front cover. ( 3-5)
● Remove the inner box. (
3-5)
● Remove the front fender. (
3-5)
● Remove the front wheel. (
10-5 )
● Loosen the flange bolts securing the lower end of the
inner box.
● Remove the front under cover.
● Install in the reverse order of removal.
•Pay attention not to turn over the vehicle.
MUFFLER
● Loosen the 3 flange nuts securing the EX pipe comp.
● Loosen the 2 flange bolts securing the R. crankcase.
● Loosen the 2 flange bolts securing the rear wheel mud
guard.
● Remove the EX muffler comp.
•Never perform the maintenance of the muffler right
after stopping the vehicle because the muffler is
extremely hot
EX. PIPE REMOVAL
● Loosen the 2 flange bolts securing the cylinder comp.
● Remove the EX pipe by drawing it to the ground
direction.
INSTALLATION
● Install the 2 flange bolts after securing the EX pipe
with the stud bolt of the cylinder comp.
● Install the gasket on the EX muffler, connect the EX
pipe and install the 2 flange nuts temporarily.
● Install the 2 flange bolts on the R. crankcase
temporarily.
● Tighten the 3 flange nuts to install the EX muffler and
the EX pipe.
● Install the 2 flange bolts on the rear wheel mud guard.
● Tighten the muffler securing 2 flange bolts to install the
R. crankcase.
● Tightening torque of the R. crankcase.
TORQUE : 3.3kgf
··
m
•When installing the gasket, replace it with the new
one.
•Check to see if there is any evacuation after installing
the muffler.
