DAELIM a.four - Rear Cushion

REAR CUSHION

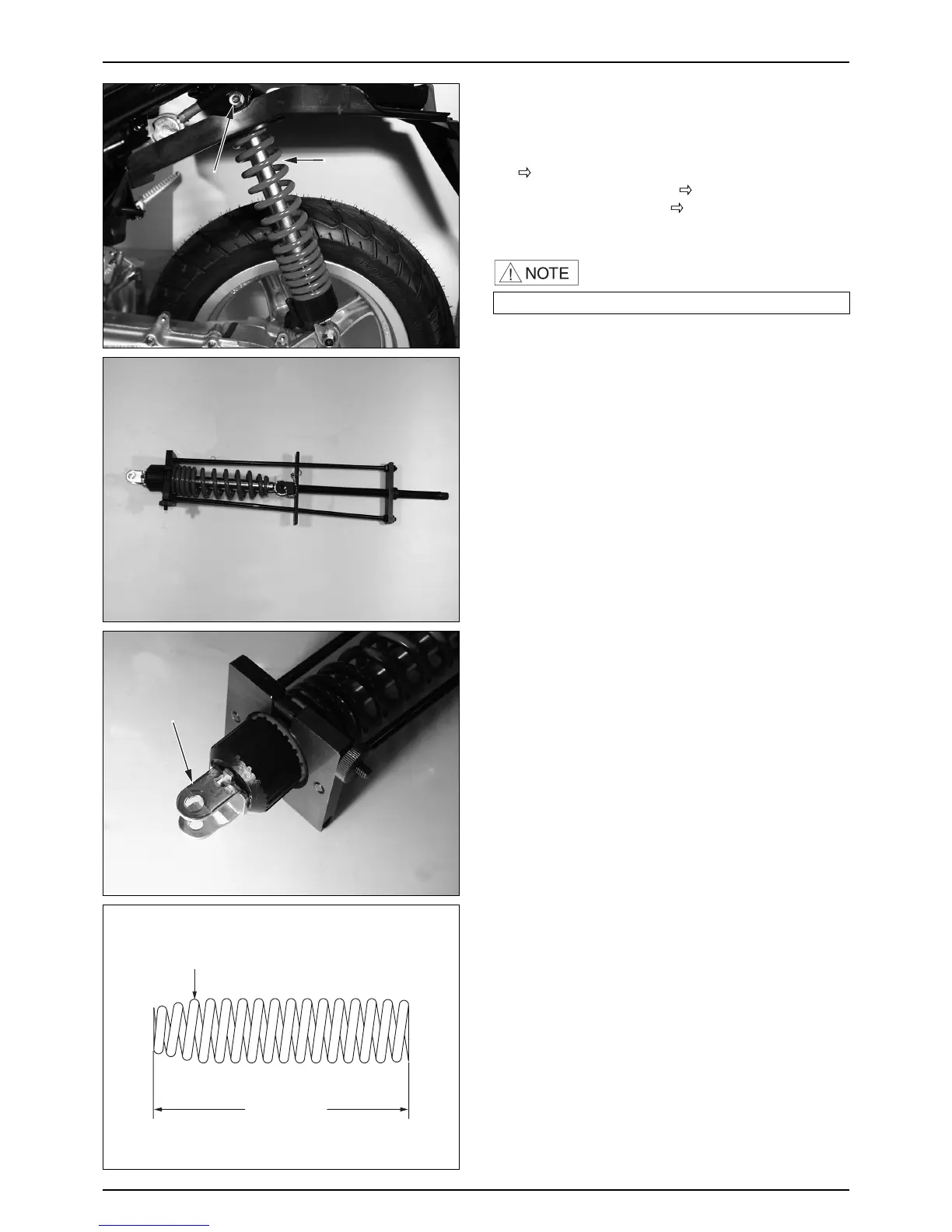

REMOVAL
● Remove the plug maintenance cover/ center cover.
(
3-3 )
● Remove the luggage box. (
3-3 )
● Remove the body cover. (
3-3 )
● Loosen the top and bottom rear cushion setting bolts.
·Support the frame firmly prior to working.
DISASSEMBLY
● Install the compressor attachment as shown in the
figure.
● Install the cushion on the cushion compressor, and
compress the spring.
TOOLS : COMPRESSOR ATTACHMENT
REAR COMPRESSOR
● Fix the bottom metal, and loosen the lock nut.
● Remove the bottom metal.
● Remove the stopper rubber, spring from the damper
component.
INSPECTION
● Measure the rear cushion spring free length.
● Check the damper rod for deflection or damage.
SERVICE LIMIT : 228.0mm
11-6
REAR WHEEL/BRAKE/SUSPENSION
REAR CUSHION
SETTING
BOLT
BOTTOM
METAL
FREELENGTH
SPRING
