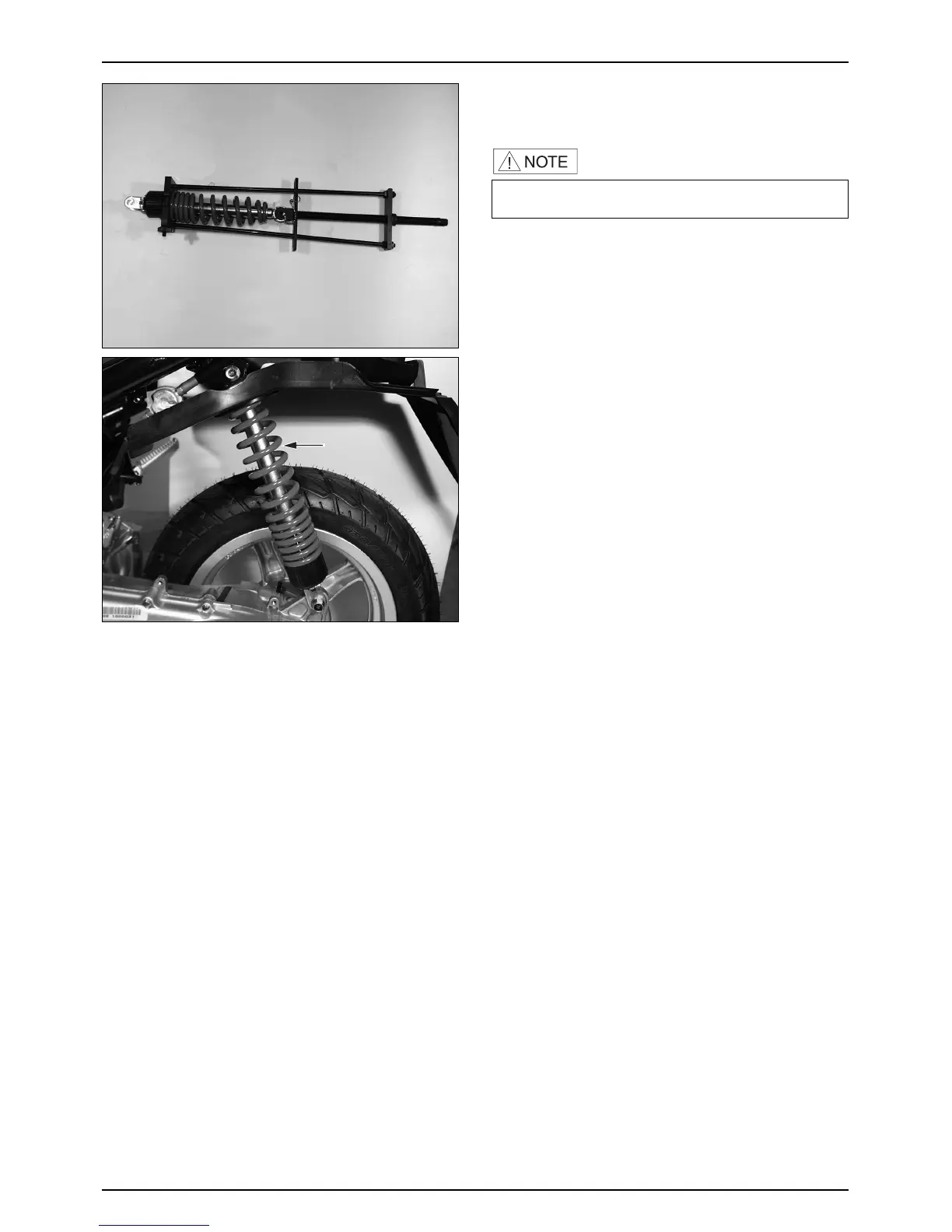

REAR CUSHION ASSEMBLY/INSTALLATION
● Assemble the spring, spring guide, and stopper rubber.
·Install the spring with its narrow pitch side facing
upward
● Apply thread locking agent to the lock nut, and install
the rear cushion compressor attachment on the damper
rod.
● Fix the upper joint, and tighten the lock nut.
TORQUE VALUE : 4.0kgf
·
m
TOOLS : REAR CUSHION COMPRESSOR
REAR CUSHION COMPRESSOR ATTACHMENT
● Install the rear cushion.
● Tighten the top and bottom of the cushion with bolt.
TORQUE VALUE : UPPER SIDE 3.5kgf
·
m
LOWER SIDE 3.5kgf
·
m
11-7
REAR WHEEL/BRAKE/SUSPENSION
