14-4
IGNITION SYSTEM
IGNITION SYSTEM INSPECTION
(PEAK VOLTAGE MEASUREMENT)
·When sparks are not emitted from spark plug, after
checking for disconnection in wires and looseness,
measure peak voltage for each wire.

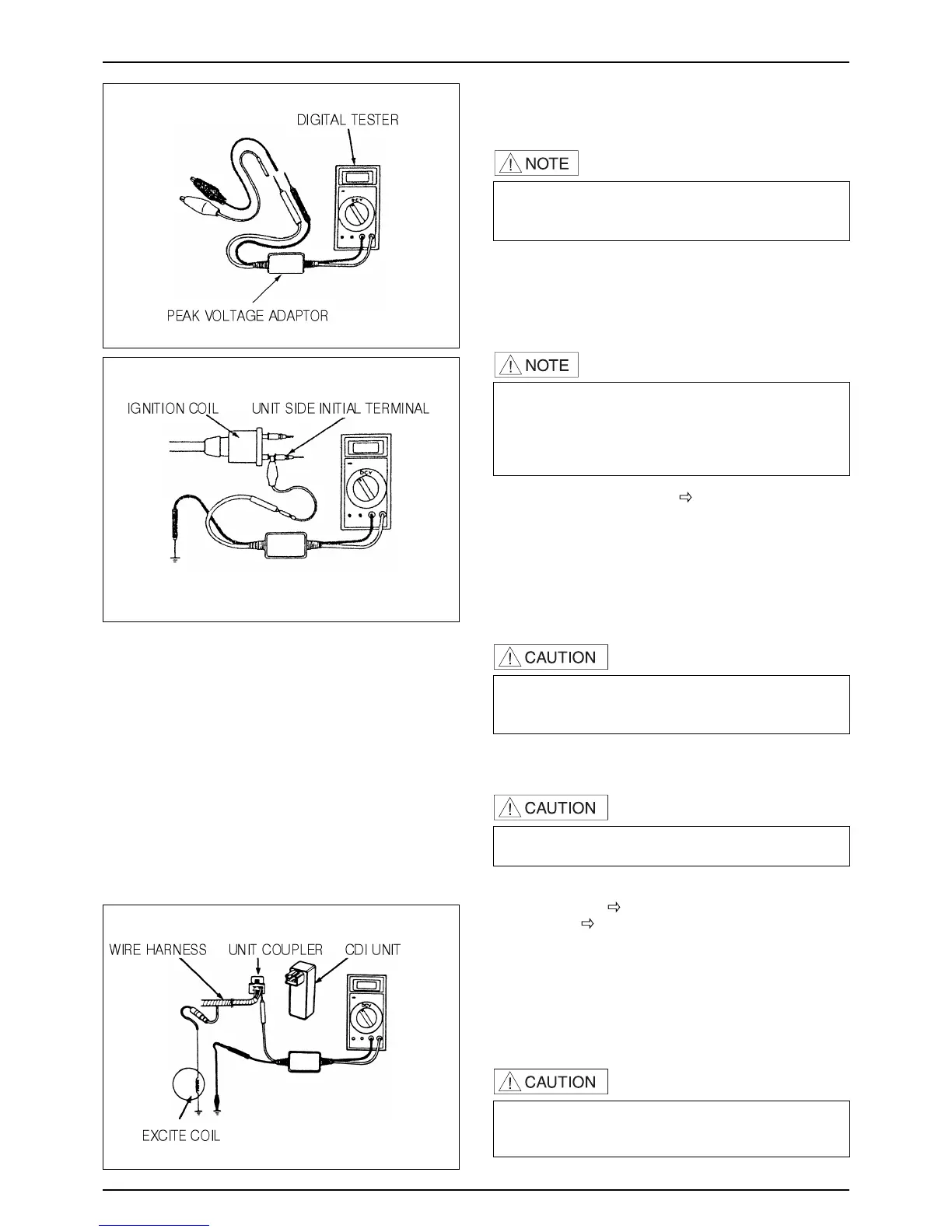

● Connect the peak voltage adaptor to the digital tester.
DAELIM PVA MULTI TESTER
IGNITION COIL PRIMARY VOLTAGE
·Make sure each wire is correctly connected to ensure
correct measurement.
·Inspect when there is cylinder compression pressure
and with the spark plug cap securely connected to the
spark plug.
● Remove the luggage box. (
3-3 )
● With the ignition coil wire connected, contact the peak
voltage adaptor to the initial wire adaptor terminal
(black/yellow) and ground (on vehicle body.). Turn the
main swtich ON, operate the starter motor, and
measure the ignition coil initial side peak voltage.
CONTACT POINTS : BLACK/YELLOW TERMINAL “
⊕⊕
”-BODY EARTH “
⊖⊖
”
PEAK VOLTAGE : OVER 120V
·When measuring voltage, do not touch the metal part
of the handle rod as there is the danger of receiving
an electric shock.
EXCITE COIL
·Assemble the spark pug to the cylinder head, inspect
in a state having compression pressure.
REMOVE
● Luggage box. ( 3-3 )
● CDI unit. (
14-7 )
● Coupler from the CDI unit contact the peak voltage
adaptor to the excite coil wire (black/red and green) of
the harness side coupler.
● Operate the starter motor and measure the excite coil
peak voltage.
CONTACT POINTS : BLACK/RED TERMINAL “
⊕⊕
”-BODY EARTH “
⊖⊖
”
PEAK VOLTAGE : OVER 120V
·When measuring voltage, do not touch the metal part
of the handle rod as there is the danger of recieving
an electric shock.
