FRONT WHEEL/FRONT FORK/STEERING

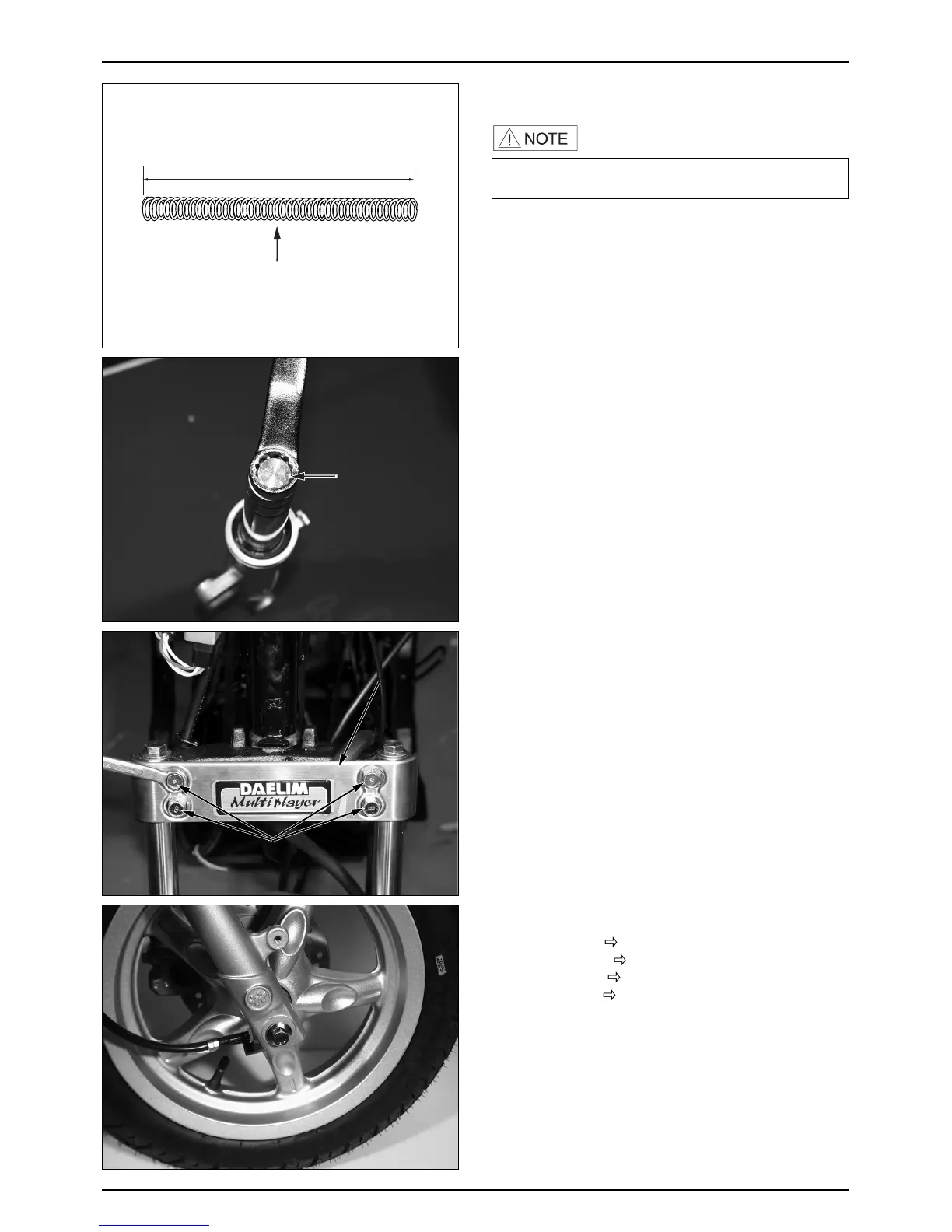

● Assemble the spring to the fork pipe.
·Install the spring with the smaller pitch side facing
downward.
● Assemble the fork bolt to the fork tube.
FRONT FORK
INSTALLATION
● Install the front fork to the steering stem.
● Install the front fork setting bolt.
TORQUE VALUE : 4.0kgf
·
m
● Install the following parts.
- Front wheel (
10-5 )
- Brake caliper (
12-7 )
- Front fender (
3-5 )
- Front cover (
3-5 )
