10-15
FRONT WHEEL/FRONT FORK/STEERING

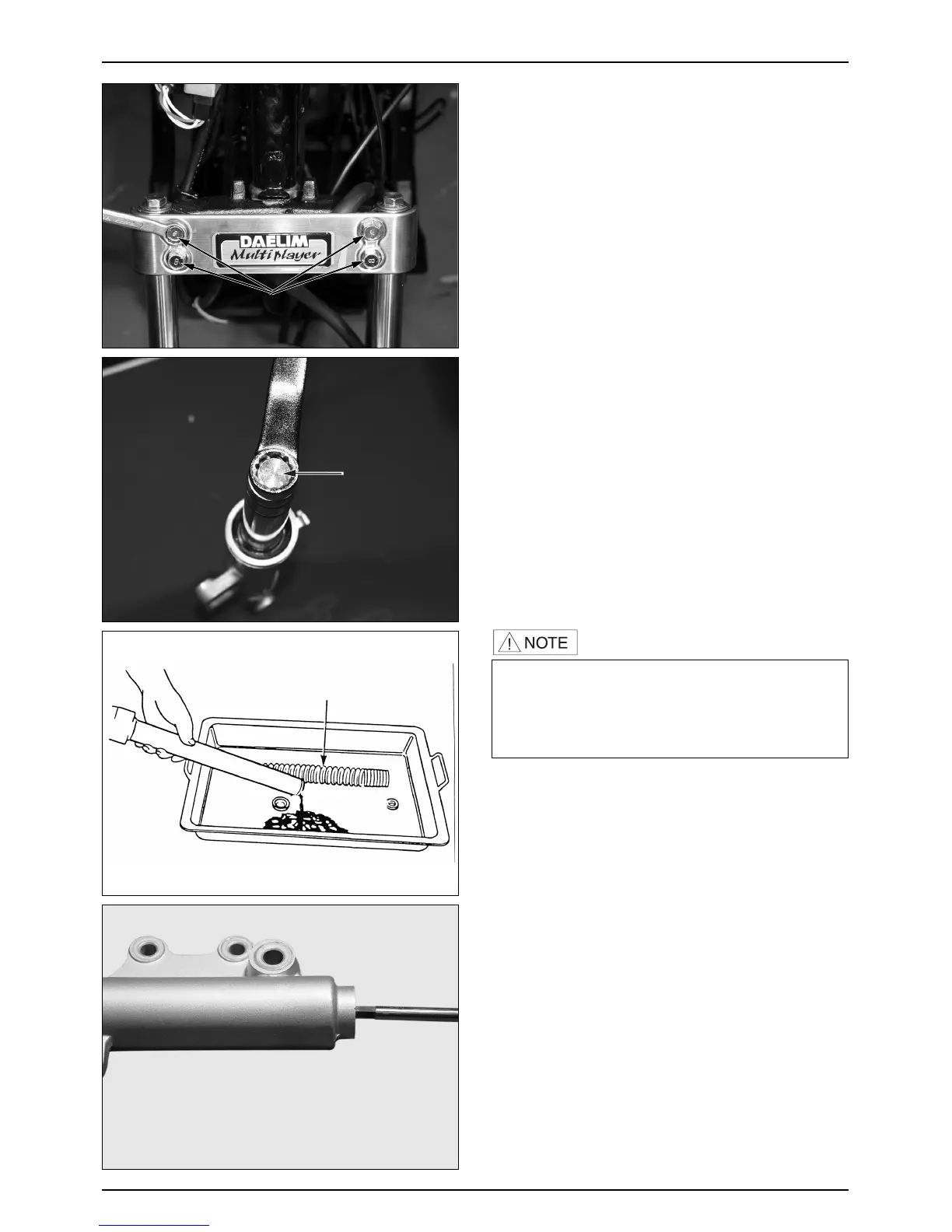

Loosen the 2 steering stem front fork R., L. stay bolts.
Remove the front fork.
FRONT FORK
DISASSEMBLY
Remove the fork tube cap bolt.
·If the screw is completely loosened, the fork tube cap
bolt may spring out by the force fo the spring. Take
due precautions.
·Remove the fork spring, and expand and release the
fork pipe several times to drain fork oil.
Wrap the bottom case with a piece of cloth, and
remove the socket bolt.
FORK BOLT
SPRING
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
FLANGE BOLT
