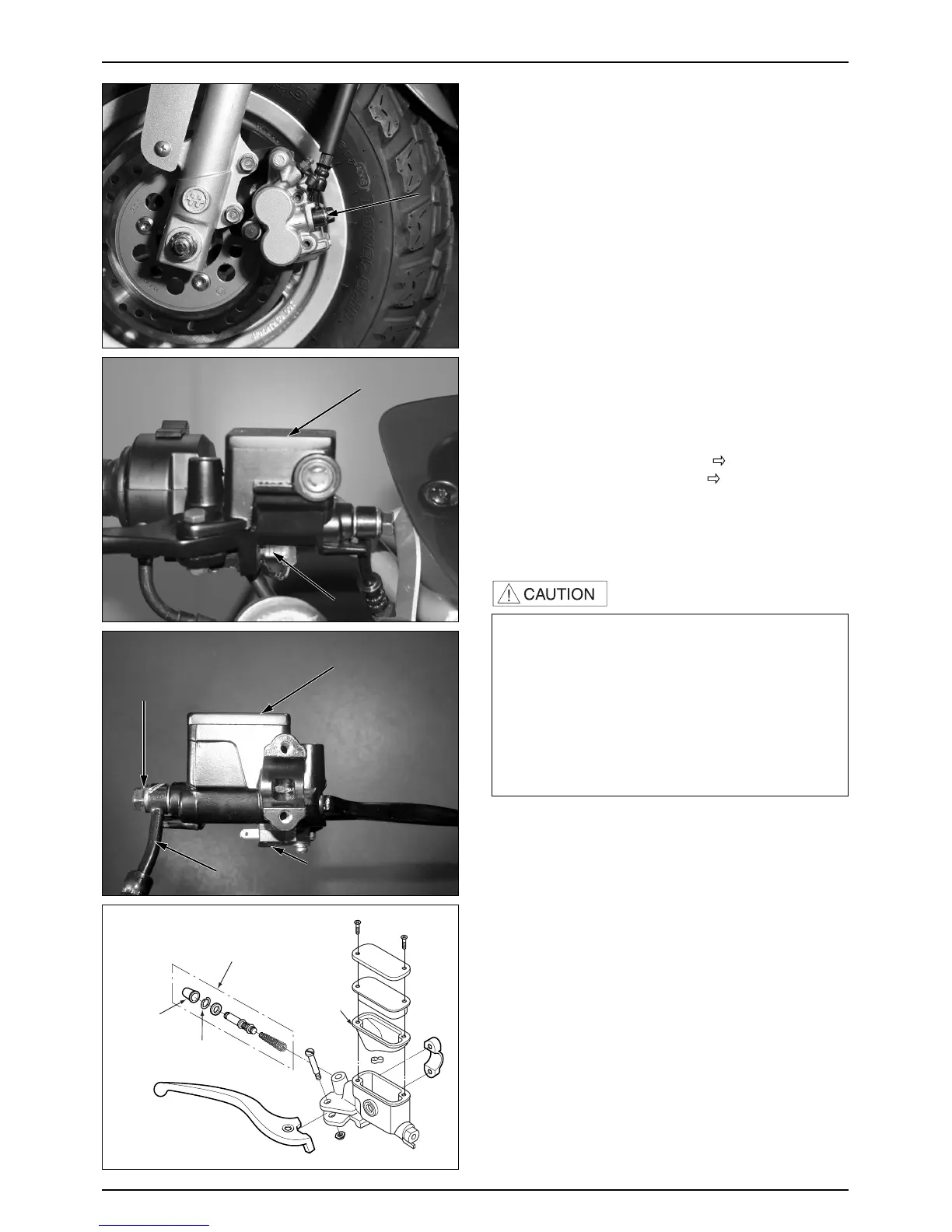

12-9

BRAKE SYSTEM

MASTER

CYLINDER

HOLDER

PISTON

BOOT

CIR CLIP

MASTER

CYLINDER SET

● Connect the brake hose to the caliper, and install 2

sealing washers and the brake hose bolt.

TORQUE : 3.5kgf

● Install the slide pin cap.

● Fill the brake fluid, and bleed air.

MASTER CYLINDER

REMOVAL

● Remove the back mirror.

● Remove the front handle cover. (

3-6 )

● Remove the rear handle cover. (

3-6 )

● Disconnect the front brake switch wire.

● Drain the brake fluid.

● Remove the brake hose from the master cylinder.

·Brake fluid causes damage to the painted, plastic or

rubber parts. Do not spill fluid on these parts.

·If contaminated, gently wipe off the fluid with a

piece of cloth or wash in water. Close hose joints

properly to prevent leakage of brake fluid.

·Clean the disassembled parts with brake fluid, and

use compressed air to verify each passage is not

clogged.

·Do not allow the disassembled parts to be

contaminated by waste material or dust.

● Remove the master cylinder holder, and lift out the

master cylinder.

DISASSEMBLY

● Remove the front stop switch.

● Remove the piston boot, cir clip from the master

cylinder.

TOOL : SNAP RING PLIERS

FRONT STOP SWITCH

BRAKE HOSE

OIL BOLT

MASTER CYLINDER
