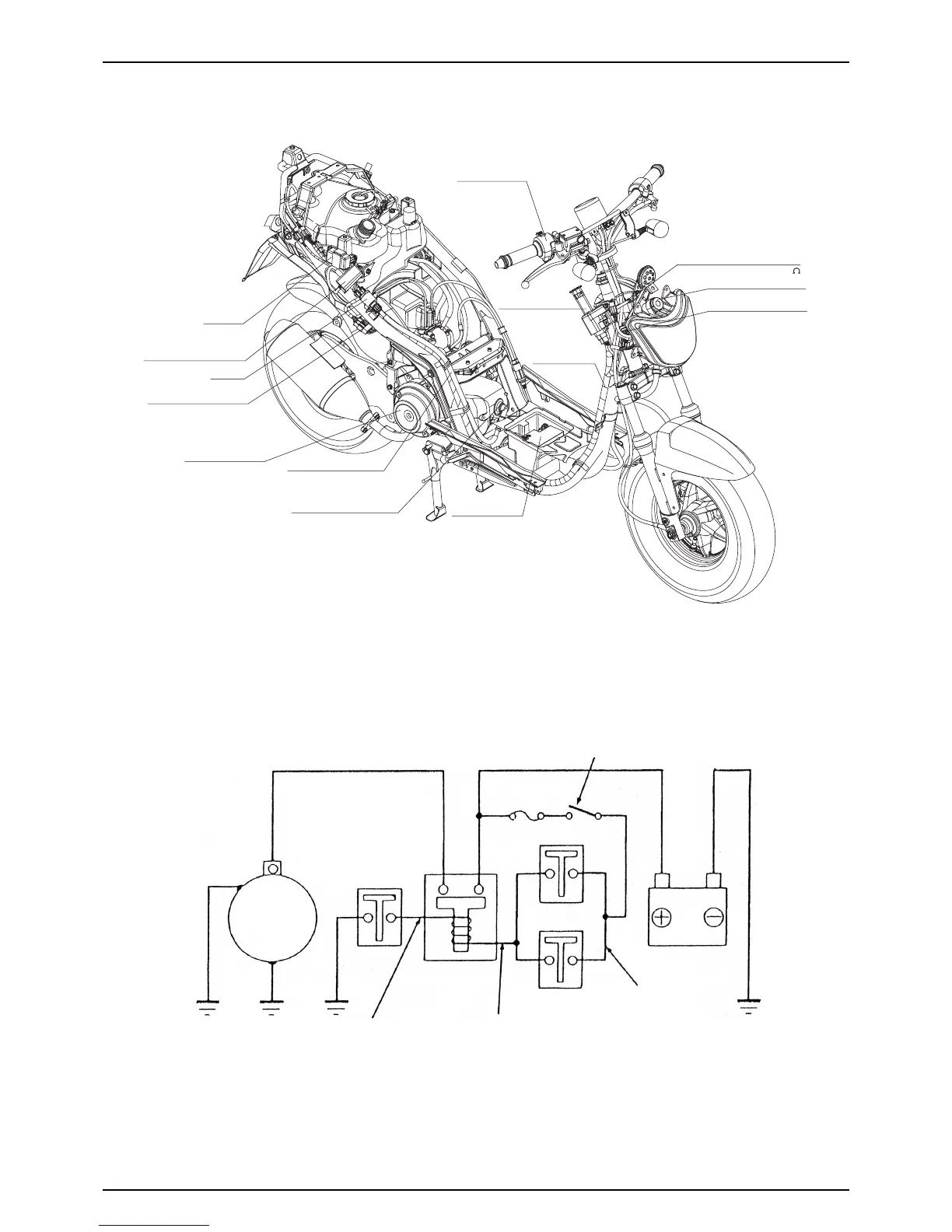

STARTING DEVICES LOCATION
15-2
STARTING SYSTEM
START SWITCH
RESISTOR
AUTO BY STARTER 5W 6.7
WINKER REALY, ASS’Y
REGULATOR RECTIFIER
CDI UNIT
STARTER REALY, ASS’Y
IG COIL
ACG. CORD COUPLER
A.C.GENERATOR
HIGH TENSION CORD
SPARK PLUG CAP ASS’Y
BATTERY ASS’Y
COMB. & LOCK SW
WIRE HARNESS
RED/WHITE
YELLOW/RED
GREEN/YELLOW
GREEN/YELLOW
BATTERY
FRONTSTOP
SWITC
H
STARTER
RELAY
MAINSWITCH
RED
GREEN
GREEN
BLACK
FUSE
REARSTOPSWITCH
STARTER
SWITCH
STARTER
MOTOR
