DAELIM a.four - Page 172

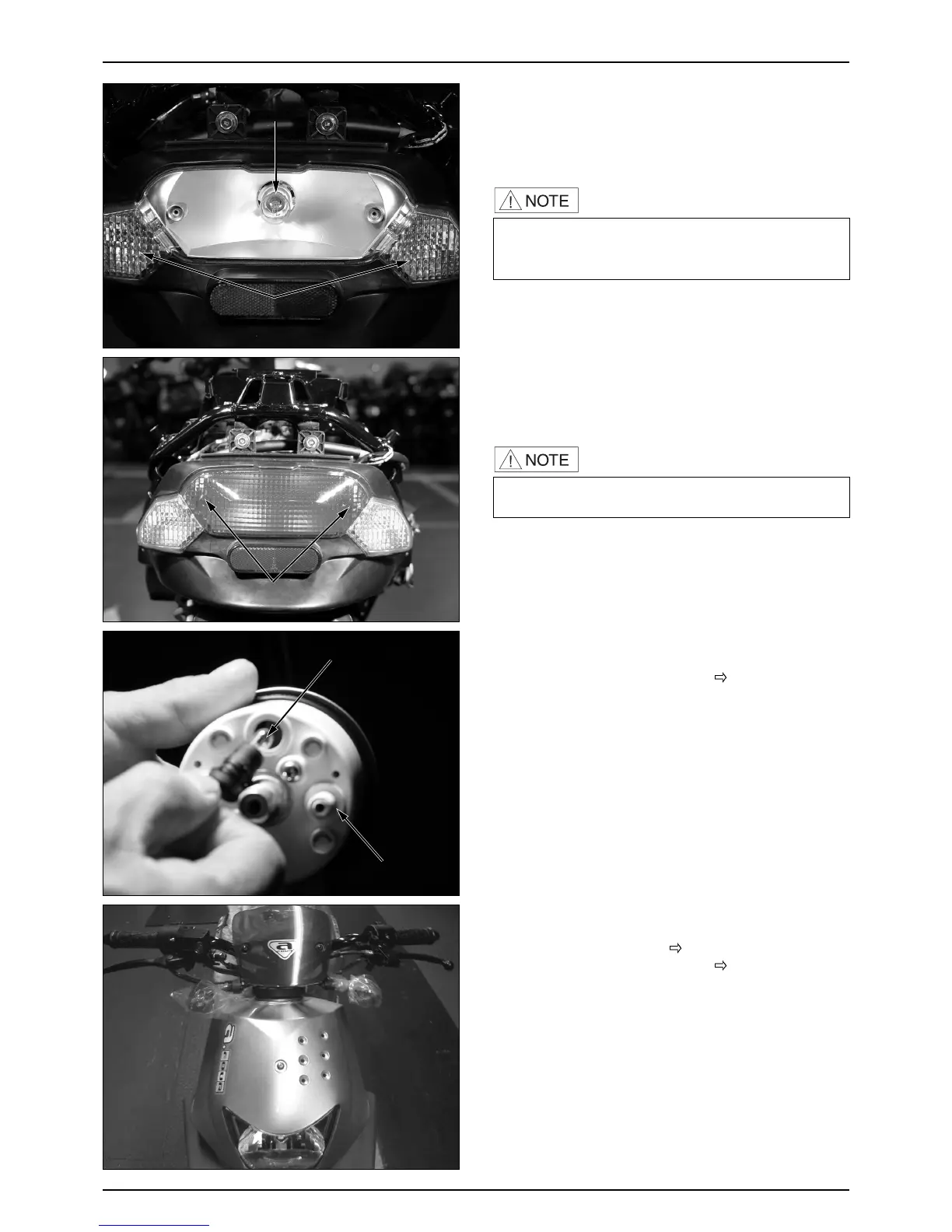

REAR WINKER BULB REPLACEMENT
● Press the winker lens groove and open the winker lens
using plain screwdriver.
● Remove the bulb from the socket, replace with new bulb.
● Install in the reverse order of removal.
·Pay attention not to damage the lens.
·Do not apply excessive force when removing the
lens.
TAILLIGHT BULB REPLACEMENT
● Loosen the 2 pan screws, remove the tail light lens.
● Replace the tail stop light bulb with the new one.
·Pay attention not to damage the tail light lens when
removing it.
METER BULB REPLACEMENT
● Remove the front handle cover. ( 3-6 )
● Remove the bulb socket, replace with new bulb.
METERS REPLACEMENT
● Remove the front cover. ( 3-5 )
● Remove the front handle cover. (
3-6 )
● Remove the front/rear stop swtich wire.
● Remove the speedometer cable from the meter.
● Loosen the 4 steering handle tapping screws.
● Remove the speedometer coupler connected to the wire
harness
● Remove the speedometer wiring from the steering
handle cable guide.
● Remove the speedometer and the gear handle cover
assemblied from the steering handle.
16-6
LIGHTS/METER/SWITCHES
TAILLIGHT BULB
TAILLIGHT BULB
TAILLIGHT BULB
TAILLIGHT BULB
TAILLIGHT BULB
TAILLIGHT BULB
TAILLIGHT BULB
TAILLIGHT BULB
TAILLIGHT BULB
TAILLIGHT BULB
TAILLIGHT BULB
TAILLIGHT BULB
TAILLIGHT BULB
TAILLIGHT BULB
TAILLIGHT BULB
TAILLIGHT BULB
TAILLIGHT BULB
TAILLIGHT BULB
REAR WINKER
REAR WINKER
REAR WINKER
REAR WINKER
REAR WINKER
REAR WINKER
REAR WINKER
REAR WINKER
REAR WINKER
REAR WINKER
REAR WINKER
REAR WINKER
REAR WINKER
REAR WINKER
REAR WINKER
REAR WINKER
REAR WINKER
REAR WINKER
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SPEEDOMETER
SPEEDOMETER
SPEEDOMETER
SPEEDOMETER
SPEEDOMETER
SPEEDOMETER
SPEEDOMETER
SPEEDOMETER
SPEEDOMETER
SPEEDOMETER
SPEEDOMETER
SPEEDOMETER
SPEEDOMETER
SPEEDOMETER
SPEEDOMETER
SPEEDOMETER
SPEEDOMETER
SPEEDOMETER
BULB
BULB
BULB
BULB
BULB
BULB
BULB
BULB
BULB
BULB
BULB
BULB
BULB
BULB
BULB
BULB
BULB
BULB
