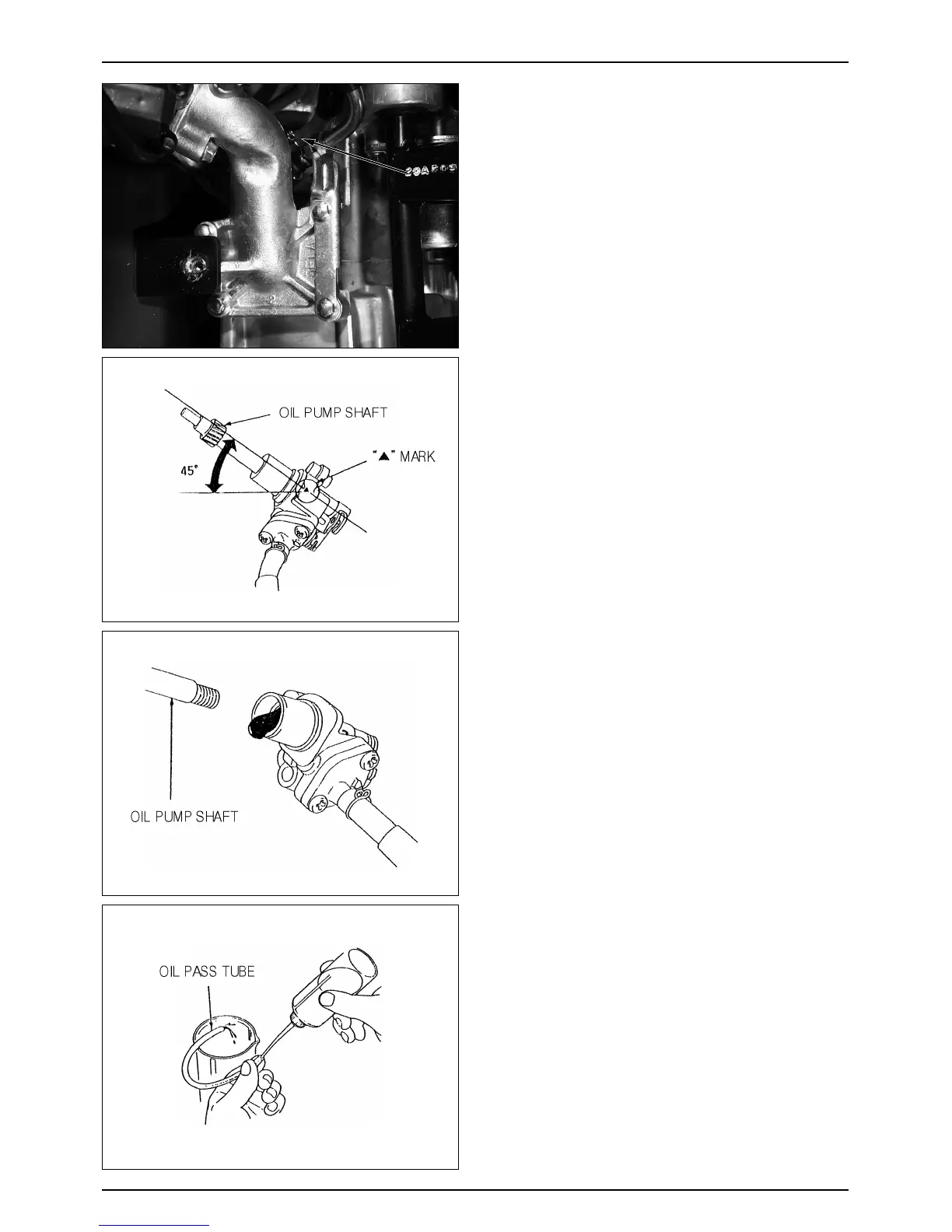

OIL PUMP/OIL TUBE INSPECTION
● Fill the oil tank with engine oil.
● Cap around the oil pump and the carburetor with dry
cloth.
● Locate the end of the oil tube in the level lower than the
oil tank and drain the oil to bleed the air.
● Install the oil tube in the oil pump.
●Incline the oil pump to locate the oil pump shaft at the
angle of 45。from the “▲”mark with oil tube
connected.
●In this state, locate the oil pump in the level lower
than the oil tank and drain the oil to bleed the air.
●Install the oil pump shaft in the oil pump after
completing the bleeding.
●Install the oil pump in the crankcase.
OIL PASS TUBE INSPECTION
● Bend the oil pass tube in the “U” shape, keep the two
ends parallel with each other and fill the oil pass tube
with the oil.
4-5
LUBRICATION SYSTEM
OIL TUBE
OIL TUBE
OIL TUBE
OIL TUBE
OIL TUBE
OIL TUBE
OIL TUBE
OIL TUBE
OIL TUBE
OIL TUBE
OIL TUBE
OIL TUBE
OIL TUBE
OIL TUBE
OIL TUBE
OIL TUBE
OIL TUBE
OIL TUBE
