5-5
FUEL SYSTEM
WASHERSCREW
AUTOBYSTARTER
SETPLATE
AIRSCREW
THROTTLE
STOP
SCREW
GASKET
O-RING
FLOATPIN
FLOAT
FLOAT
VALVE
FLOAT
CHAMBER
AUTOBY
STARTERCOVER
AUTOBY
STARTER
FLOAT LEVEL
GAUGE
MAIN JET
THROTTLE
STOP SCREW
AIR SCREW
WASHER
O-RING
SLOW JET
FLOAT VALVE
FLOAT

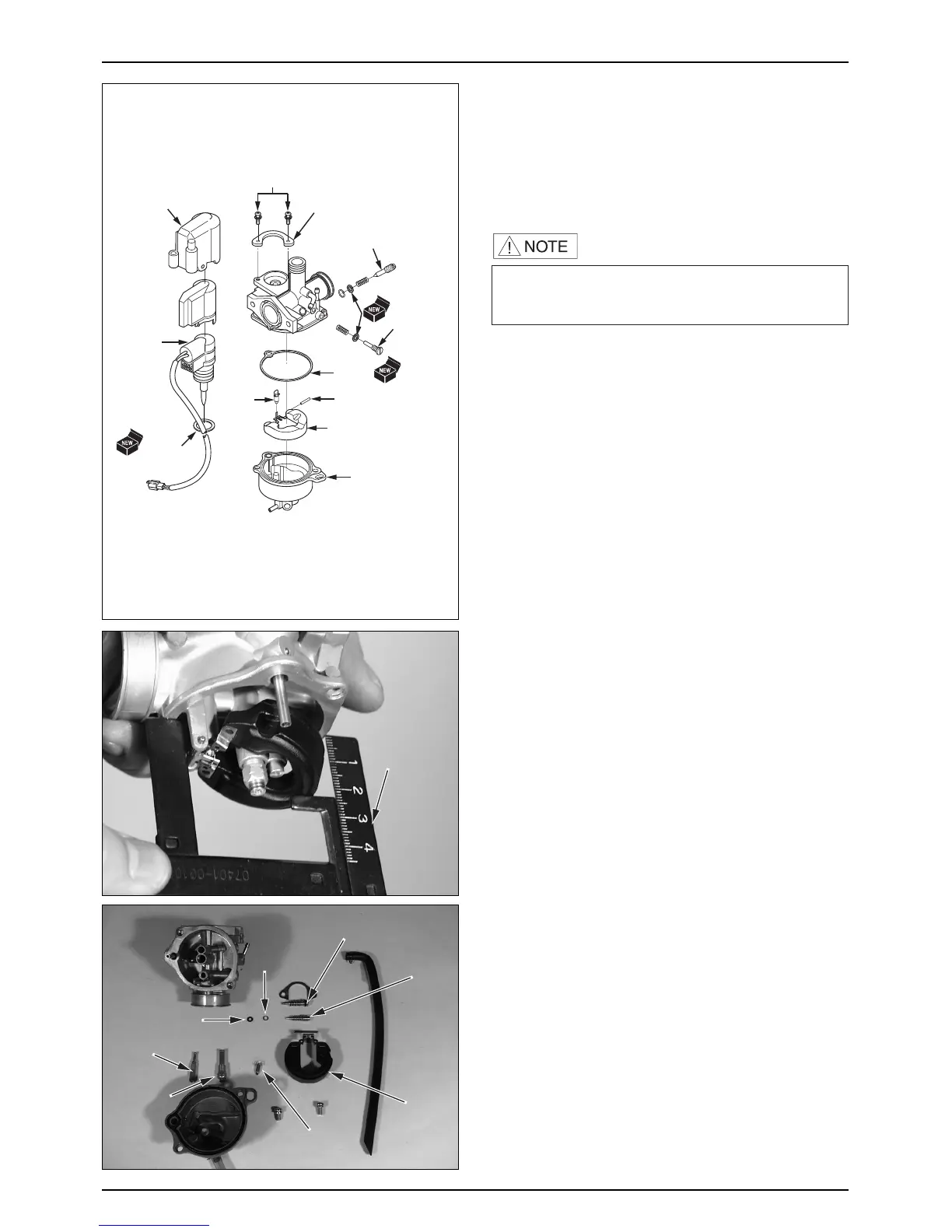

CARBURETOR DISASSEMBLY/ASSEMBLY
● Remove the auto by starter cover.
● Loosen the 2 washer screws
● Remove the auto by starter set plate.
● Remove the auto by starter.
● Remove the auto by starter O-ring.
● Assemble in the reverse order of disassembly.
•Install the auto by starter in the carburetor body after
applying grease to the starter O-ring and then tighten
firmly with set plate piece.
FLOAT CHAMBER/FLOAT/JET
DISASSEMBLY/ASSEMBLY
● Loosen the 2 float chamber screws.
CHECK
● Float valves and seats for cracks or damage.
● Float valve operation.
● Float valve level.
FLOAT LEVEL : 8mm
REMOVE
● Main jet, needle jet holder, and needle jet, and remove
the slow jet.
● Air screw, spring, washer, O-ring.
● Throttle stop screw, spring, O-ring.
