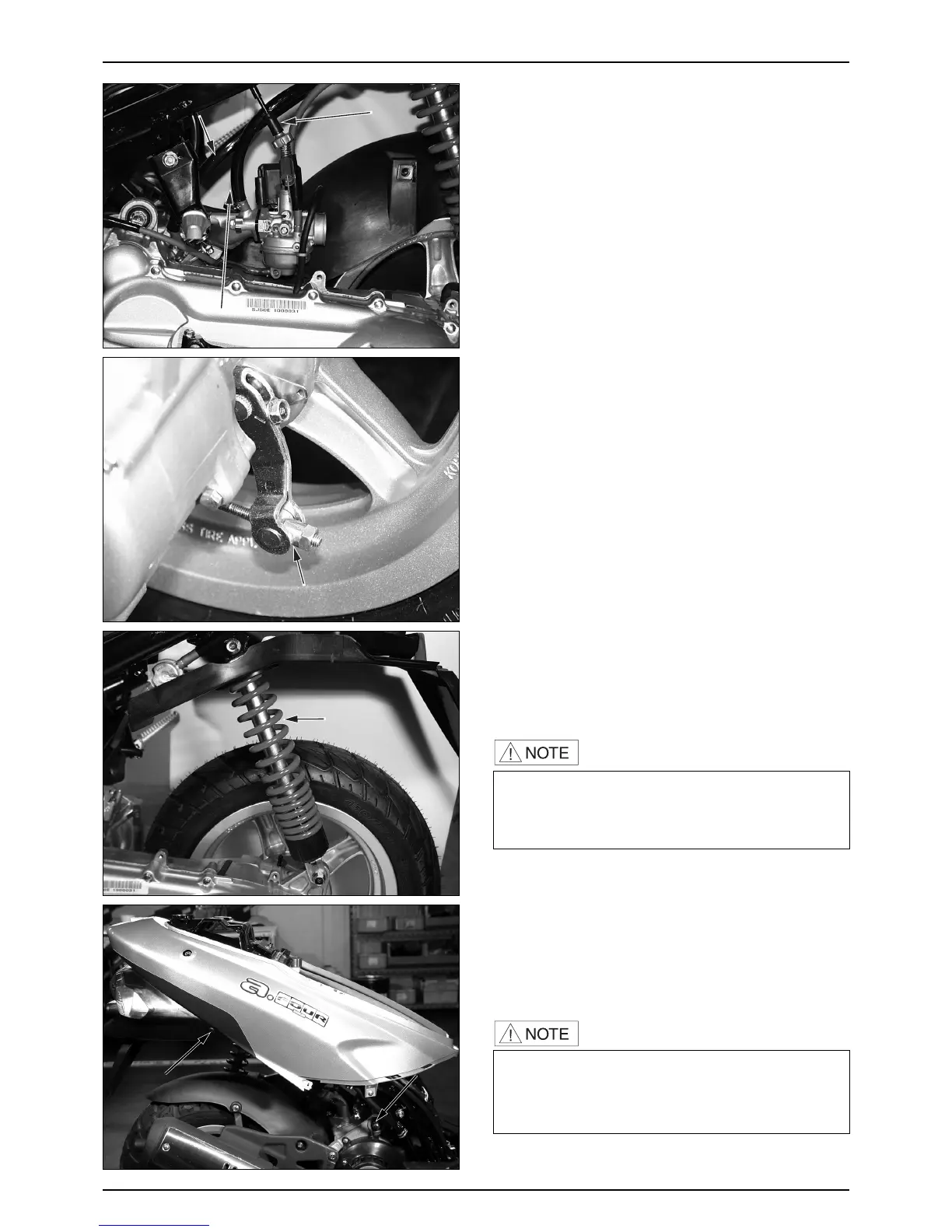

6-2
ENGINE REMOVAL/INSTALLATION
CAP TOP
NEGATIVE PRESSURE TUBE
OIL TUBE
ADJUSTER NUT
REAR
CUSHION
ENGINE REMOVAL/INSTALLATION
Remove
- Luggage box. (3-3 )
- Plug maintenance cover. (3-3 )
- Center cover. (3-3 )
Disconnect
- AC generater coupler. (13-7 )
- Carburetor auto bystarter coupler.
Remove
- Spark plug cap.
- Oil pump cable.
- Oil tube connected to the oil pump.
- Negative pressure tube connected to the inlet pipe.
- Fuel tube connected to the carburetor.
Loosen the carburetor cap top, remove the throttle valve.
Loosen the rear brake adjust nut, remove the brake arm
joint B and rear brake cable.
Remove the bottom rear cushion under bolt.
Loosen the engine hanger U-nut.
Loosen the engine hanger flange bolt.
Remove the engine. (with the muffler and rear wheel
attached)
Take action to prevent oil from leaking (Install the
clip in the oil tube)
Take precautions not to damage the engine when
removing the engine from the chasis.
REMOVE
Muffler. (3-7 )
Rear wheel. (11-3 )
Install in the reverse order of removal.
Pay attention not to damage wiring and cable and not
to damage the threded part of bolts.
Arrange the cable tubes and wiring in the right
positions.
