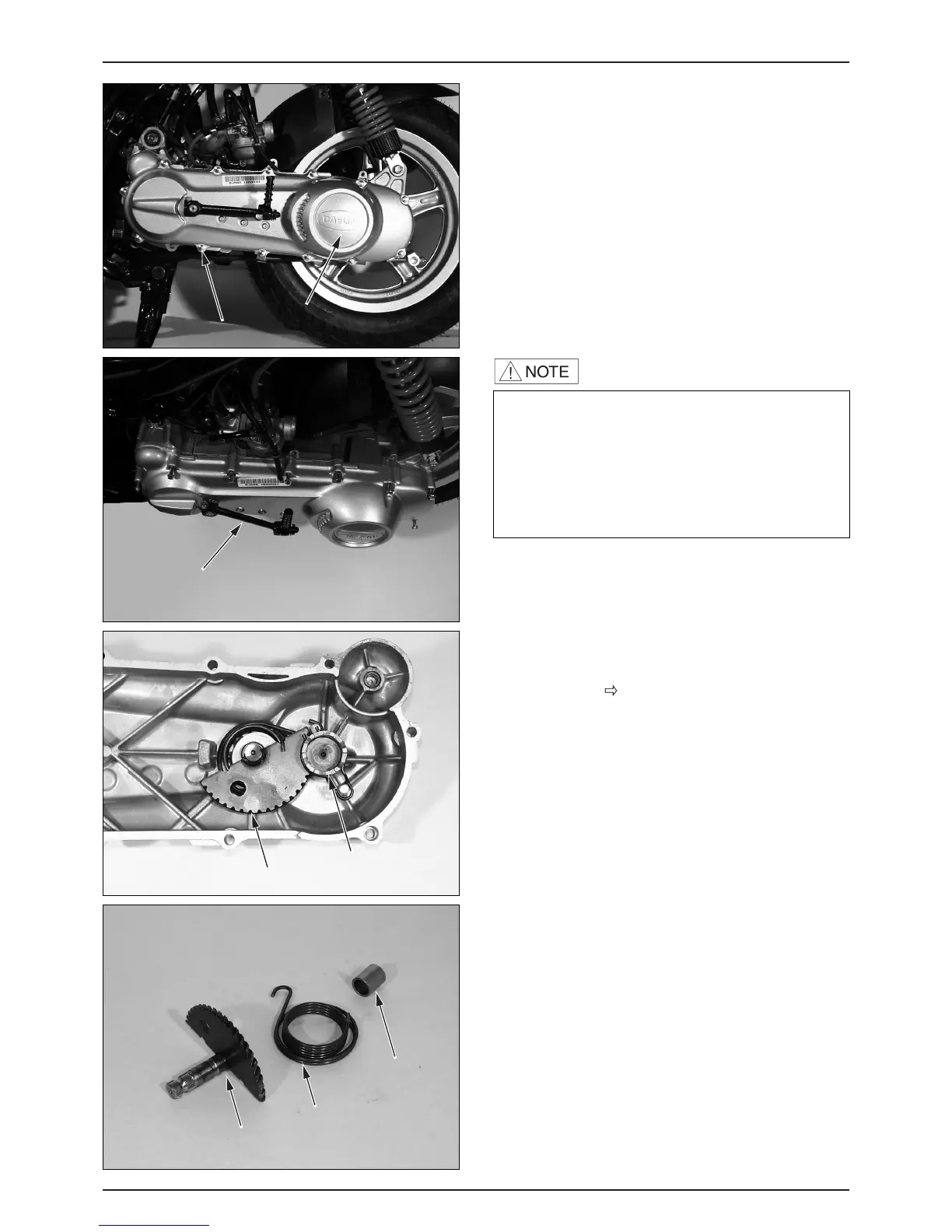

L. SIDE COVER REMOVAL
● Remove
- 13 flange bolts securing L. side cover.
- Rear brake cable clamp.
- L. side cover gasket.
- Dowel pin.
● Install in the reverse order of removal.
·Install the new gasket and dowel pin after removing
the gasket of the crankcase surface.
·Align the bolts to uniform the tightening location
before tightening then when you don’t know the bolt
length.
·Tighten the bolts diagonally with specified tightening
torque.
TORQUE : 1.0kgf
·
m
KICK STARTER
● Remove
- L. side cover. (
7-2 )
- Kick starter ratchet and the thrust washer while rotating
the kick starter arm.
● Loosen the flange bolt securing the kick starter arm,
remve the kick starter arm.
● Remove
- 14mm external circlip.
- Kick spindle washer.
- Kick starter spindle.
- Kick spindle spring, bush.
INSPECTION
● Wear and damage of the kick starter spindle and gear
portion.
● Damage to return spring.
● Defects and damage of the kick starter spindle bushing.
● Wear and damage of the kick starter ratchet.
● Damage to friction spring.
