DAELIM a.four

TRANSMISSION

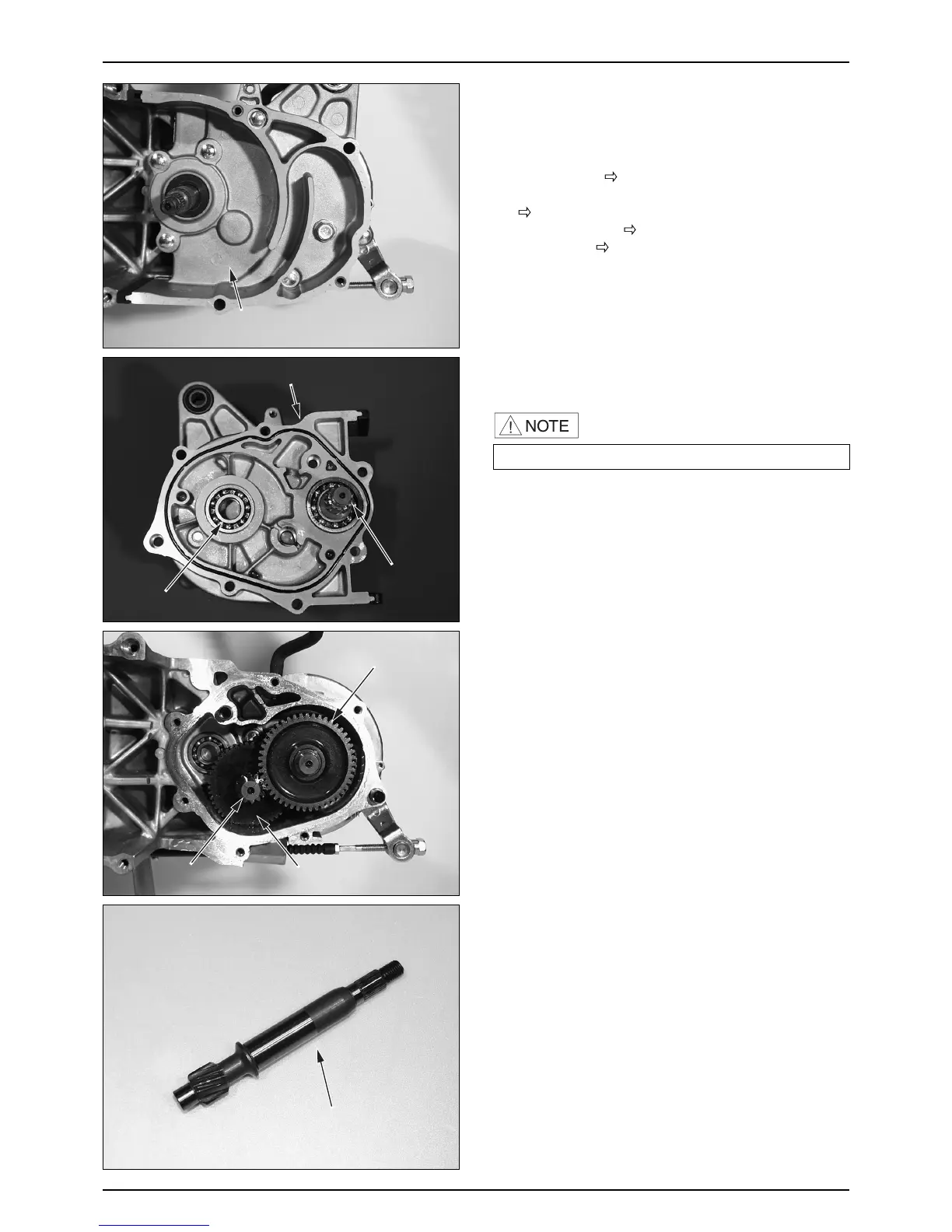

DISASSEMBLY
● Remove
- L. side cover. (
7-2 )
- Continuously variable transmission.
(
SECTION 7 )
- Exhaust muffler. (
3-7 )
- Rear wheel. (
11-3)
● Install the oil sump under the cover of transmission.
● Loosen the 6 transmission cover flange bolts.
● Remove
- Transmission cover.
- Mission cover guide ruber.
- Drive shaft from the transmission cover by using a
hydraulic press.
·Take precautions not to damage the cover joints.
● Remove the oil seal of the drive shaft.
REMOVE
● Final shaft gear.
● Thrust washer.
● Countershaft.
● Counter shaft gear.
● Side washer.
INSPECTION
● Inspect the drive shaft for wear or damage.
9-2
TRANSMISSION/CRANKSHAFT/CRANKCASE
MISSION COVER
6202 BEARING
6203
BEARING
MISSION COVER SEAL
COUNTER GEAR
COUNTER SHAFT
FINAL GEAR
DRIVE SHAFT
