DAELIM ROADWIN VJ125 - Muffler;Exhaust Pipe Installation; Front Fender

12-5
EXTERNAL PARTS
INSTALLATION
● Install the removed parts in the reverse order of
removal.

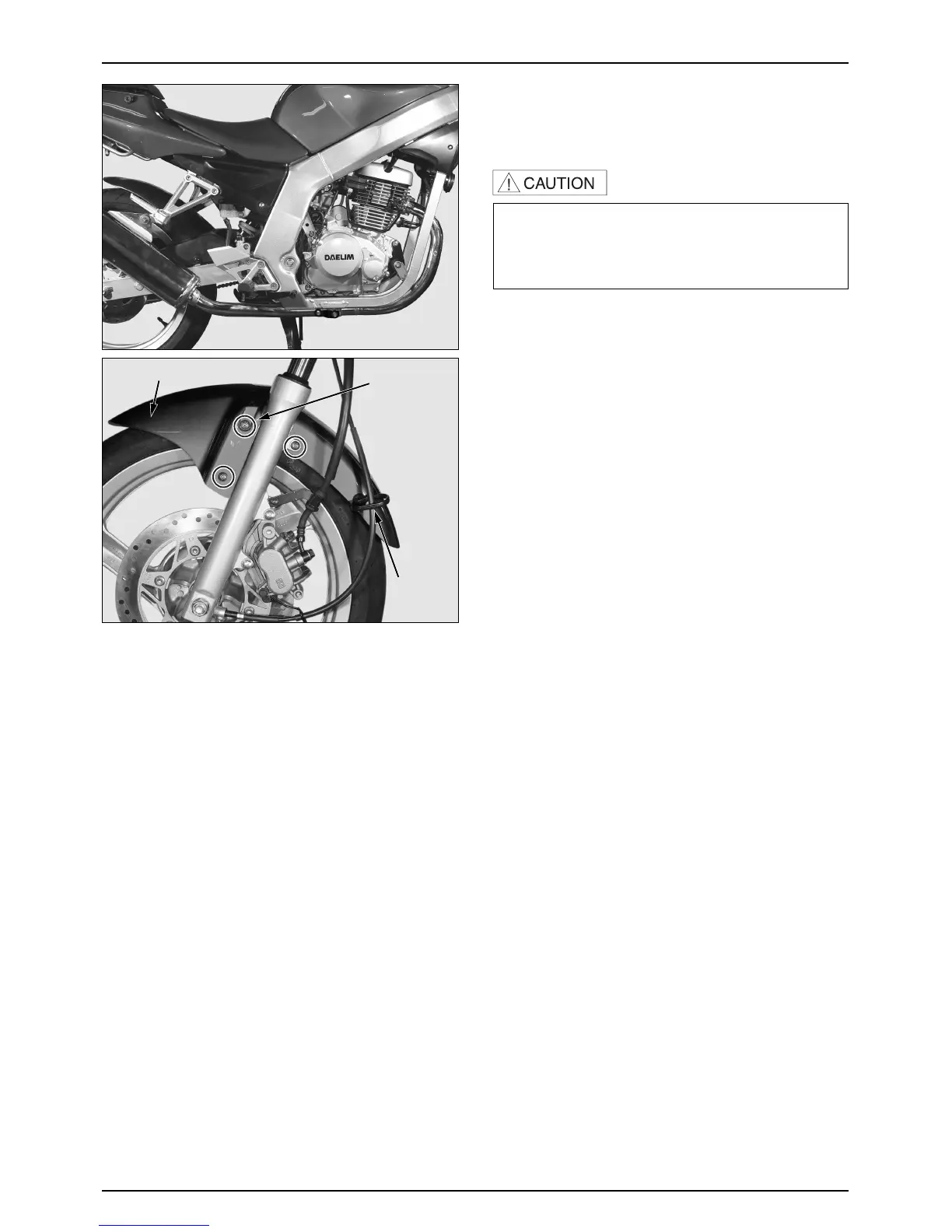

FRONT FENDER
● Remove the wire grommat from the front fender.
● Remove the front fender mounting special screws.
● Remove the front fender forward.
● Installation is in the reverse order of removal.
󳢯Check the protrusion of the exhaust pipe stud bolt.
󳢯Install the new exhaust pipe gasket onto the exhaust
ports of the cylinder head.
󳢯Install the new gasket onto the exhaust pipe.
