DAELIM ROADWIN VJ125 - Radiator Removal; Radiator Hose Inspection; Radiator Installation

5-2
COOLING SYSTEM

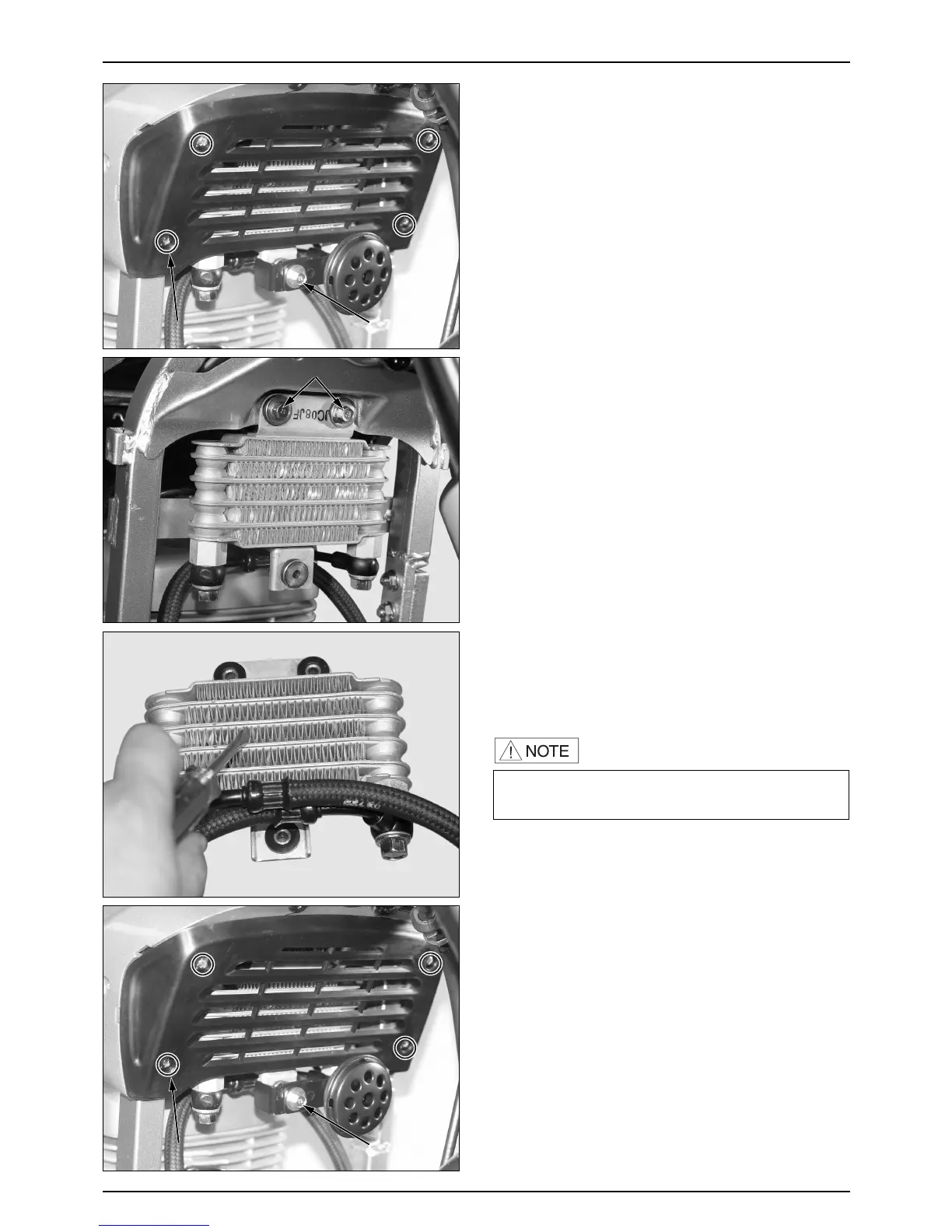

RADIATOR
REMOVAL
● Loosen the horn mounting bolt and remove the
horn.
● Loosen the 4 radiator cover mounting screws and
remove the radiator cover.
RADIATOR HOSE INSPECTION
● Check the radiator core for clog or damage.
● Check the pin for deformation; adjust it if
necessary.
INSTALLATION
● Install the removed parts in the reverse order of
removal.
● Check the hose or clamp for damage or
deterioration.
● Loosen the 2 flange bolts and remove the radiator
from the frame.
● Remove the oil through bolts from the cylinder and
RH. LH. radiator hose.
󳢯 Replace the radiator when the choked area of
radiator core is over 20% of radiant heat area.
