DAELIM ROADWIN VJ125 - Rear Master Cylinder Inspection

15-15
HYDRAULIC BRAKE

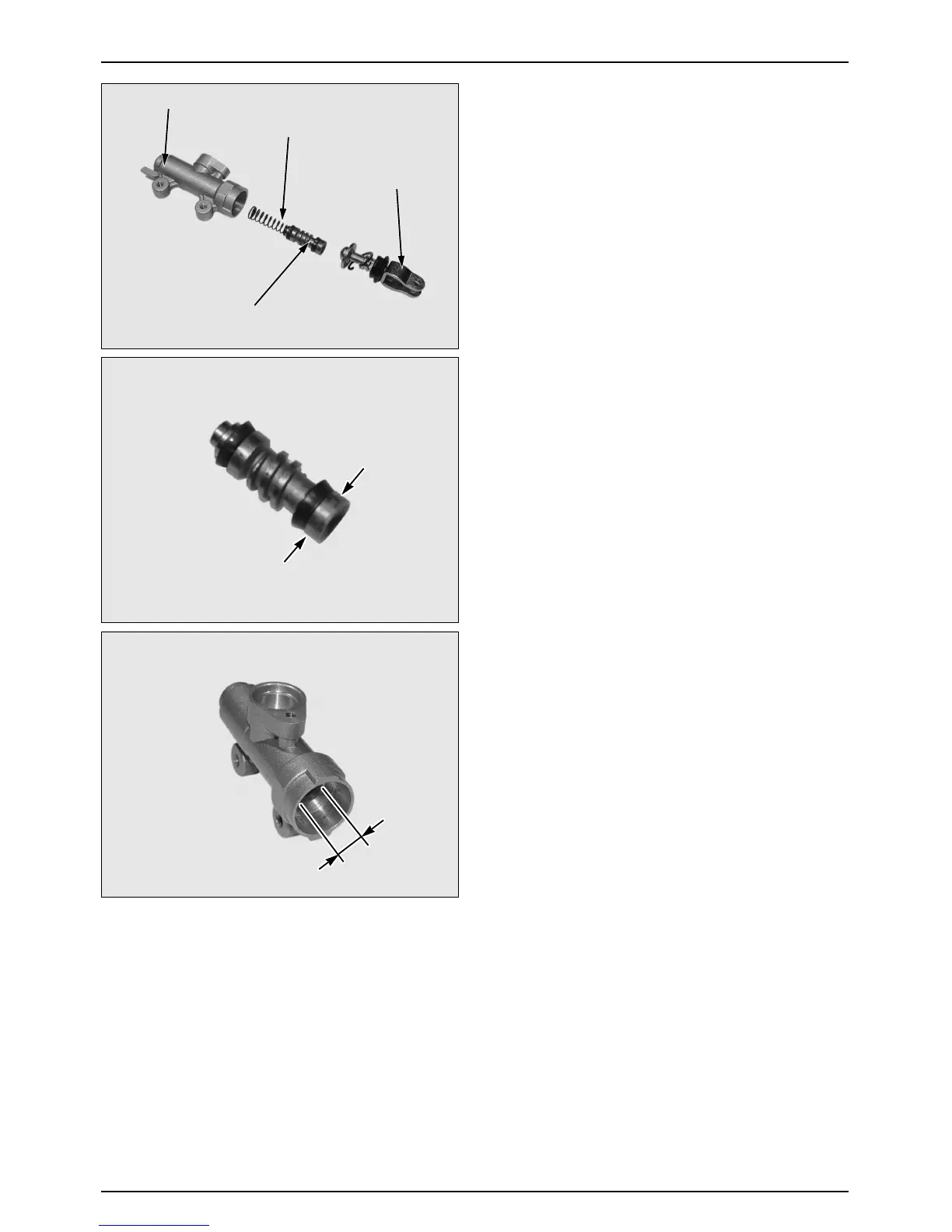

● Remove the brake rod joint, master piston and spring.
● Clean the inside of the cylinder with brake fluid.
INSPECTION
● Check the piston for abnormal scratches.
● Check the primary cup and secondary cup for fatigue
or damage.
● Measure the master cylnder piston O.D.
SERVICE LIMIT : 12.645mm
● Check the master cylinder for abnormal scratches.
● Measure the master cylinder I.D.
SERVICE LIMIT : 12.755mm
MASTER CYLINDER
MASTER CYLINDER
MASTER CYLINDER
MASTER CYLINDER
MASTER CYLINDER
MASTER CYLINDER
MASTER CYLINDER
MASTER CYLINDER
MASTER CYLINDER
MASTER CYLINDER
MASTER CYLINDER
MASTER CYLINDER
MASTER CYLINDER
MASTER CYLINDER
MASTER CYLINDER
MASTER CYLINDER
SPRING
SPRING
SPRING
SPRING
SPRING
SPRING
SPRING
SPRING
SPRING
SPRING
SPRING
SPRING
SPRING
SPRING
SPRING
SPRING
BRAKE ROD JOINT
BRAKE ROD JOINT
BRAKE ROD JOINT
BRAKE ROD JOINT
BRAKE ROD JOINT
BRAKE ROD JOINT
BRAKE ROD JOINT
BRAKE ROD JOINT
BRAKE ROD JOINT
BRAKE ROD JOINT
BRAKE ROD JOINT
BRAKE ROD JOINT
BRAKE ROD JOINT
BRAKE ROD JOINT
BRAKE ROD JOINT
BRAKE ROD JOINT
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
