DAELIM ROADWIN VJ125 - Starter Clutch Installation

8-6
A.C GENERATOR / STARTER CLUTCH

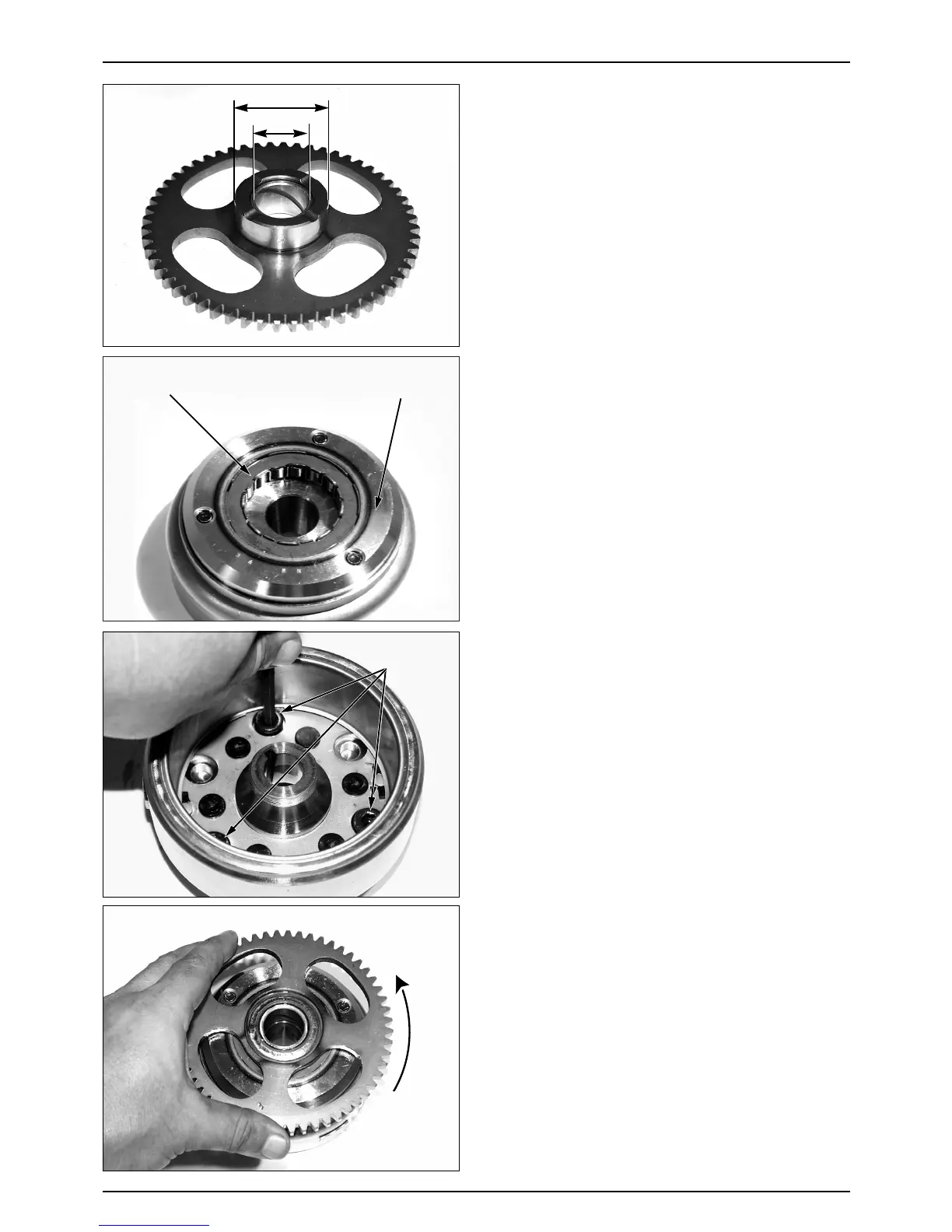

● Check the starter driven gear for damage or wear.
● Measure the starter driven gear I.D. and O.D.
SERVICE LIMIT : O.D. : 39.607mm
I.D. : 22.100mm
INSTALLATION
● Check the one-way clutch for wear or damage.
● Install the one-way clutch flange onto the clutch
outer.
● Apply a locking agent to the starter clutch outer
mounting bolt threads.
● Hold the flywheel with a flywheel holder, and
tighten the starter clutch mounting socket bolts.
TORQUE : 3.2kgf
··
m(32N
··
m)
● Install the starter driven gear into the one-way
clutch.
● Recheck the one-way clutch operation. (⇨8-5)
CLUTCH OUTER
FLANGE PART
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
SOCKET BOLTS
