DAELIM ROADWIN VJ125 - Battery;Charging System Diagram

16-0

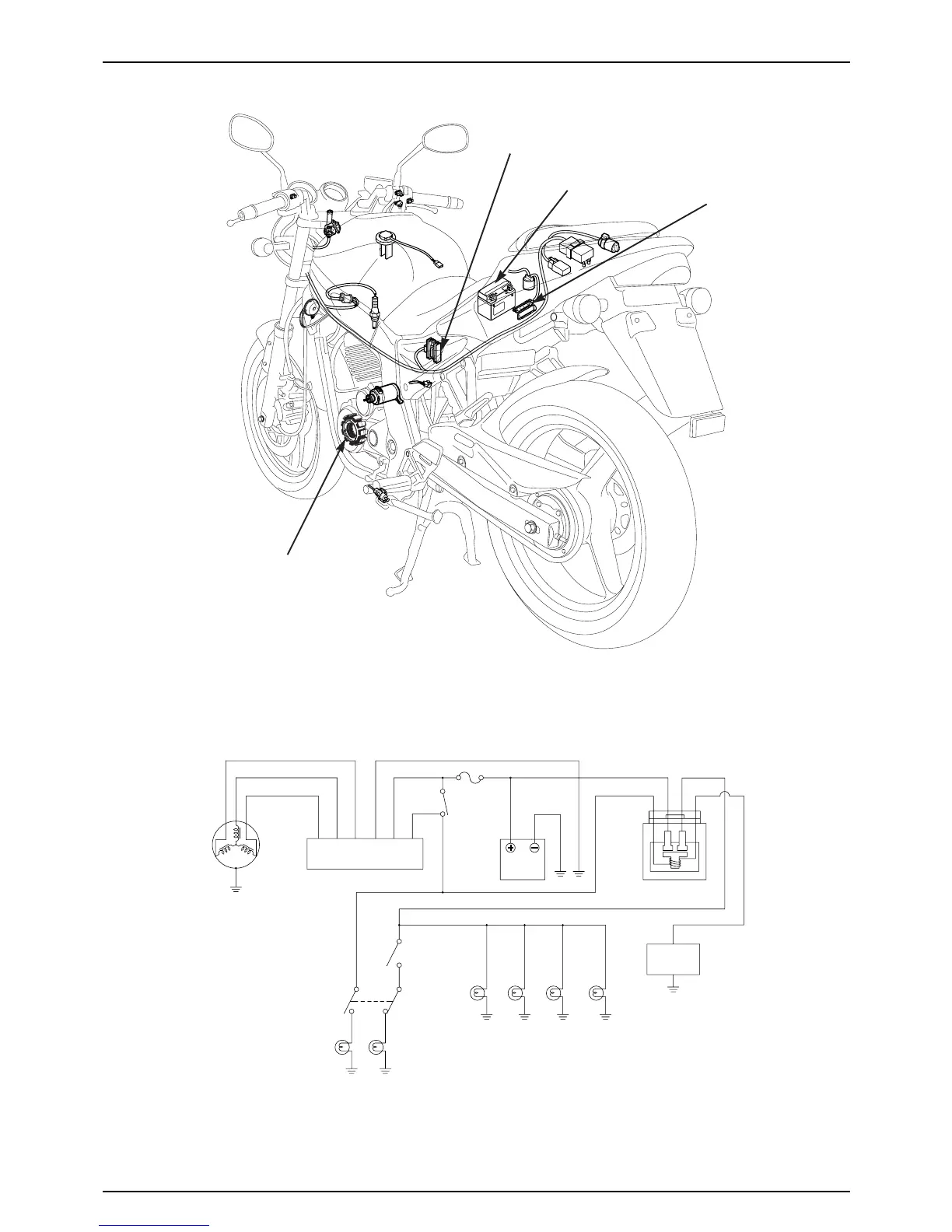

BATTERY/CHARGING SYSTEM
G
B
R
RR
B
P
P
B
B
L
(HIGH) (LOW)
W
LIGHTING
SWITCH
DIMMER SWITCH
Br/W
Br/W
Br/W Br/W Br/W Br/W
CDI UNIT
Br/W
B(CABLE)
HEADLIGHT
RELAY
HEADLIGHT
(12V 35/35W)
SPEEDOMETER ILLUM.
(12V 2W X 2EA, 12V 3W)
TAIL LIGHT
(12V 5W)
BATTERY
(12V 10AH)
Y
Y
A.C. GENERATOR
REG. RECTI.
MAIN
SWITCH
FUSE
(15A)
Y
B......Black
Y.......Yellow
L..... Blue
G..... Green
R......Red
W..... White
Br.....Brown
P..... Pink
BATTERY
A.C. GENERATOR
FUSE
REGULATOR/RECTIFIER
