13. Connect wi per motor co nnector an d fr ont
window washer hose located at floor plate
bottom.

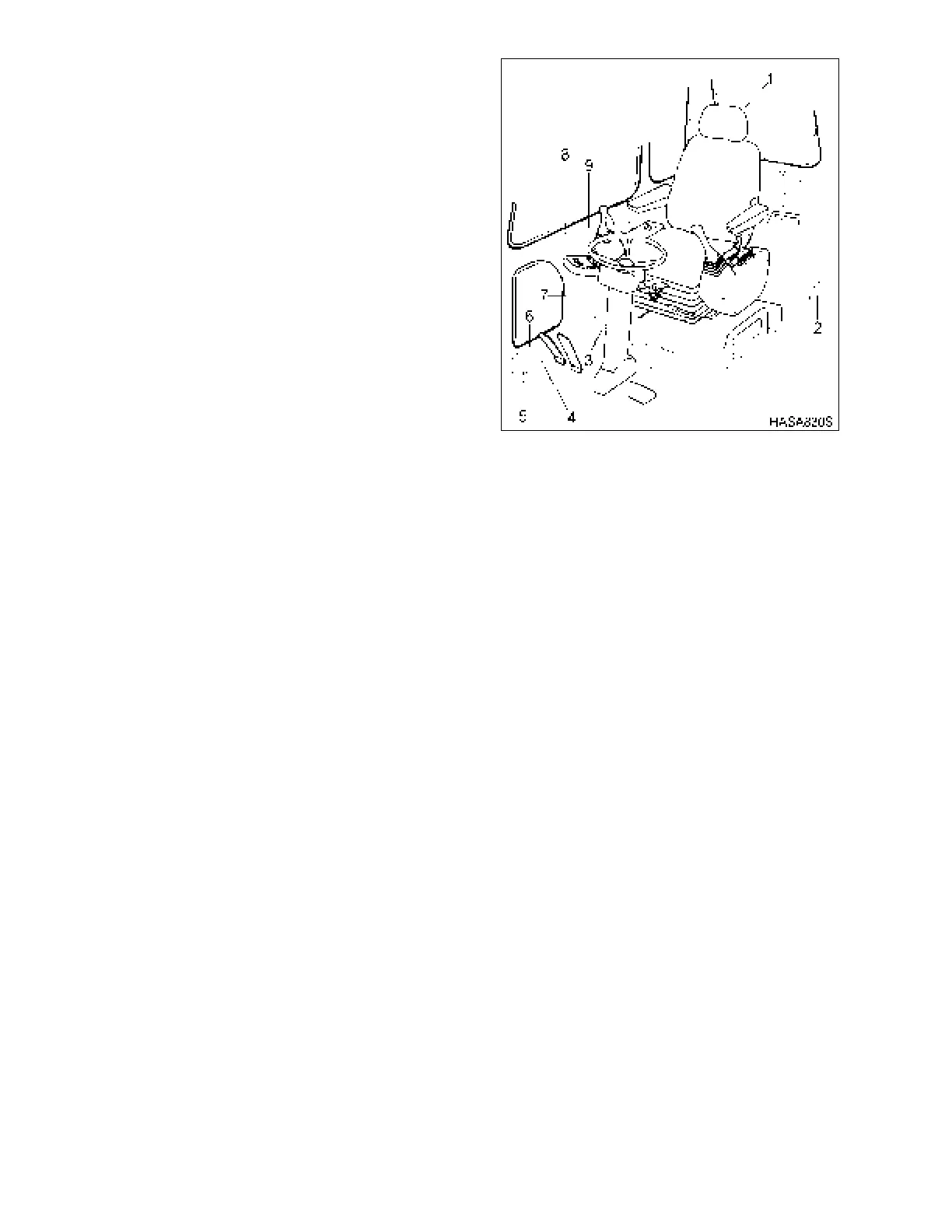

14. Install a ir du ct (3, 4 an d 8, Figu re 2)
located at right side of cab.
NOTE:
Connect d uct wi ring c onnector
before installing air duct (3).
15. Connect hour met er connector and in stall
duct covers (5, 6, 7 and 9, Figure 2).
16. Install operator’s seat (1, Figure 2).
NOTE:
Be ca reful not to dam age s eat
covering.
17. Install floor mat.
18. Disconnect neg ative ( -) b attery ca ble
leading to frame from battery.
