5.11 REMOVAL AND INSTALLATION, ELECTRONIC UNIT COOLING PLATE
When removing the cooling plate,
fuel will escape. Collect the fuel and
avoid the risk of fire.
Dirt in the fuel system can lead to
significant damage to parts of the
system. Prevent this by cleaning the
parts before disassembly and then
sealing all open connections.
Note:
The electronic unit, together with the cooling
plate, must first be removed from the engine
block, after which the cooling plate must be
demounted.
Removing electronic unit cooling plate
1. Disconnect the earth lead from the battery
terminal.
2. To prevent dirt from entering, first clean the
area around the fuel connections.
3. Remove the fuel pipes (1) on the cooling
plate of the electronic unit.
4. Uncouple the electrical connectors (2) from
the electronic unit and loosen the attachment
clip (3) from the cable harness.
5. Remove the attachment bolts by which the
electronic unit is fitted to the engine block.
6. Remove the electronic unit and cooling plate.
7. Remove the attachment bolts by which the
electronic unit is fitted to the cooling plate
and remove the cooling plate.
}
}

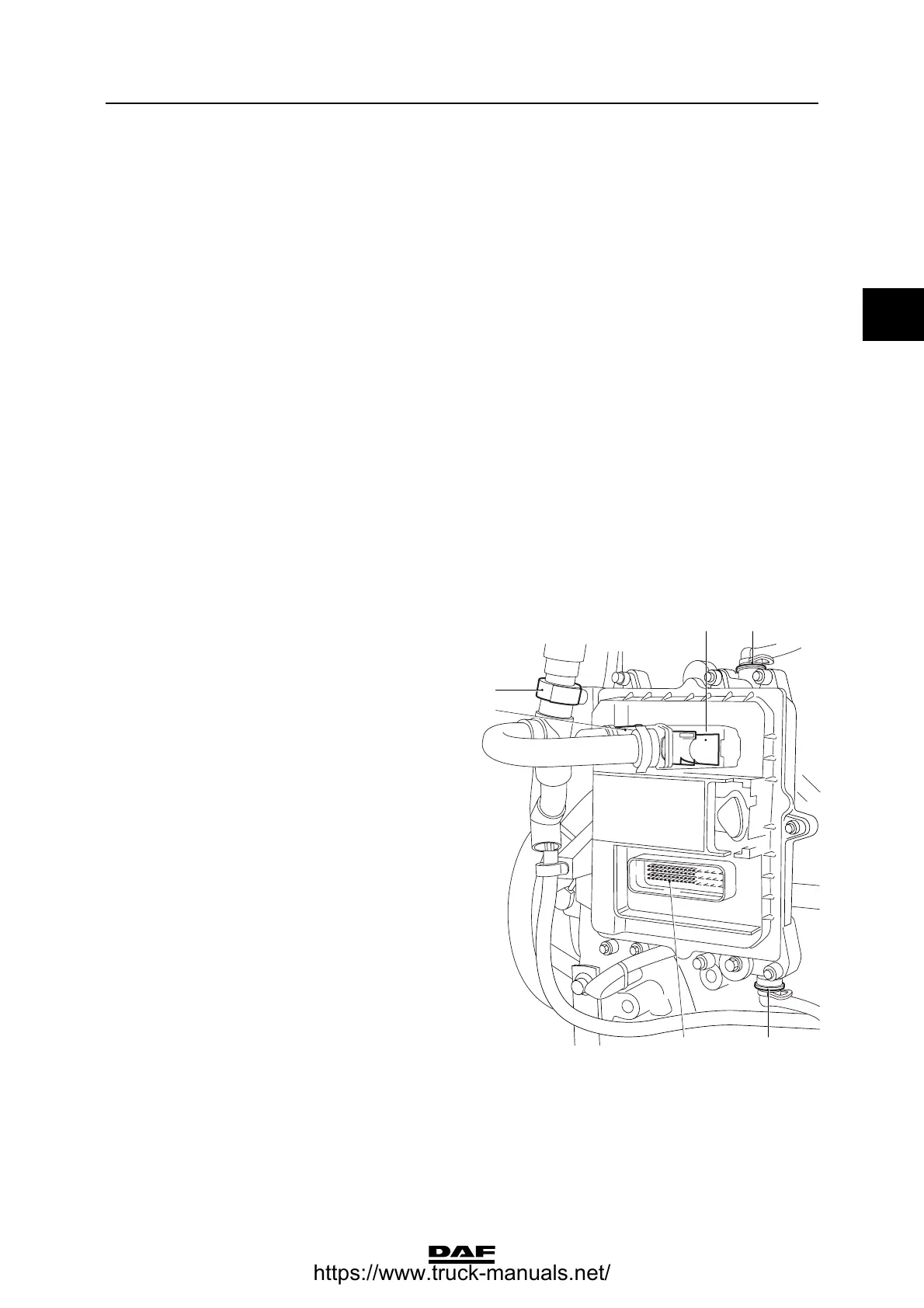

i400500
3
2 1
1
2
2
