5. CLEANING
5.1 CLEANING THE EXTERIOR OF RADIATOR/AIR COOLER
Inhalation of dust may have serious
consequences for your health. Take
the necessary precautions, such as
wearing goggles and a face mask.
Cleaning wire mesh
1. Remove the lower grille.
2. Remove the wire mesh.
3. Clean the wire mesh.
Cleaning, radiator/air cooler
With the aid of a simple tool, the radiator and the
air cooler can be blow-cleaned.
This tool can be made in your own workshop. It
cannot be ordered from DAF.

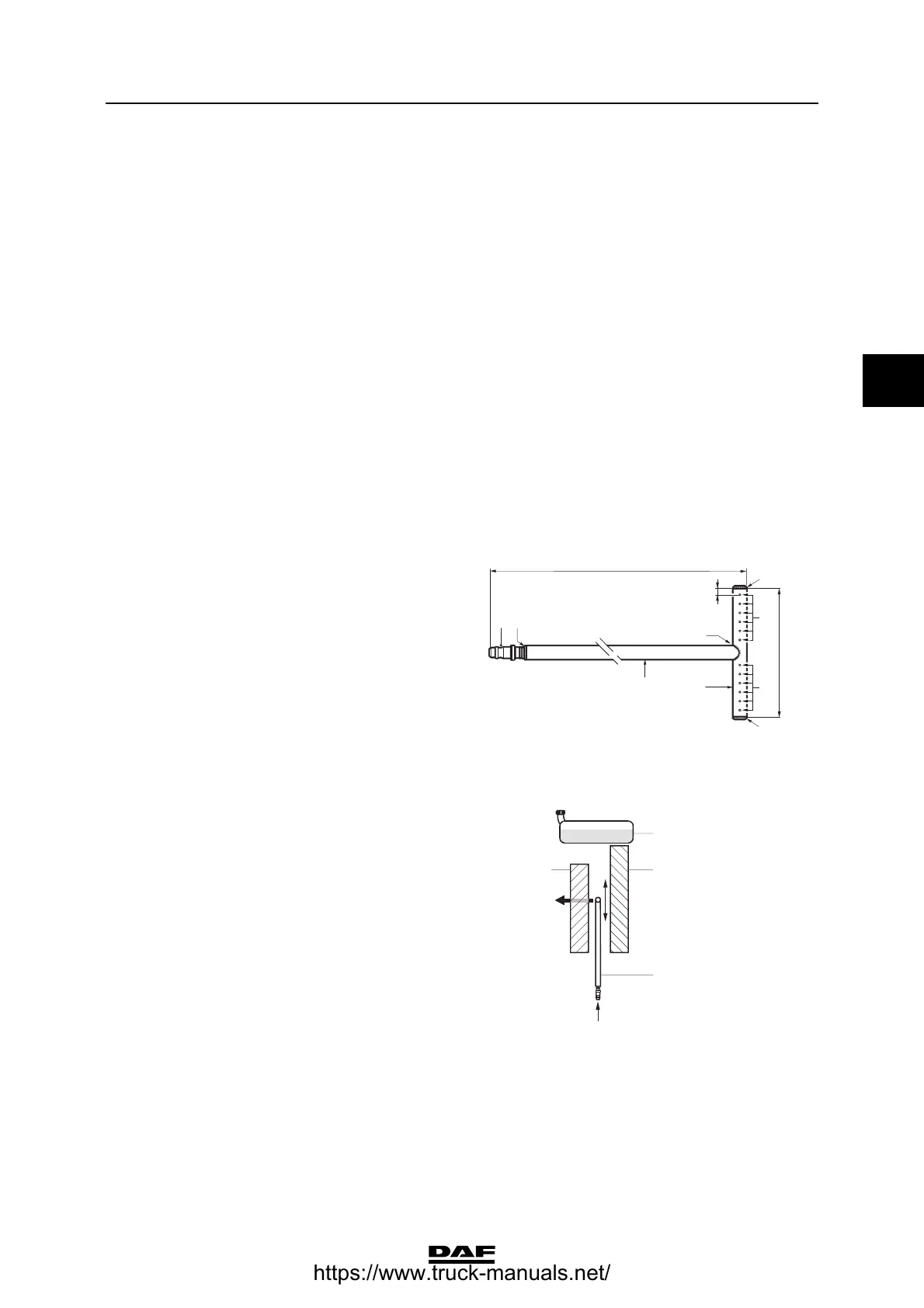

Key to drawing:
1. Solder up
2. Solder
3. Quick-release coupling for air hose
4. Steel pipe, ø 10 mm
5. 6 x ø 1.5 mm between holes, with a centre-
to-centre distance between the holes of 7
mm, drilled on one side
Note:
Make sure that the air cooler and radiator
element are not damaged when positioning the
radiator cleaner.
1. From below, insert the radiator cleaner (4)
between the air cooler (1) and the
radiator (2), with the air holes facing the
air cooler (1).
2. Apply air pressure to the radiator cleaner (4)
and continue blow-cleaning the air cooler (1)
until no more dirt comes out.
}
