CE ENGINE FUEL SYSTEM

4-2

200416

Inspection and adjustment

ΧΦ65/75/85 series

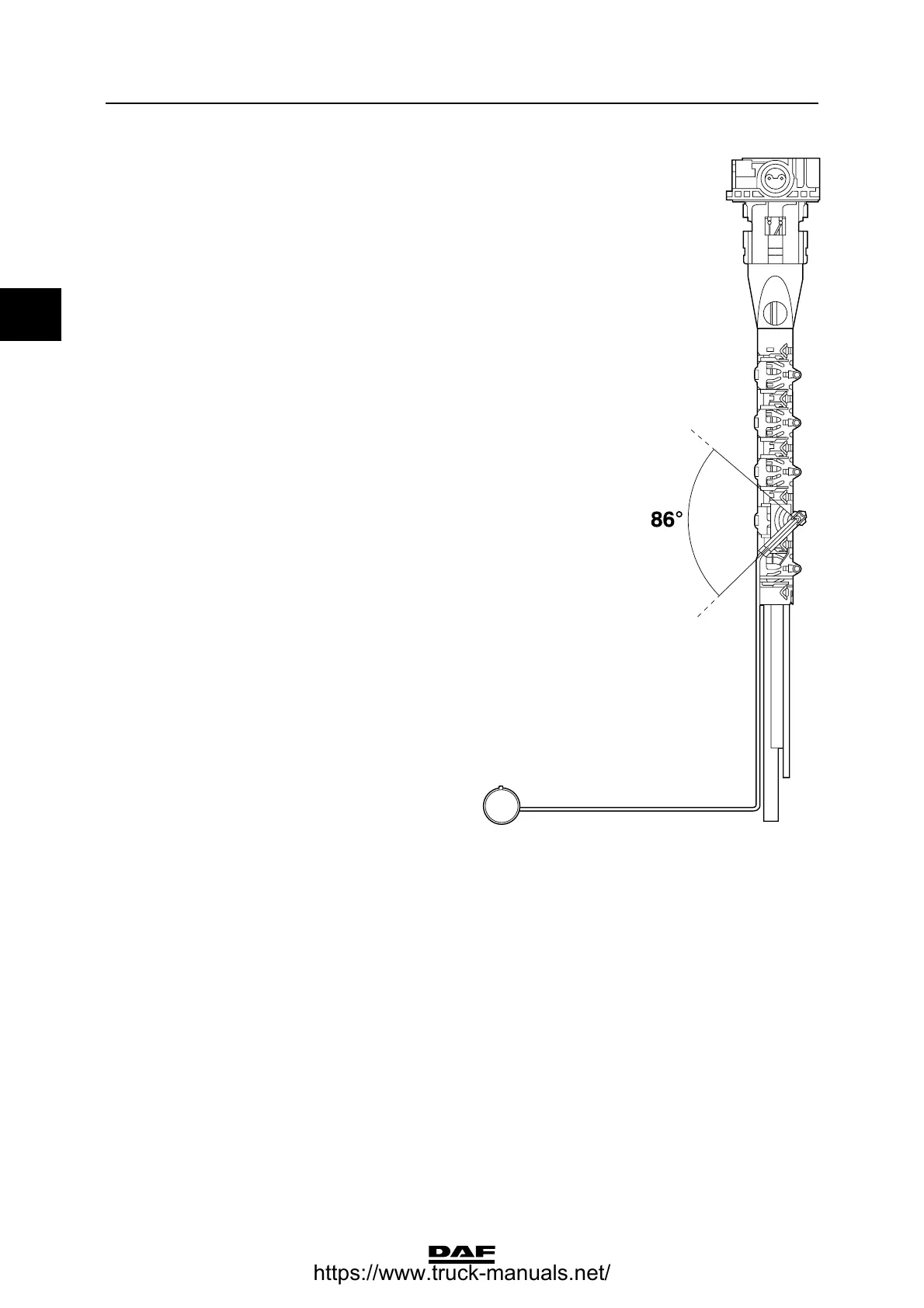

4. Remove the fuel level element.

5. Check the angular displacement of the fuel

level element and the resistance value. See

"Technical data".

I400141
