TECHNICAL DATA
8-2
©
200416
Engine brake, XE engine
0
ΧΦ65/75/85 series
4
8.2 TIGHTENING TORQUES
The tightening torques specified in this paragraph
are different from the standard tightening torques
cited in the overview of the standard tightening
torques. The other threaded connections not
specified must therefore be tightened to the
torque cited in the overview of standard
tightening torques.
When attachment bolts and nuts are replaced, it
is important - unless stated otherwise - that these
bolts and nuts are of exactly the same length and
property class as those removed.
DEB

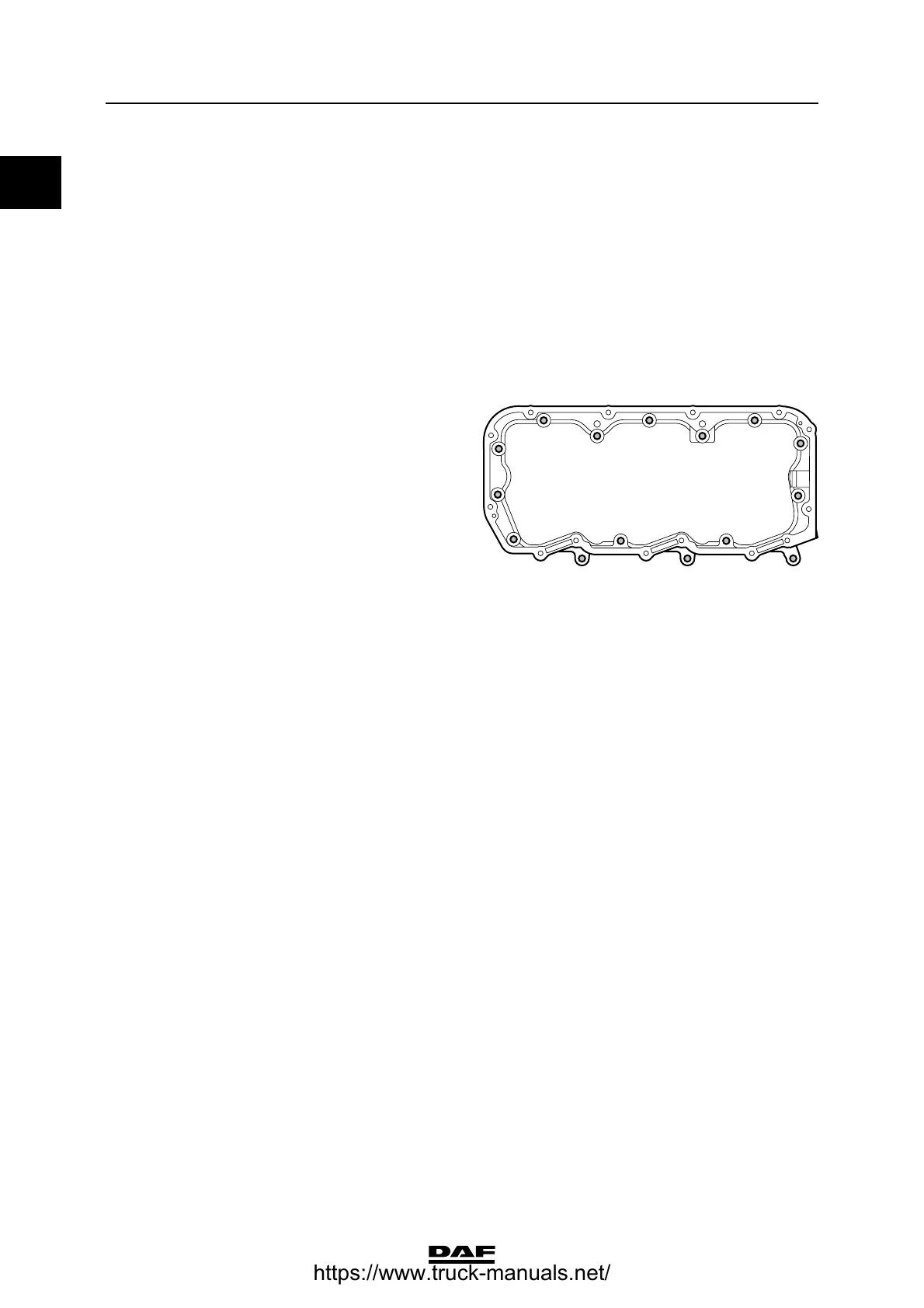

(1) Tighten the attachment bolts in the order indicated
Exhaust brake
(1) Fasten with Copaslip
(2) Use Loctite 243 to secure
1
5
2
6
41210
13
9157
11
814
3
M200942
Valve cover attachment bolts 25 Nm
Rocker setting bolt lock nut 40 Nm
Bridge piece setting bolt
lock nut 40 Nm
DEB attachment bolts 110 Nm
DEB set screw nut 25 Nm
Solenoid valve 20 Nm
Wiring harness attachment bolt 5 Nm
Spring plate attachment bolt 12.5 Nm
Valve sleeve attachment bolts 30 Nm
(1)
Exhaust brake elbow attachment nuts on turbo-
charger 40 Nm
(1)
Heat shield attachment bolts 30 Nm
(2)
