System Configurations 38
4.3.3 Adding Device
Add TV wall, matrix and decoder device at the network keyboard. Refer to "3.6 Adding Device"
for details.
4.3.4 Video on Wall
On the main interface, click TV Wall. Step 1
The TV Wall interface is displayed.
In the pull-down list, select TV wall. See Figure 4-29. Step 2

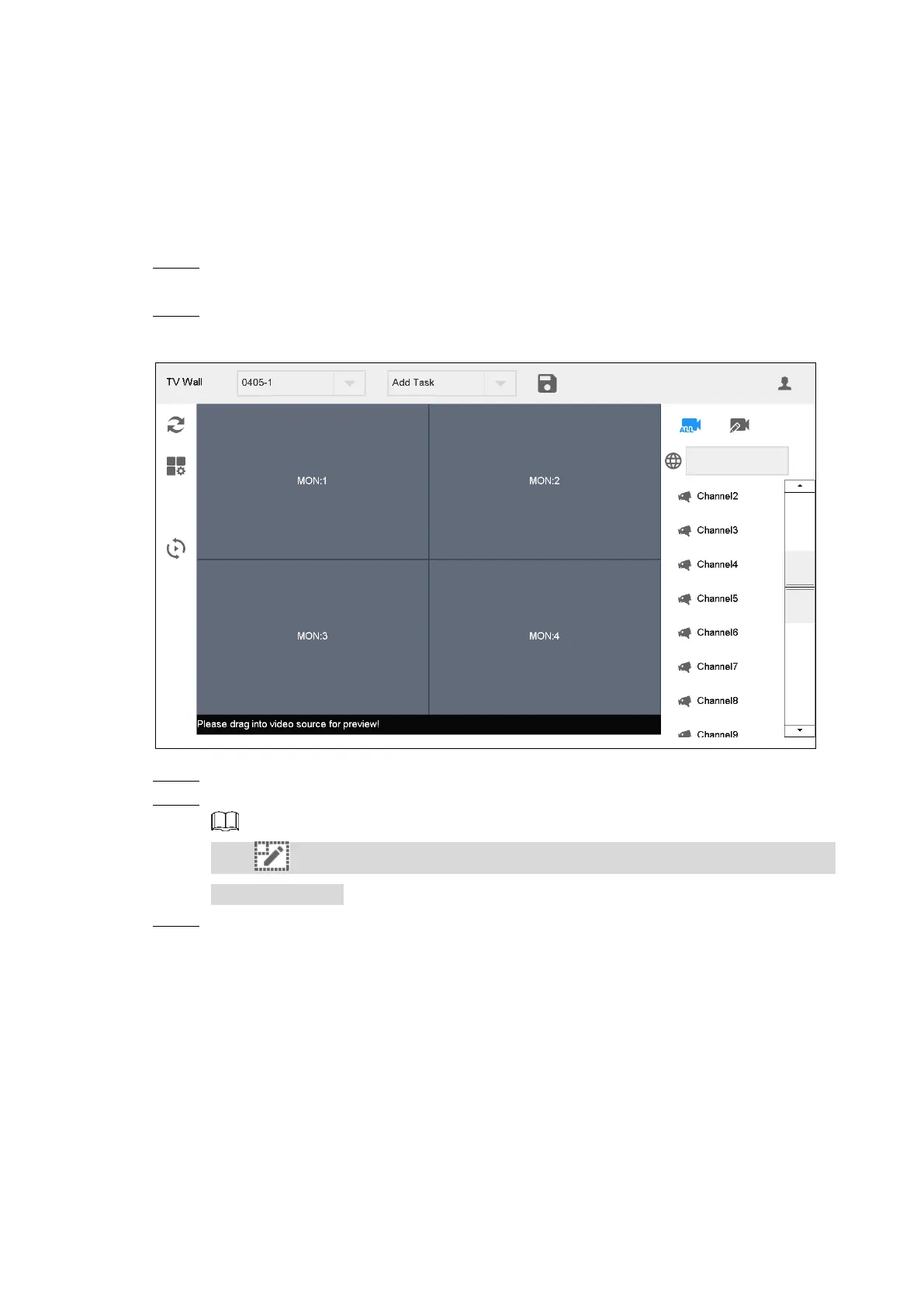

TV wall (screen) Figure 4-29
Click one screen in Figure 4-29, such as MON:1. Step 3
Split the screen. Step 4
Click , enter the line and column numbers, and customize the splicing. Maximum
splicing is 20×20.
Drag video source on the right onto TV wall. Step 5
The system displays relevant information. See Figure 4-30.
