Getting Started 8

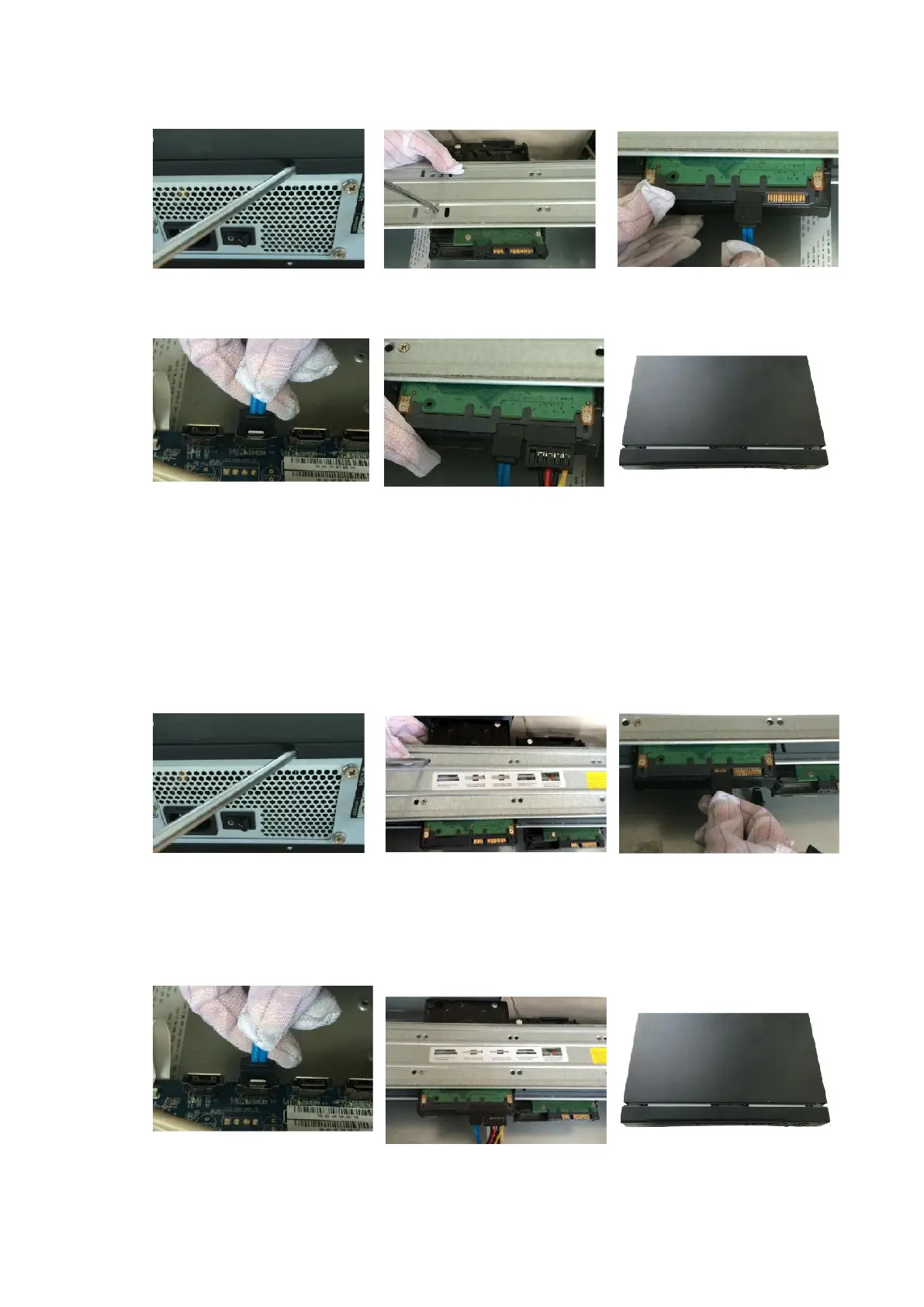

2.2.5 DH-XVR7416L-4KL-X/DH-XVR5432L-X
1. Remove the screws on
cover.
2. Use the screws to fix the
HDD onto the bracket.
3. Connect one end of HDD
cable to the HDD.
4. Connect the other end of
HDD cable to the
mainboard.
5. Use the power cable to
connect HDD and
mainboard.
6. Put back the cover and fix
the screws.
2.2.6 DH-XVR7816S-4KL-X/DH-XVR5832S-X/DH-XVR7816S-4KL-
X-LP
1. Remove the screws on
the cover.
2. Fix the HDD(s) onto the
bracket. Remove the top
bracket if you want to
install HDD to the bottom
bracket.
3. Connect one end of HDD
cable to the HDD.
4. Connect the other end of
HDD cable to the
5. Use the power cable to
connect HDD and
6. Put back the cover and fix
the screws.
