The Grand Tour 28
No.
Port Name
Function
12
VGA video output
Outputs analog video signal. It can connect to the monitor to view
analog video.
13
RS-232 debug
COM.
It is for general COM debug to configure IP address or transfer
transparent COM data.
14
HDMI port
High definition audio and video signal output port. It outputs the
same video source as VGA. It supports 1080P resolution output
and supports mouse operation and control.
Please note when the HDMI output resolution is 4K, the VGA
output stops.
15
USB port
Connects to the external devices such as keyboard, mouse, and
USB storage device.
16
eSATA port
External SATA port which connects to the device with SATA port.
Perform the jumper configuration when connecting HDD.
Table 3-19

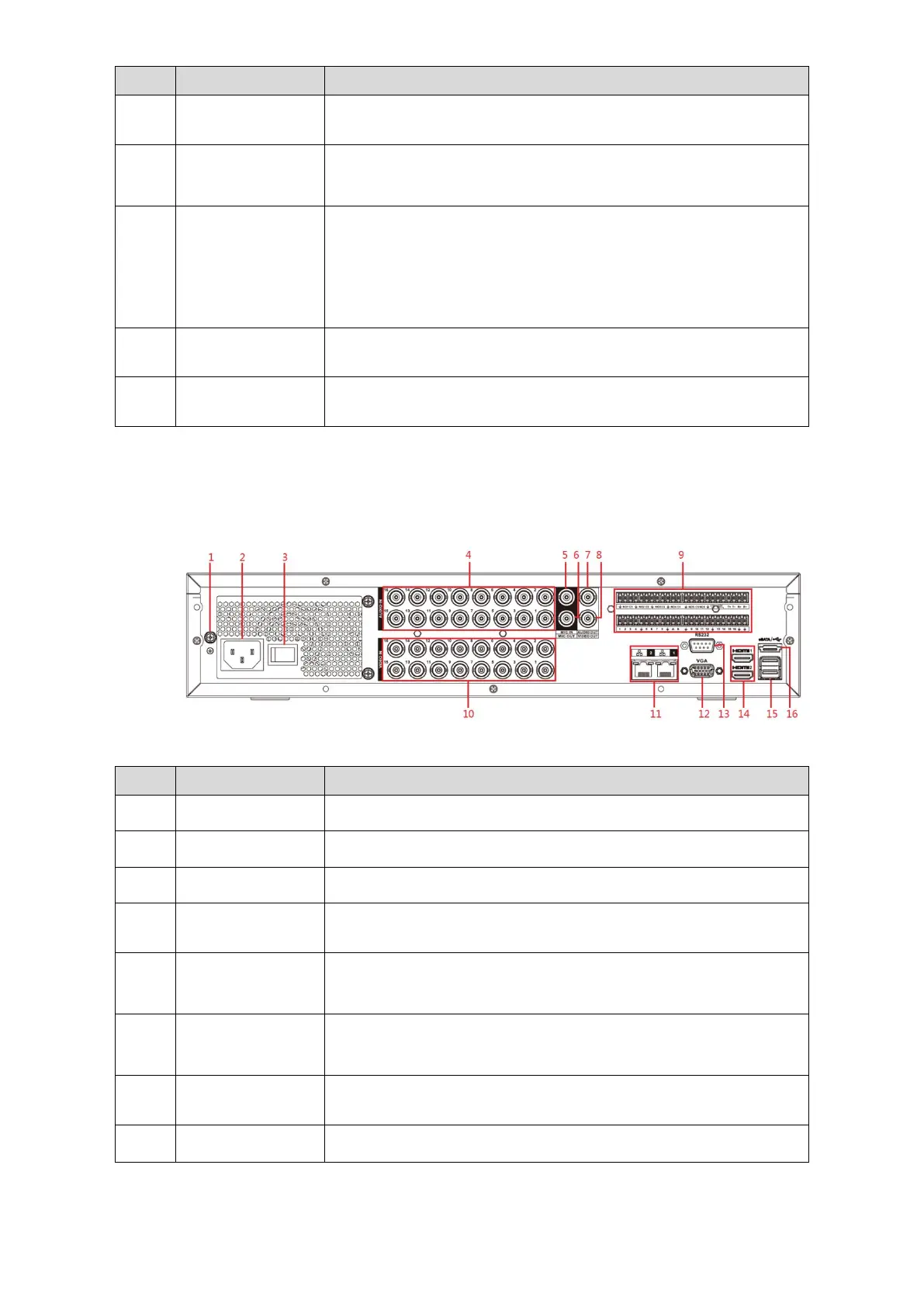

3.2.10 DH-XVR7816S-4KL-X/DH-XVR5832S-X/DH-XVR5816S-X
Figure 3-21
No.
Port Name
Function
1
GND
Ground.
2
Power input port
Inputs power.
3
Power button
Turns on/off the Device.
4
Audio input port
Receives the analog audio signal output from the devices such
as microphone.
5
Audio input port
(MIC IN)
Tow-way talk input port which receives the analog audio signal
output from the devices such as microphone, pickup.
6
Audio output port
(MIC OUT)
Tow-way talk output port which outputs the analog audio signal to
the devices such as the sound box.
7
Audio output port
Outputs the analog audio signal to the devices such as the sound
box.
8
Video output port
Connect to video output devices such as TV.
