Dahua DH-XVR4108C-X User Manual

The Grand Tour 18
No.
Port Name
Function
port.
6
VGA port
Outputs analog video data to the connected display with VGA
port.
7, 8
USB port
Connects to external devices such as USB storage device,
keyboard and mouse.
9
Network port
Connects to Ethernet port.
10
Power input port
Inputs12V DC power.
11
Power output port
Outputs 12V DC power.
12
Ground
Ground terminal.
Table 3-12
3.2.3 DH-XVR4116HS-X/DH-XVR5108HS-X/DH-XVR5116HS-X/DH
-XVR5104HS-4KL-X/DH-XVR5108HS-4KL-X/DH-XVR5104HS-X/
DH-XVR4104HS-X/DH-XVR4108HS-X/DH-XVR5104HS-X1/
DH-XVR4104HS-X1/DH-XVR4108HS-X1

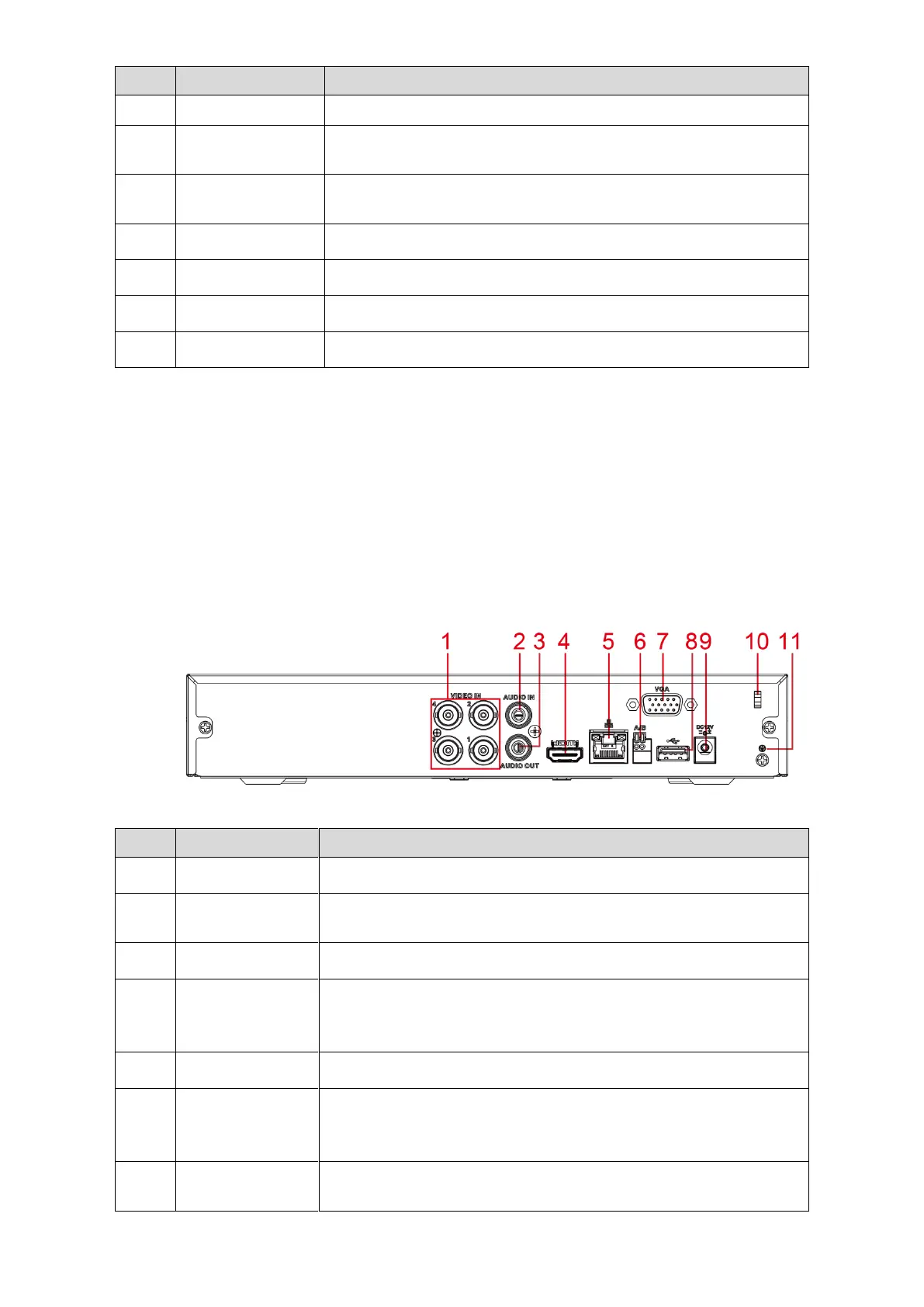

Figure 3-14
No.
Port Name
Function
1
Video input port
Connects to analog camera to input video signal.
2
Audio input port
Receives audio signal output from the devices such as
microphone.
3
Audio output port
Outputs audio signal to the devices such as the sound box.
4
HDMI port
High definition audio and video signal output port.
The port outputs the uncompressed high definition video and
multi-channel audio data to the connected display with HDMI port.
5
Network port
Connects to Ethernet port.
6
RS-485
communication
port
Connects to the control devices such as speed dome PTZ.
RS-485_A port is connected by the cable A and RS-485_B is
connected to the cable B.
7
VGA port
Outputs analog video data to the connected display with VGA
port.
