Dahua DH-XVR4108C-X User Manual

The Grand Tour 34
No.
Port Name
Function
4
HDMI port
High definition audio and video signal output port. It outputs the
same video source as VGA. It supports 4K resolution output and
supports mouse operation and control.
Please note when the HDMI output resolution is 4K, the VGA
output stops.
5
Network port
Connects to Ethernet port.
6
RS-485
communication
port
Connects to the control devices such as speed dome PTZ.
RS-485_A port is connected by the cable A and RS-485_B is
connected to the cable B.
7
USB port
Connects to external devices such as USB storage device,
keyboard and mouse.
8
VGA port
Outputs analog video data to the connected display with VGA
port.
9
Network port
Connects to Ethernet port.
10
Ground terminal.
11
Power input port
Inputs 12V DC power.
12
Power cable
fastener
Use clamp to secure the power cable on the DVR in case there is
any loss.
Table 3-24

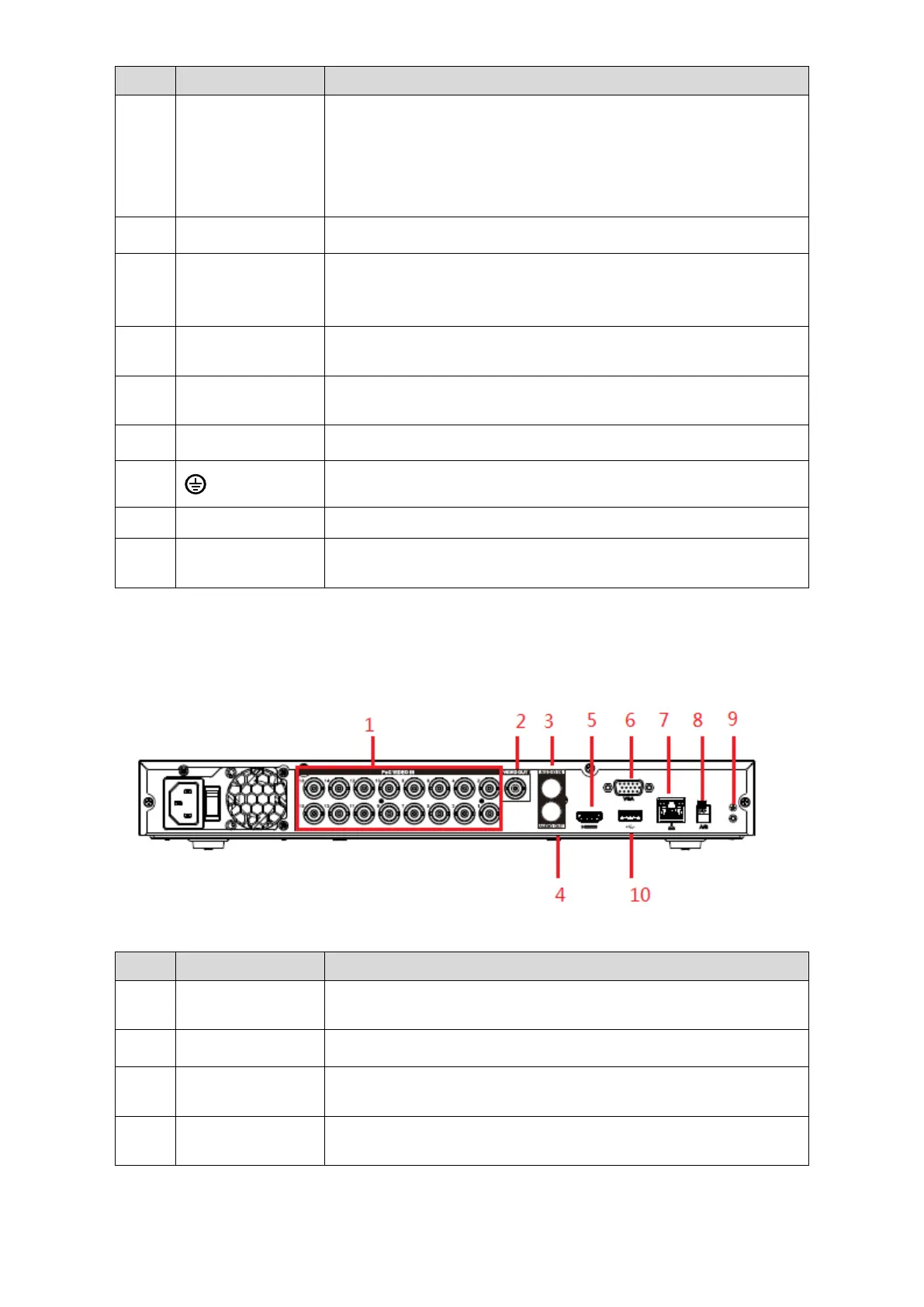

3.2.15 DH-XVR5216AN-X-16P
Figure 3-27
No.
Port Name
Function
1
Video input port
Connect to general analog camera/PoC camera to input video
signal.
2
Video output port
Connects to video output devices such as TV.
3
Audio input port
Receives the analog audio signal output from the devices such
as microphone.
4
Audio output port
Outputs the analog audio signal to the devices such as the sound
box.
