Dahua DH-XVR4108C-X User Manual

The Grand Tour 23
No.
Port Name
Function
10
RS-485
communication port
Connects to the control devices such as speed dome PTZ.
RS-485_A port is connected by the cable A and RS-485_B is
connected to the cable B.
11
Power input port
Inputs power.
12
Ground terminal.
Table 3-16

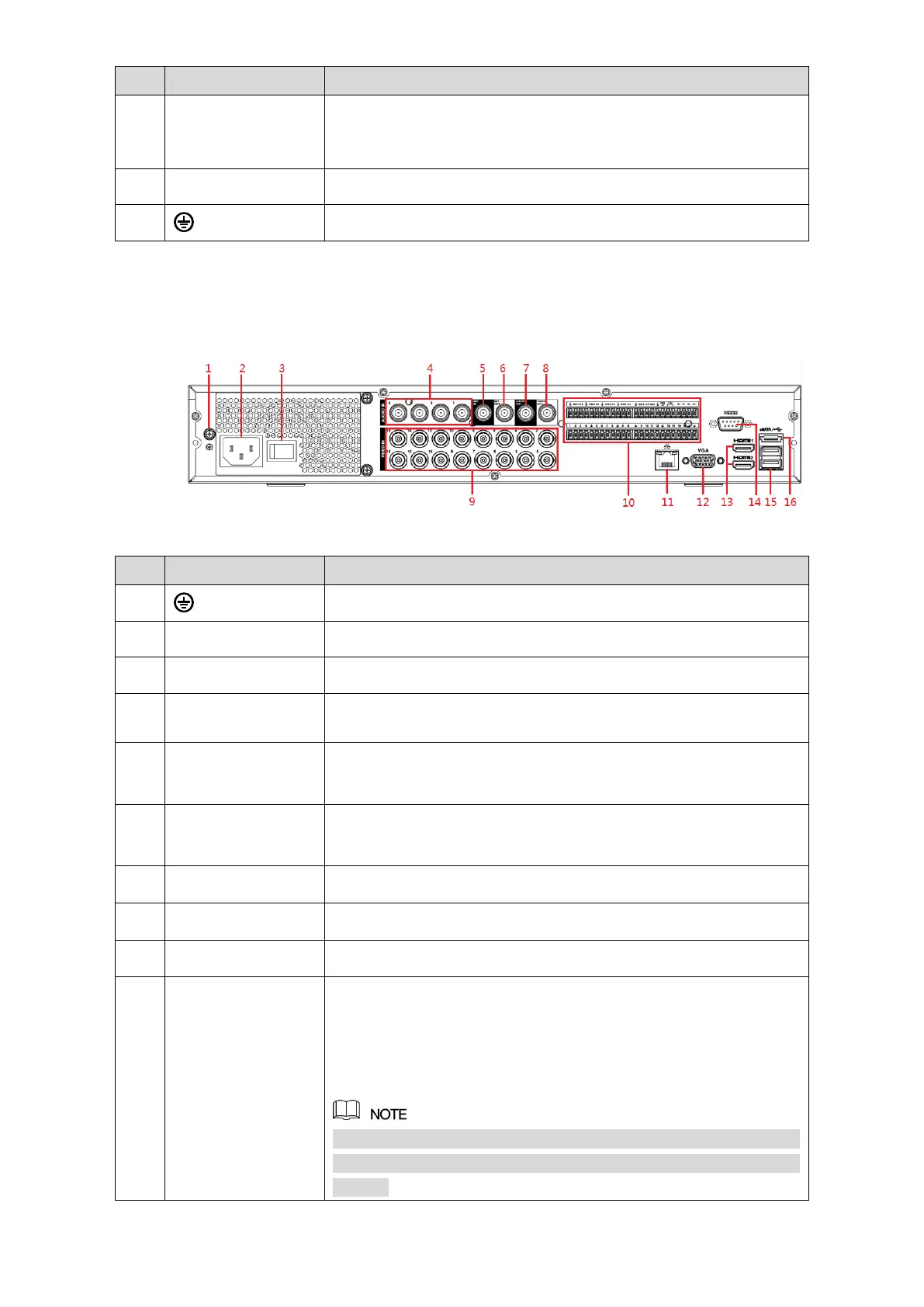

3.2.7 DH-XVR7416L-4KL-X/DH-XVR5432L-X/DH-XVR5416L-X
Figure 3-18
No.
Port Name
Function
1
Ground terminal.
2
Power input port
Inputs power.
3
Power button
Turns on/off the DVR.
4
Audio input port
Receives audio signal output from the devices such as
microphone.
5
Audio input port
(MIC IN)
Tow-way talk input port which receives analog audio signal
output from the devices such as microphone and pickup.
6
Audio output port
(MIC OUT)
Tow-way talk output port which outputs the analog audio signal to
the devices such as the sound box.
7
Audio output port
Outputs audio signal to the devices such as the sound box.
8
Video output port
Connects to video output devices such as TV.
9
Video input port
Connects to analog camera to input video signal.
10
Alarm input port
1–16
Four groups of alarm input ports (Group 1: port 1 to port 4; Group
2: port 5 to port 8; Group 3: port 9 to port 12; Group 4: port 13 to
port 16). These ports receive the signal from the external alarm
source. There are two types: NO (Normally Open) and NC
(Normally Closed).
When your alarm input device is using external power, please
make sure the input device and the DVR connect to the same
ground.
