Dahua DH-XVR4108C-X User Manual

RJ45-RS-232 Connection Cable Definition 343
RJ45 (T568B)
RJ45 (Network cable)
RS-232
Signal Description
4
Blue
2
RXD
5
White and blue
3
TXD
3
White and green
5
GND
Straight Connection

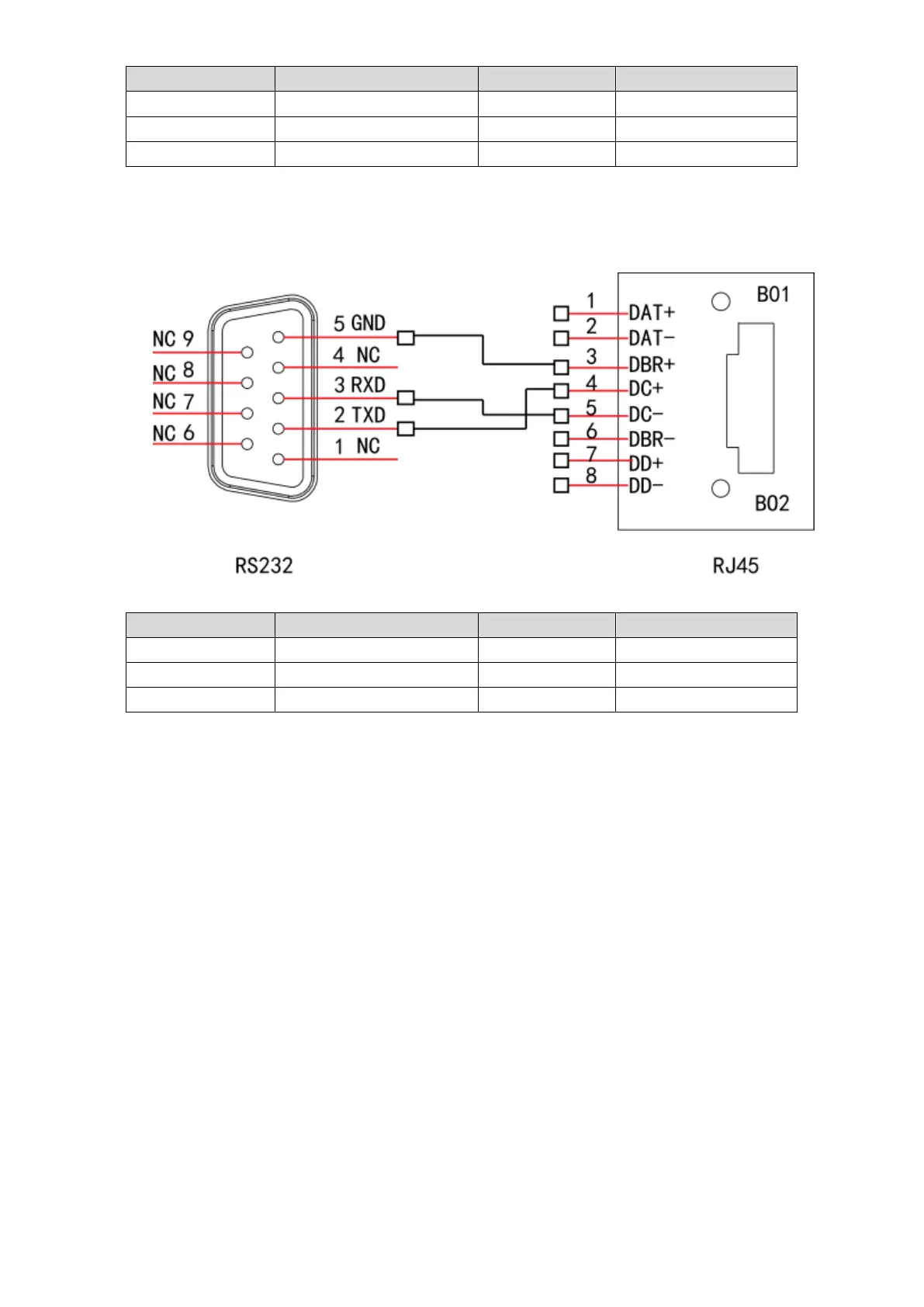

Please refer to the following figure for straight cable connection information.
Please refer to the following table for straight connection information.
RJ45 (T568B)
RJ45 (Network cable)
RS-232
Signal Description
4
Blue
3
RXD
5
White and blue
2
TXD
3
White and green
5
GND
