User’s Manual
5
3 Installation
The following installation figures are for reference only, and the actual product shall prevail.
3.1 Universal Joint Installation
Step 1 Use M6×14 screw to fix the universal joint on the bracket.
Step 2 Use two 1/4-20×14UNC screws to fix the Camera on the universal joint. See Figure
3-1.

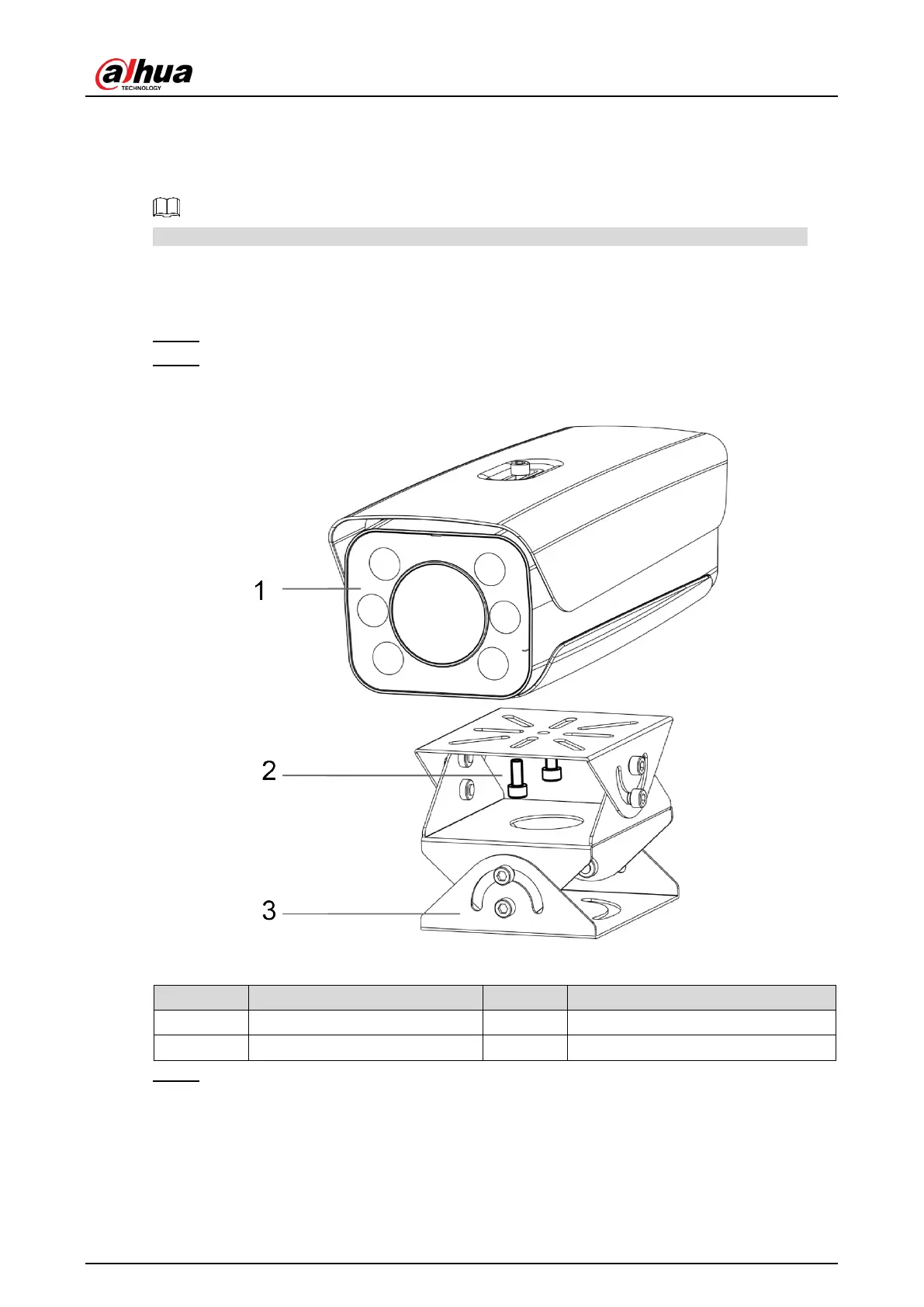

Figure 3-1 Universal joint installation
Table 3-1 Components description
No.
Description
No.
Description
1
Camera
3
Universal joint
2
1/4-20×14UNC screw
—
—
Step 3 Adjust the universal joint and the Camera to proper position.
Installation is completed.
