User’s Manual
6
3.2 Bracket Installation

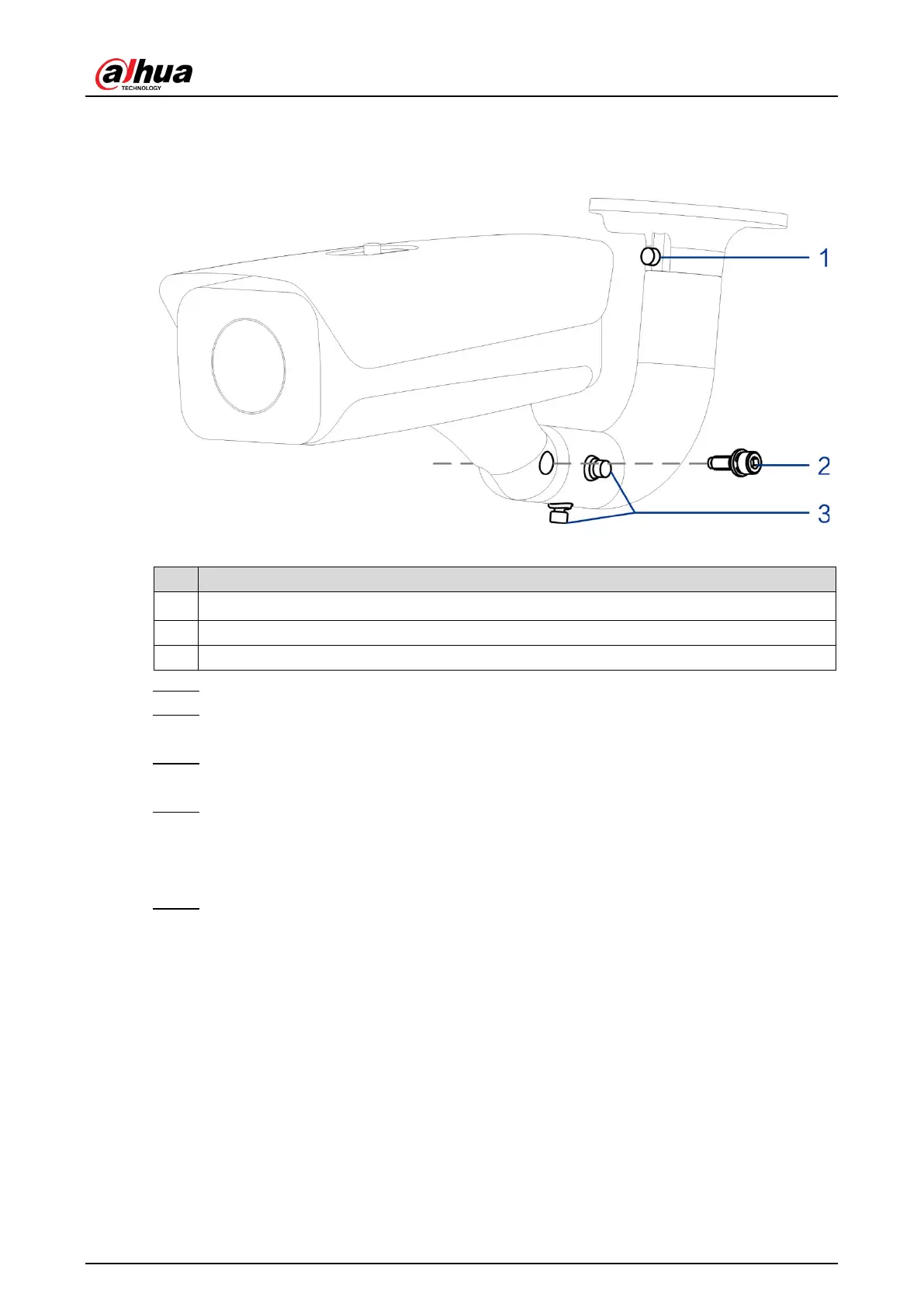

Figure 3-2 Bracket installation
Table 3-2 Bracket installation
1 Adjust the Camera leftward and rightward.
Adjust the Camera upward and downward.
Adjust the Camera horizontally.
Step 1 Loosen the No. 1 and No. 3 screws shown in Figure 3-2.
Step 2 Insert all the camera cables into the bracket, and then pull them out from the bracket
tail.
Step 3 Use a M6×20 screw to fix the Camera and bracket. The screw can be used to adjust
the Camera upward and downward.
Step 4 Adjust the Camera to proper position, and then tighten the screws.
3.3 Spherical Bracket Installation
Step 1 Insert the damping ring and waterproof ring of cable into the bracket housing.
