Dahua DHI-ITC215-PW6M-IRLZF User Manual

User’s Manual
7

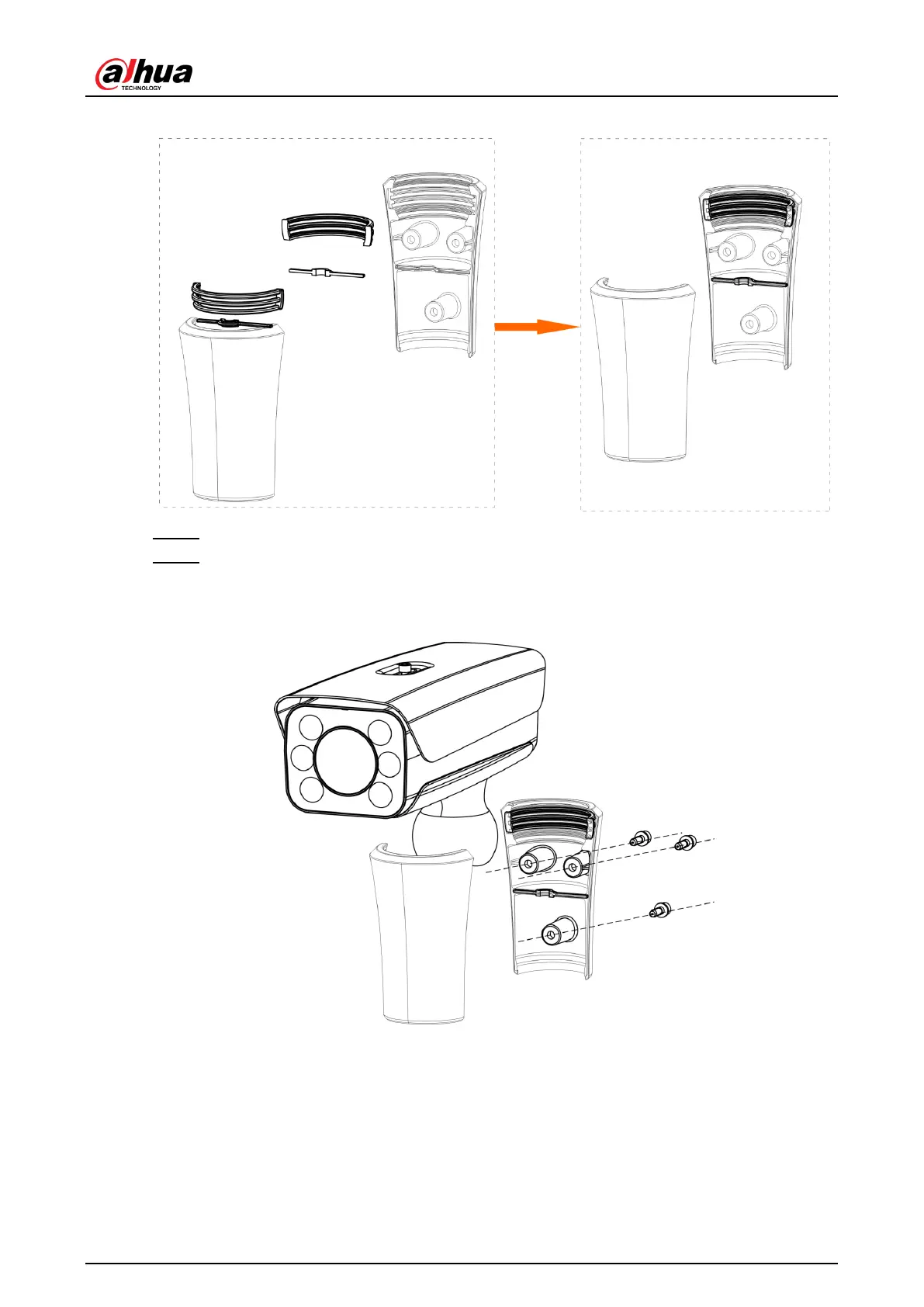

Figure 3-3 Prepare bracket housing
Step 2 Cover the spherical bracket with bracket housing.
Step 3 Use three M6×20 socket head cap screws to fix the bracket housing to the Camera.
See Figure 3-4.
For the illustration after installation, see Figure 3-5.
Figure 3-4 Fix the bracket housing

Dahua DHI-ITC215-PW6M-IRLZF Specifications

General

Brand	Dahua
Model	DHI-ITC215-PW6M-IRLZF
Category	Security Camera
Language	English
